Methods and systems for down-converting a signal
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 26, 2016
Grant Date -
Jan 21, 2016
app pub date -
Jul 31, 2015
filing date -
Oct 21, 1998
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

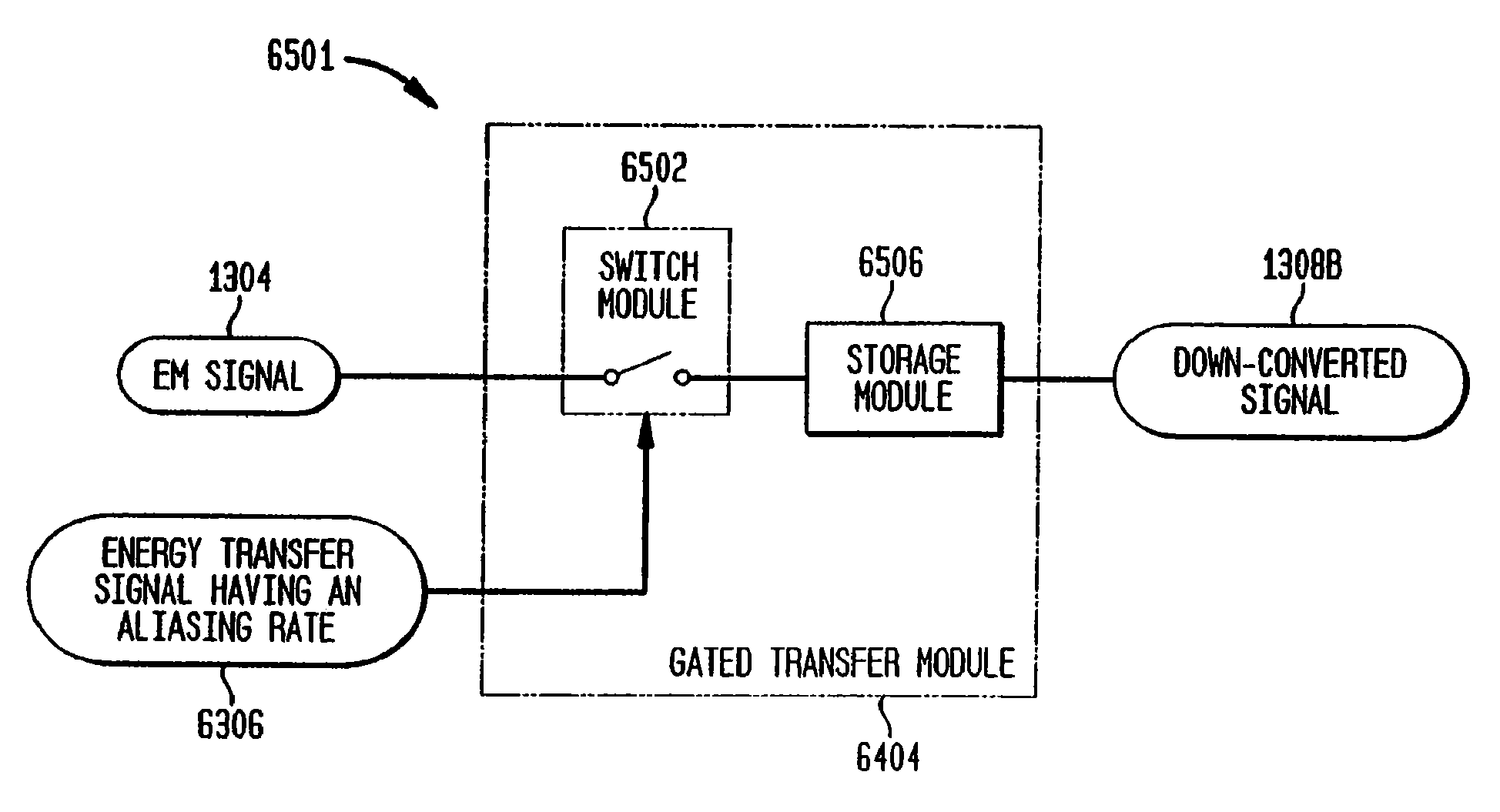

Methods, systems, and apparatuses for down-converting a modulate earner signal to a demodulated baseband signal by sampling the energy of the carrier signal are described herein. Briefly stated, such methods systems, and apparatuses operate by receiving a modulated carrier signal and using pulses with apertures to control a switch so as to (a) transfer energy from the modulated carrier signal and accumulate the transferred energy in a capacitor when the switch is closed during the apertures of the pukes and (b) discharge some of the previously accumulated energy from the capacitor into load circuitry at least when the switch is open. The demodulated baseband signal is generated from (i) accumulating energy transferred to the capacitor each time the switch is closed during the apertures of the pulses, and (ii) discharging some of the previously accumulated energy into the load circuitry each time the switch is opened.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H04L Class
- 33706 Applications Filed
- 25909 Patents Issued To-Date
- 76.87 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04L Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 26, 2027 |
