Multiple sample chromatography using a stochastic injection technique
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 26, 2016
Grant Date -
Jul 23, 2015
app pub date -
Jan 17, 2014
filing date -
Jan 17, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

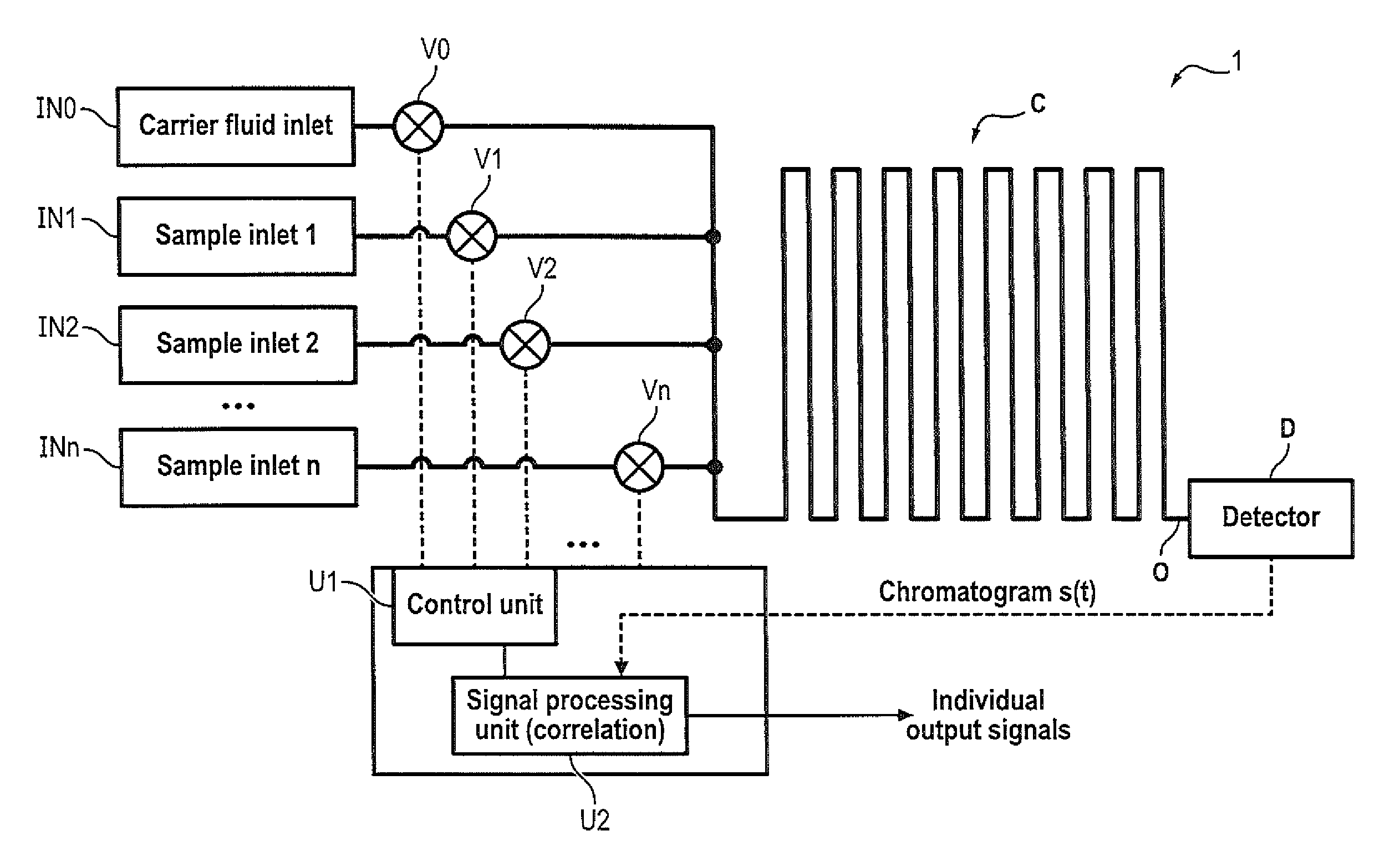

The invention relates to a method for simultaneously analyzing at least two samples using a chromatography device comprising a chromatography column having an inlet and an outlet, and at least one detector placed at the outlet of the chromatography column, the method comprising steps of: injecting fractions of each independent sample at the inlet of the chromatography column, the fractions of each independent sample being injected according to a specific injection timing sequence derived from a pseudo-random binary sequence associated with said independent sample; recording a signal generated by said detector for a period of time at least equal to a duration of the longest of the specific injection timing sequences; cross-correlating the recorded signal and a derived correlation function, said derived correlation function being derived from the pseudo-random binary sequence associated with one of the independent samples, so as to obtain an individual correlogram signal specific to said independent sample; and analyzing data of interest of the individual correlogram signal so as to obtain an output signal indicative of a composition of the sample.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G01N Class
- 31.44 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 26, 2027 |
