Three-dimensional hot spot localization
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 26, 2016
Grant Date -
Nov 27, 2014
app pub date -
Jun 2, 2014
filing date -
Jun 8, 2010
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

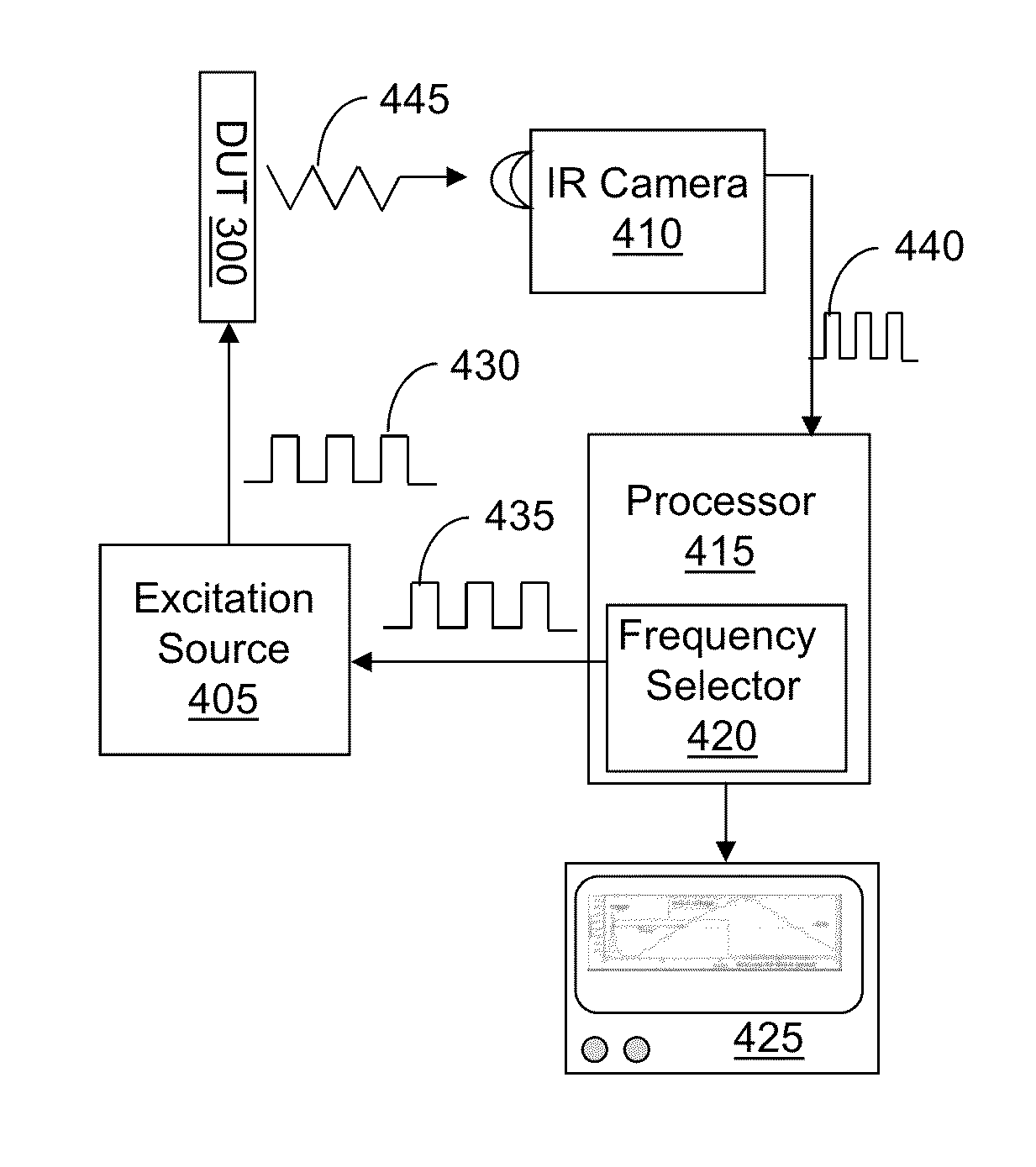

A non-destructive approach for the 3D localization of buried hot spots in electronic device architectures by use of Lock-in Thermography (LIT). The 3D analysis is based on the principles of thermal wave propagation through different material layers and the resulting phase shift/thermal time delay. With more complex multi level stacked die architectures it is necessary to acquire multiple LIT results at different excitation frequencies for precise hot spot depth localization. Additionally, the use of multiple time-resolved thermal waveforms, measured in a minimized field of view on top of the hot spot location, can be used to speed up the data acquisition. The shape of the resulting waveforms can be analyzed to further increase the detection accuracy and confidence level.
