Padlock
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 26, 2016
Grant Date -
Oct 23, 2014
app pub date -
Apr 21, 2014
filing date -
Apr 22, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

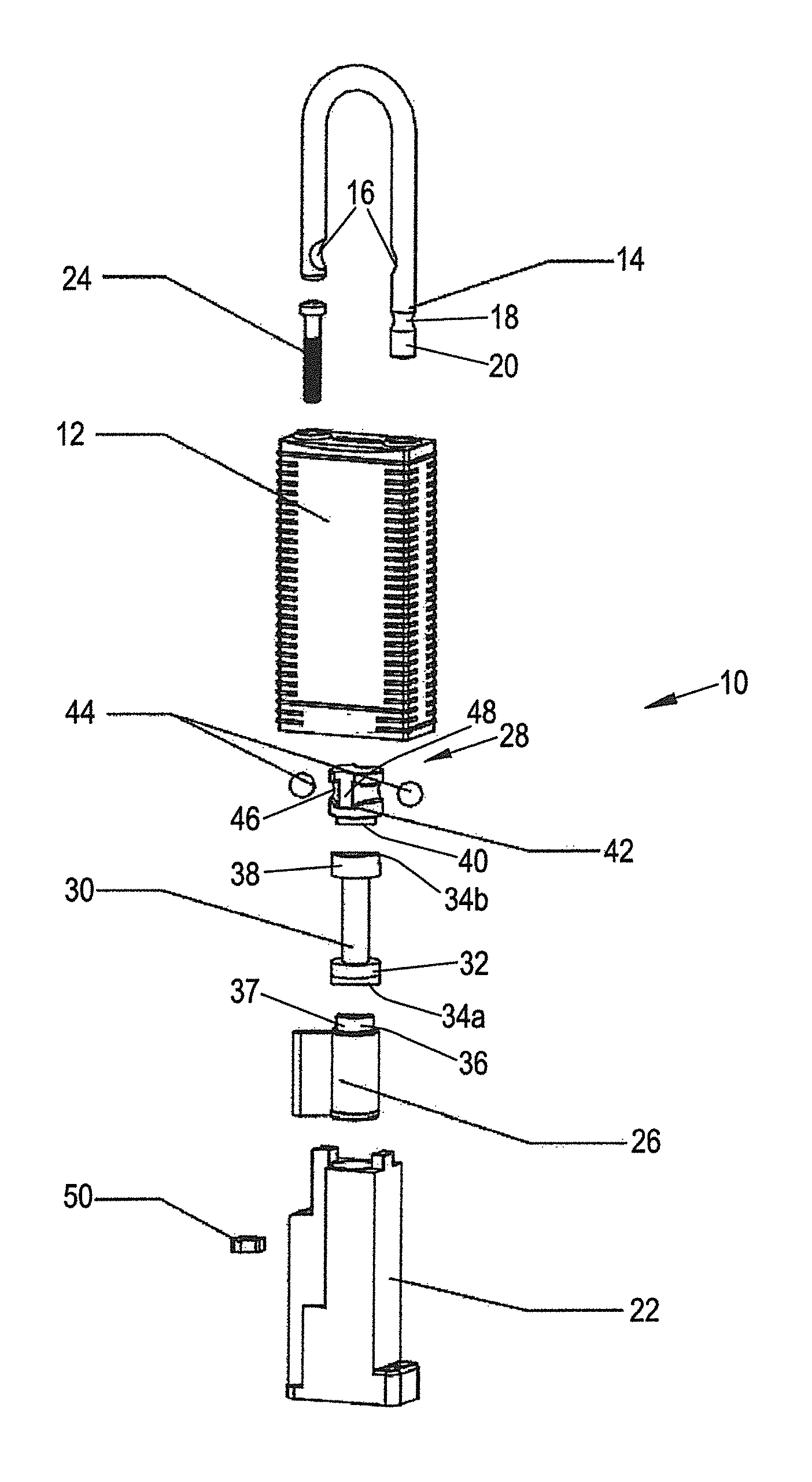

A padlock for securing a switch of an industrial plant comprises a lock body and a hoop which is displaceably held at the lock body, wherein the lock body has a lock housing composed of plastic, a lock cylinder having a rotatable cylinder core, and a rotatable latching member, wherein the cylinder core and the latching member are rotationally fixedly coupled to one another by means of a coupling element and wherein the latching member is rotatable from a release position into a latching position to lock the hoop at the lock body. The padlock is characterized in that the coupling element has at least one first bearing section, one second bearing section and therebetween a shaft section between the latching member and the lock cylinder, said shaft section connecting the first bearing section to the second bearing section and having a smaller diameter than the two bearing sections.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- E05B Class
- 12.50 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 26, 2027 |
