Spring unit and slide mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 19, 2016
Grant Date -
Dec 25, 2014
app pub date -
Jan 24, 2013
filing date -
Jan 31, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

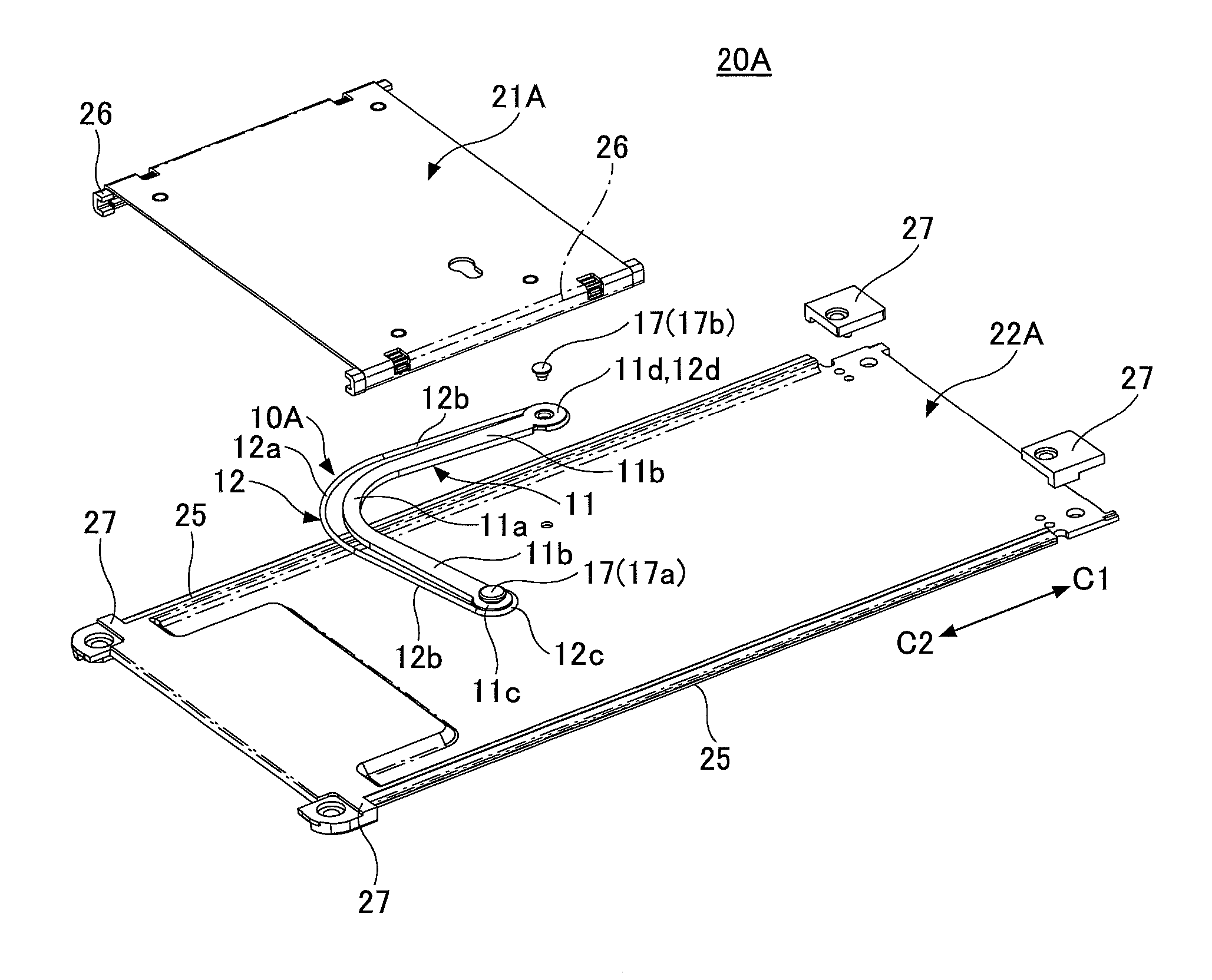

A spring unit including a resin spring that is made of a resin, has a structure having a single beam, and has a resin spring curved part between a pair of resin spring end parts; and a metallic spring that is made of a metallic wire and has a metallic spring curved part between a pair of metallic spring end parts, wherein each of the metallic spring end parts is attached to each of the resin spring end parts, wherein, in a state where each of the metallic spring end parts is attached to each of the resin spring end parts, the resin spring and the metallic spring are positioned on a same plane and are mutually separated at parts other than the resin spring end parts and the metallic spring end parts.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04M Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 19, 2027 |
