Exposing printing plates using light emitting diodes
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 19, 2016
Issued Date -
N/A
app pub date -
Feb 19, 2013
filing date -
May 8, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

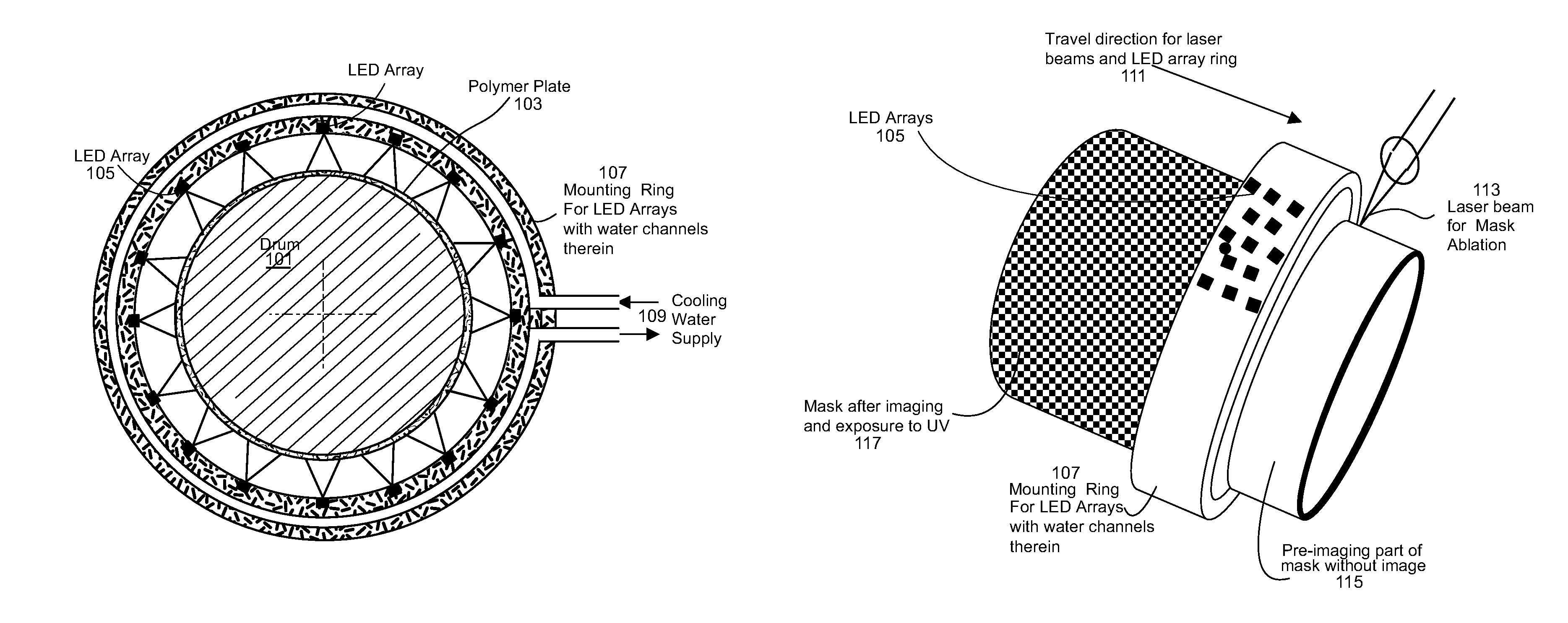

An apparatus comprises: (a) a rotatable drum configured to have a UV-curable printing plate with an ablatable layer thereon, placed thereon; (b) at least one laser beam to image the plate on the drum by ablating some of the ablatable layer according to image data to form an imaged plate; (c) an unloading area onto which a plate is movable when unloaded; and (d) a plurality of UV LEDs configured to cure UV-curable material on at least an imaged portion of the plate during the imaging process, such that imaging of one part of the plate and curing of an imaged portion of the plate occur simultaneously. In another embodiment, the plurality of LEDs are to apply UV radiation to the back of the UV-curable plate or to both the front and back of the UV-curable plate during or after the unloading of the imaged plate.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B41M Class
- 377 Applications Filed
- 352 Patents Issued To-Date
- 93.37 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B41M Class
- 28.67 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 19, 2027 |
