Method of recovering a bonding apparatus from a bonding failure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 19, 2016
Grant Date -
Jul 18, 2013
app pub date -
Jan 13, 2012
filing date -
Jan 13, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

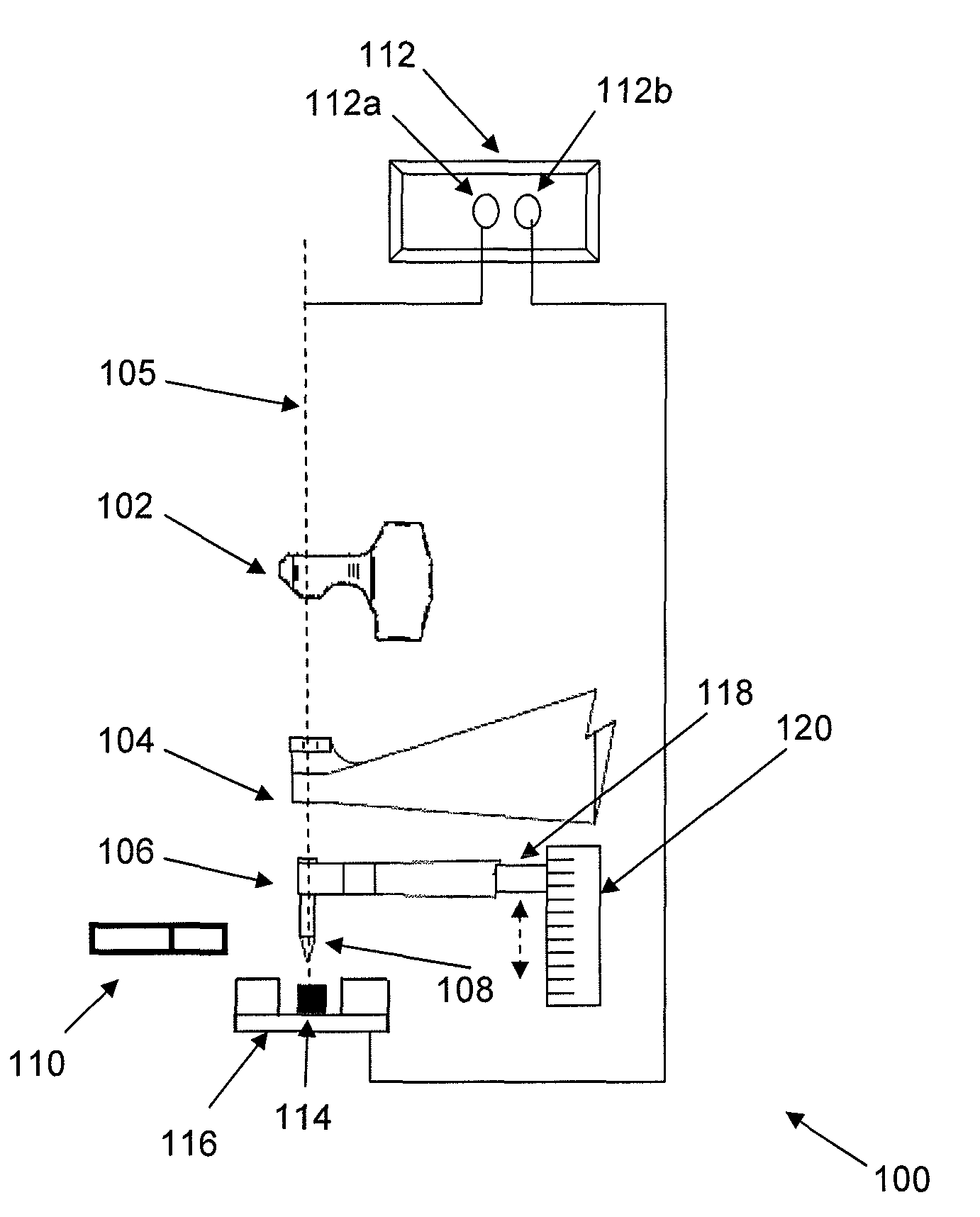

A method of recovering a bonding apparatus from a bonding failure to resume a normal operating state for semiconductor chip fabrication is disclosed. The bonding apparatus comprises: i) a bonding tool for bonding a wire between a semiconductor chip and a substrate; and ii) a position sensor. Specifically, the method comprises the steps of: a) the position sensor determining a position of the bonding tool when the bonding tool contacts a surface to bond the wire to the substrate; b) the bonding apparatus detecting a bonding failure caused by detachment of the semiconductor from the substrate based on the position of the bonding tool; and c) the bonding apparatus detaching the semiconductor chip from the wire.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H01L Class
- 13.47 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 19, 2027 |
