Low-noise voltage-controlled oscillator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 12, 2016
Grant Date -
Aug 27, 2015
app pub date -
Mar 12, 2013
filing date -
Sep 21, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

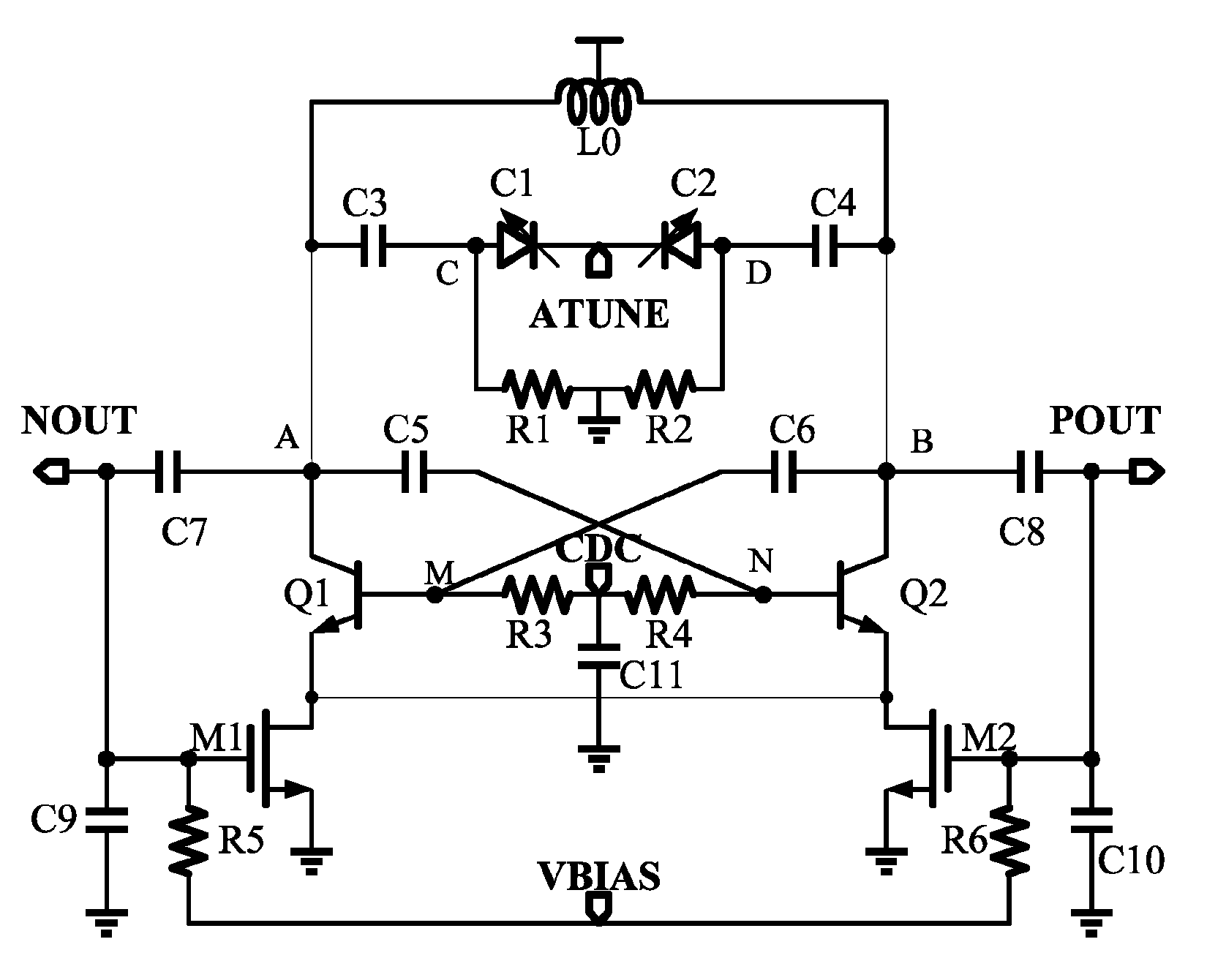

A low-noise and big tuning range voltage-controlled oscillator. Wherein a current source circuit is used for generating working current of the voltage-controlled oscillator, a resonance circuit is used for generating an oscillating signal of the voltage-controlled oscillator, the resonance circuit is an inductance and capacitance type resonance circuit, wherein capacitance adopts a metal oxide semiconductor (MOS) capacitive reactance tube or a reverse diode to increase the tuning range of the circuit, a negative resistance circuit is used for generating negative resistance to counteract positive resistance generated by the resonance circuit, and a feedback circuit is used for feeding back the oscillating signal generated by the resonance circuit to the current source circuit to add a new current to the current source.
