Coin counting apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 12, 2016
Grant Date -
Aug 27, 2015
app pub date -
Feb 20, 2015
filing date -
Feb 24, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

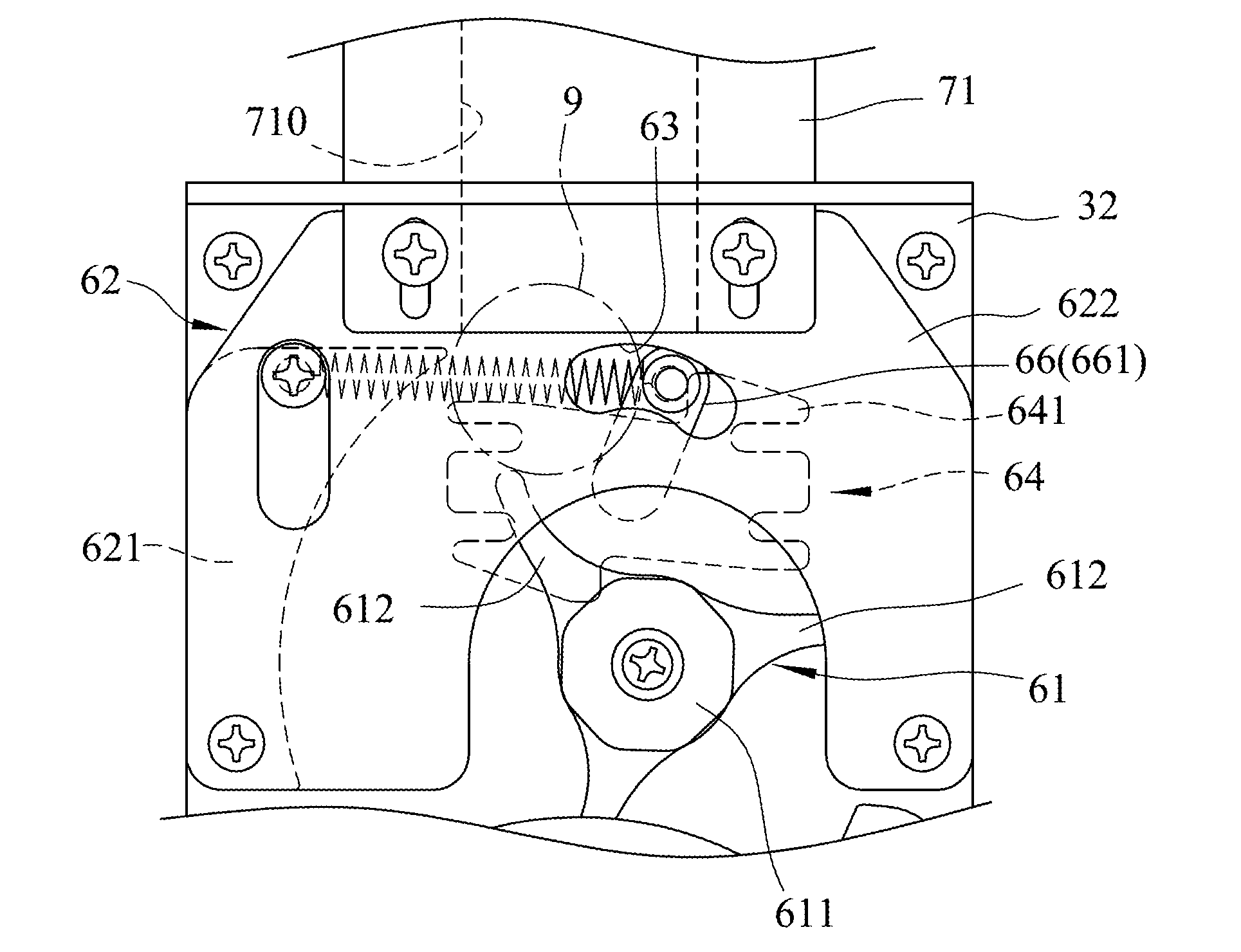

A coin counting apparatus includes a mounting unit with a base plate, and a guiding unit connected to the mounting unit. The guiding unit includes a guiding member connected to the base plate, a cover member cooperating with the base plate to define a guiding space, an adjusting plate connected to the base plate, a positioning bolt connected to a pivotable swing arm and slidable in a guidance sliding groove of the cover member and a base sliding groove of the base plate, and two fastener members fastening the adjusting plate to the base plate. The adjusting plate is movable relative to the base plate to cover a portion of the base sliding groove so that a range of the sliding movement of the positioning bolt is adjustable.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G07D Class
- 266 Applications Filed
- 207 Patents Issued To-Date
- 77.82 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G07D Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 12, 2027 |
