Device for the hardware detection of local extremes in an image
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 12, 2016
Grant Date -
Oct 29, 2015
app pub date -
Oct 8, 2013
filing date -
Oct 8, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

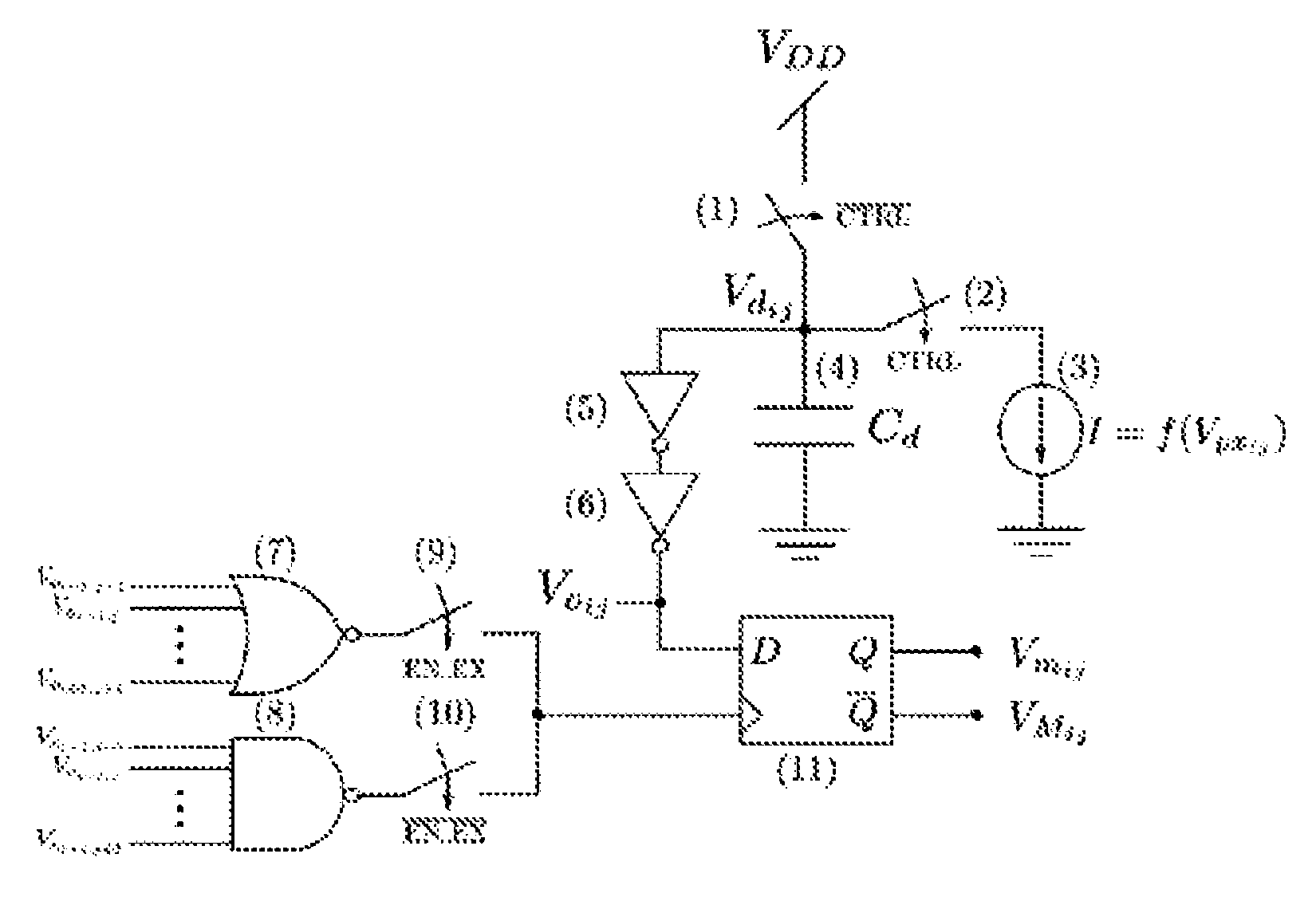

A device and method for the hardware detection of local edges in an image, comprised of a plurality of elemental cells for mixed signal processing, locally interconnected with each other, comprising in each cell a first switch configured to enable the pre-charging of a condenser at the supply voltage; and where once said condenser is pre-charged, it discharges via a second switch connected to a power source which varies in a monotonically increasing manner with the analog voltage representing the value of the pixel concerned; and where the value of the pixel is compared asynchronously with the neighboring pixels of the neighboring cells via two inverters, a digital NOR gate, a digital NAND gate, a third and fourth switch and a memory feature to store the result.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G06T Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 12, 2027 |
