Apparatus and method for manufacturing a touch screen panel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 12, 2016
Grant Date -
May 15, 2014
app pub date -
Jul 19, 2012
filing date -
Jul 21, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

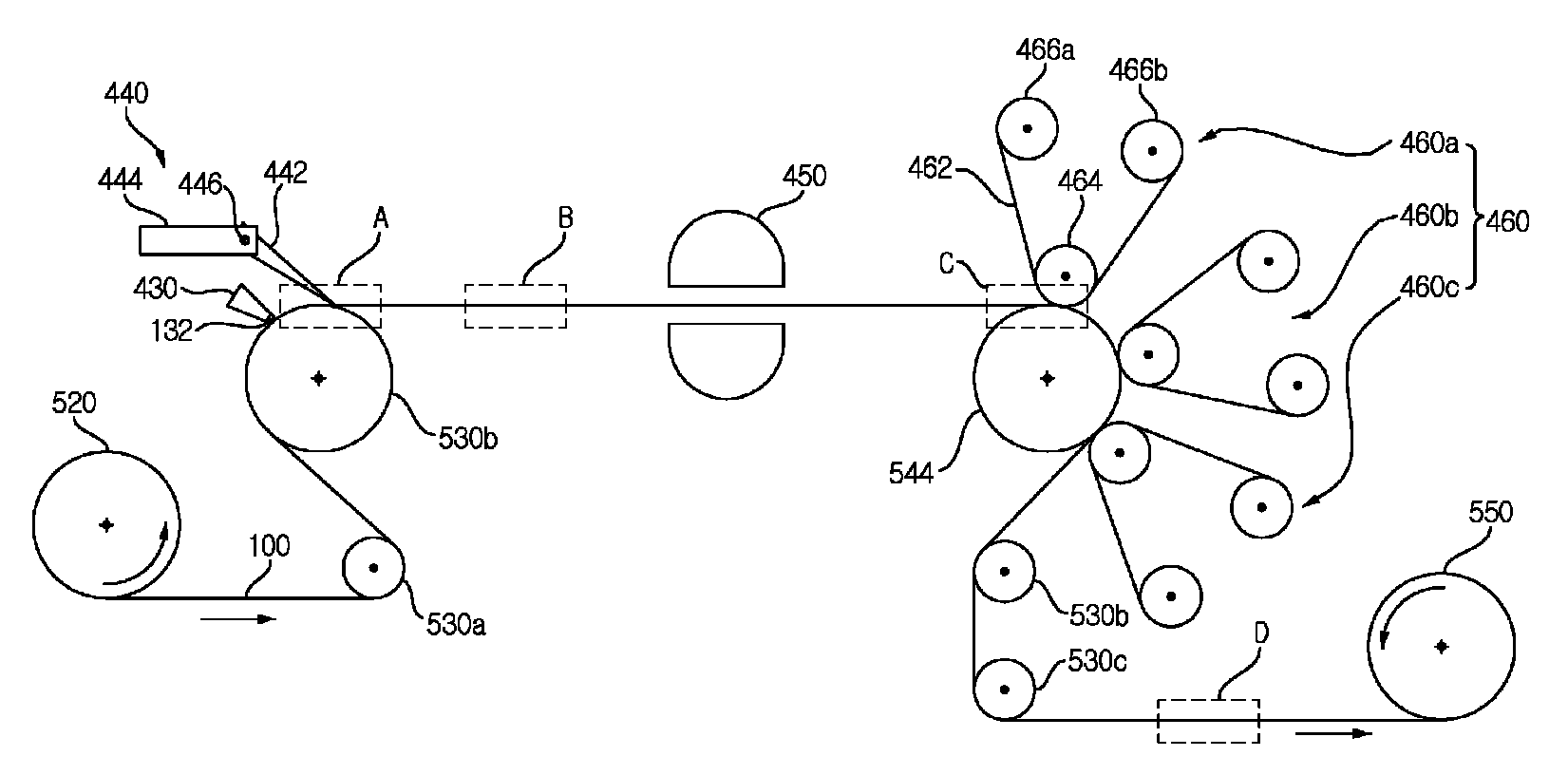

The apparatus for manufacturing the touch screen panel according to the present invention includes: a first roll by which a wound film is unwound; a second roll around which a film having an electrode pattern is wound; a guide roll disposed between the first and second rolls to guide the transfer of the film; a resin applying part applying a resin on the film to form a resin layer; a pattern molding part including a mold having a relief pattern and pressing the mold onto the resin layer to form an intaglio pattern on the resin layer; an electrode material applying part applying an electrode material on a surface of the resin; an electrode material sweeping part removing the electrode material from the surface of the resin layer; and a hardening part hardening the electrode material filled in the intaglio pattern of the resin surface.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B05C Class
- 565 Applications Filed
- 339 Patents Issued To-Date
- 60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B05C Class
- 24.34 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 12, 2027 |
