Wide band clear air scatter doppler radar
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 12, 2016
Grant Date -
Dec 5, 2013
app pub date -
Mar 13, 2013
filing date -
May 31, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

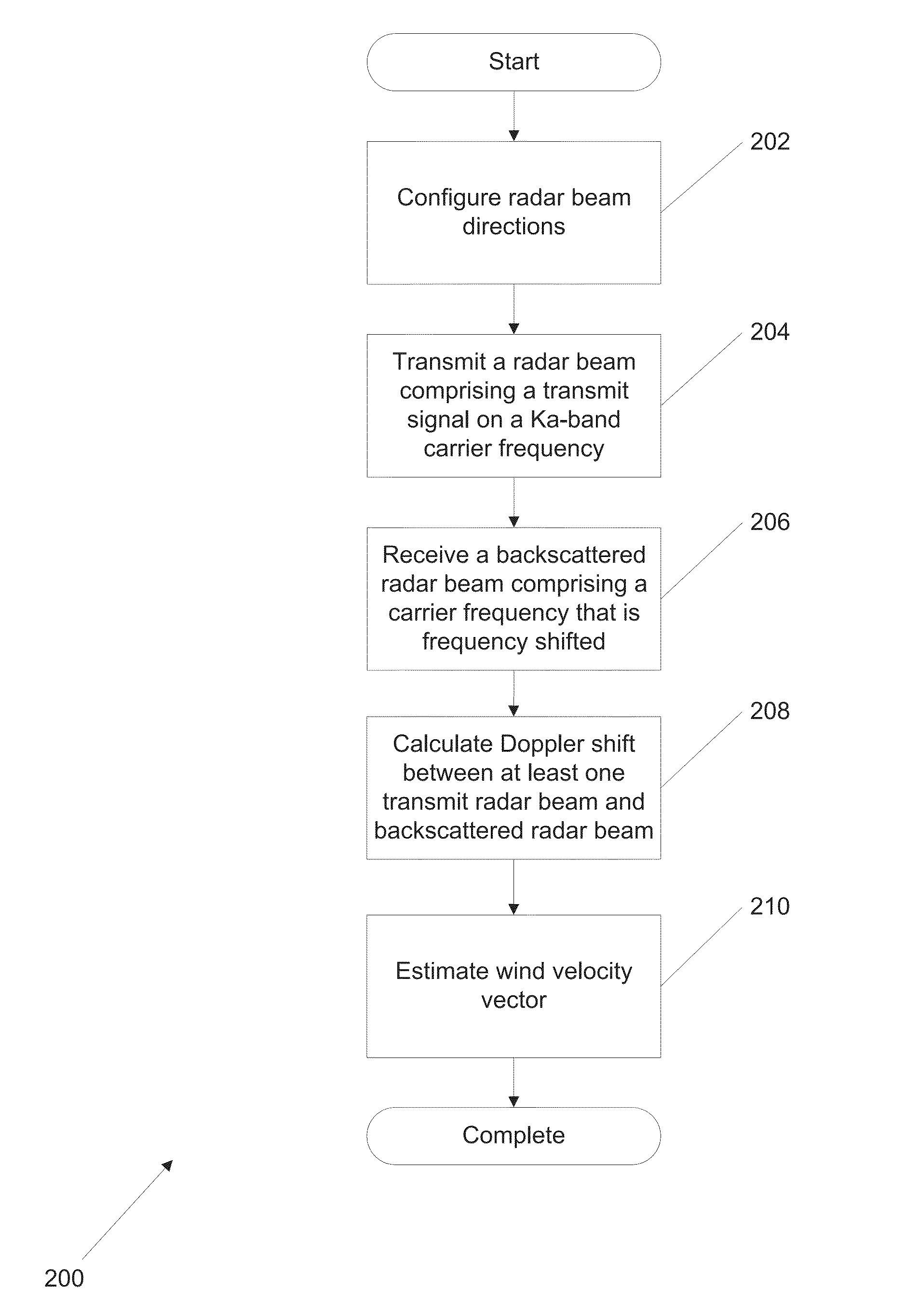

Systems and methods for measuring wind speed and direction in clear air conditions using a wide band Doppler radar in accordance with embodiments of the invention are disclosed. In one embodiment of the invention, a wide band Doppler radar system includes an antenna assembly includes at least one transmit antenna and at least one receive antenna; a transceiver connected to the antenna assembly configured to transmit a radar beam includes a transmit signal on a Ka-band carrier frequency and receive a backscattered radar beam includes a carrier frequency that is frequency shifted relative to the transmitted Ka-band carrier frequency of the backscattered radar beam; a data acquisition system connected to the transceiver configured to estimate a wind velocity vector by calculating a Doppler shift between at least one transmitted radar beam and at least one received backscattered radar beam.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- G01S Class
- 9.36 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 12, 2027 |
