Printing assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 12, 2016
Grant Date -
Jan 7, 2016
app pub date -
Sep 17, 2015
filing date -
Jul 18, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

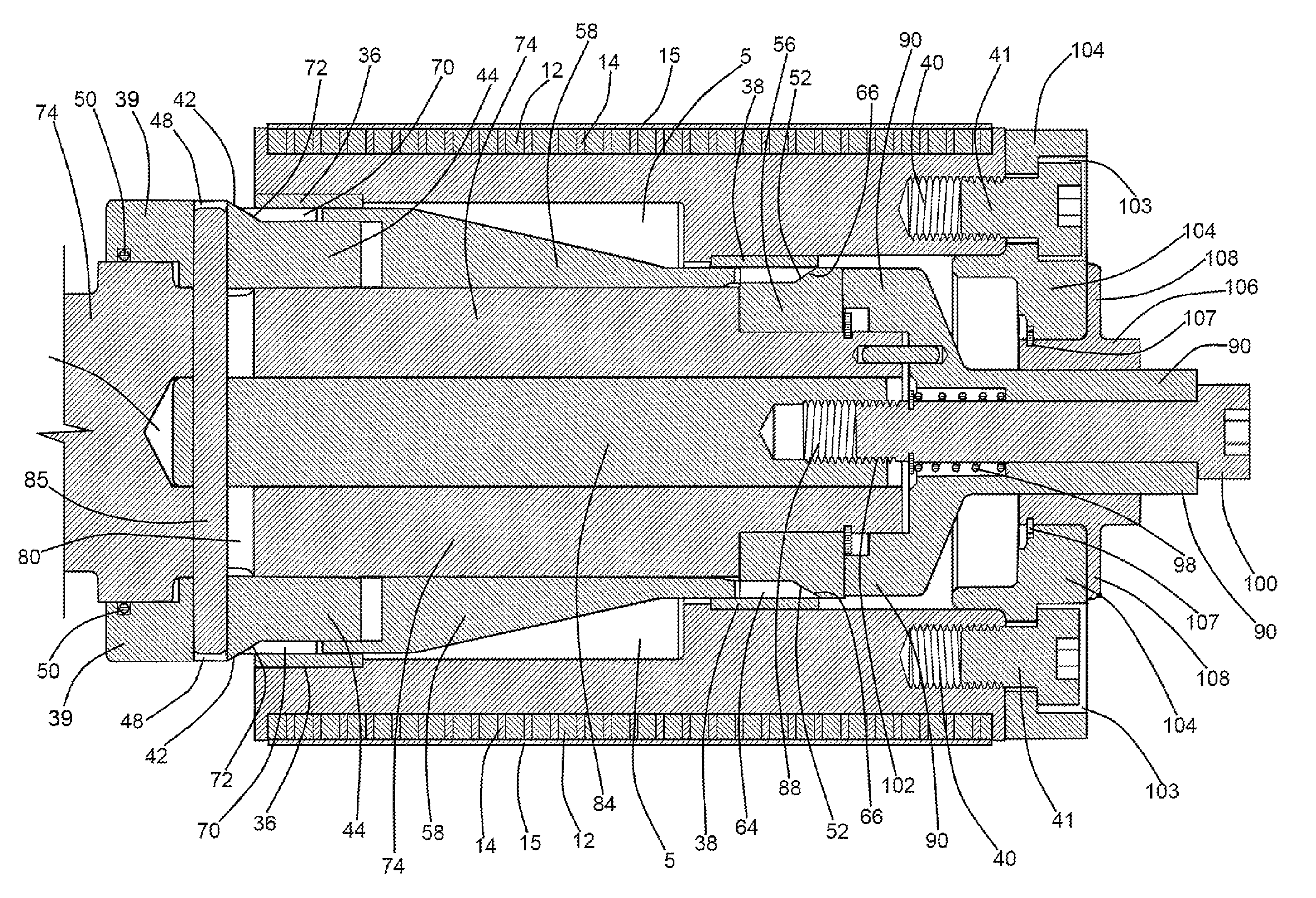

A printing assembly incorporating a clamping annulus having axial and oppositely axial ends, the clamping annulus's axial and oppositely axial ends having outside diameters, the axial end's outside diameter having an excess dimension defining a guide sleeve receiving space; a tiered clamping sleeve received within the clamping annulus, the tiered clamping sleeve having chamfered axial and oppositely axial ends; axial and oppositely axial jaw faces fitted for sloped engagements with the tiered clamping sleeve's ends; axial and oppositely axial jaws operatively connected to the axial and oppositely axial jaw faces, the axial jaw including an oppositely axially extending guide sleeve; an axle extending through the tiered clamping sleeve; and a screw mounted to the axle, the screw being adapted for pressing the axial and oppositely axial jaw faces against the tiered clamping sleeve's ends, and for radially outwardly wedging the ends toward the clamping annulus's tiered circumferential end.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B41F Class
- 278 Applications Filed
- 225 Patents Issued To-Date
- 80.94 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B41F Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 12, 2027 |
