Multi-band antenna for wireless communication
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 5, 2016
Grant Date -
Mar 27, 2014
app pub date -
Sep 21, 2012
filing date -
Sep 21, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

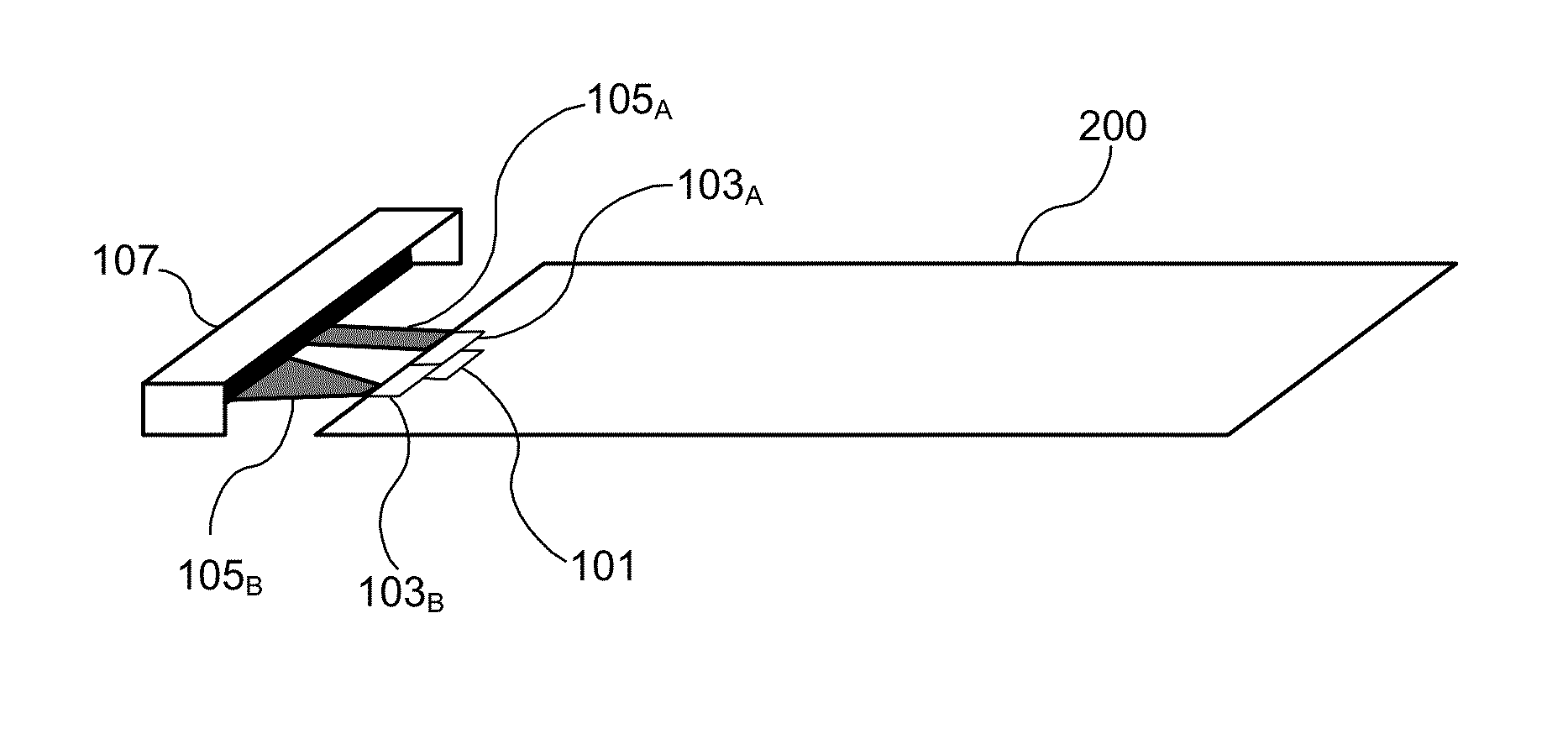

A multi-band antenna includes a ground plane, a single antenna element, a frequency multiplexing circuit and at least two feeding strips coupled between the frequency multiplexing circuit and the single antenna element. Furthermore, the feeding of the antenna is arranged by one or more feeding points arranged between the ground plane and the frequency multiplexing circuit. According to first implementation one feeding point is arranged for at least two antenna branches. The signal fed into the feeding point is multiplexed by the multiplexing circuit to the antenna branches. According to at least one other implementation a dedicated feeding point is arranged for each of the antenna branches. At the same time the isolation of the frequencies between the different branches is arranged. This can be achieved e.g. by a multiplexing circuit. Moreover, impedance of the antenna branches can be matched with matching circuitry.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01Q Class
- 9.22 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 5, 2027 |
