Frequency domain signal processor for close talking differential microphone array
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 5, 2016
Grant Date -
May 16, 2013
app pub date -
Jan 4, 2013
filing date -
Mar 9, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

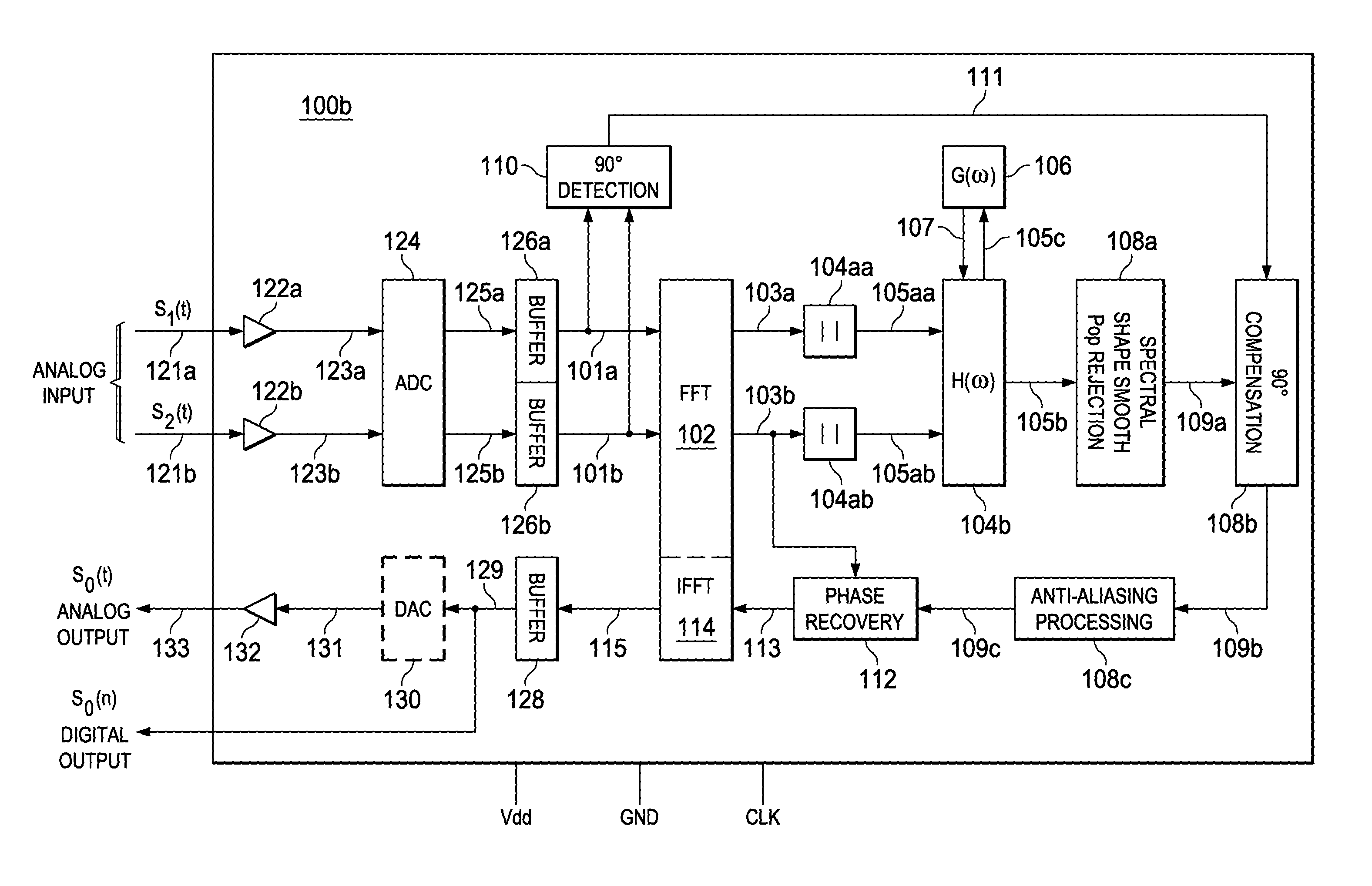

A system and method for processing close talking differential microphone array (CTDMA) signals in which incoming microphone signals are transformed from time domain signals to frequency domain signals having separable magnitude and phase information. Processing of the frequency domain signals is performed using the magnitude information, following which phase information is reintroduced using phase information of one of the original frequency domain signals. As a result, high pass filtering effects of conventional differential signal processing of CTDMA signals are substantially avoided.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2013 Application Filing Year
- H04M Class
- 4233 Applications Filed
- 3996 Patents Issued To-Date
- 94.41 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04M Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 5, 2027 |
