Foreign-object offshore processing system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 5, 2016
Grant Date -
Jan 2, 2014
app pub date -
Mar 2, 2011
filing date -
Mar 2, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

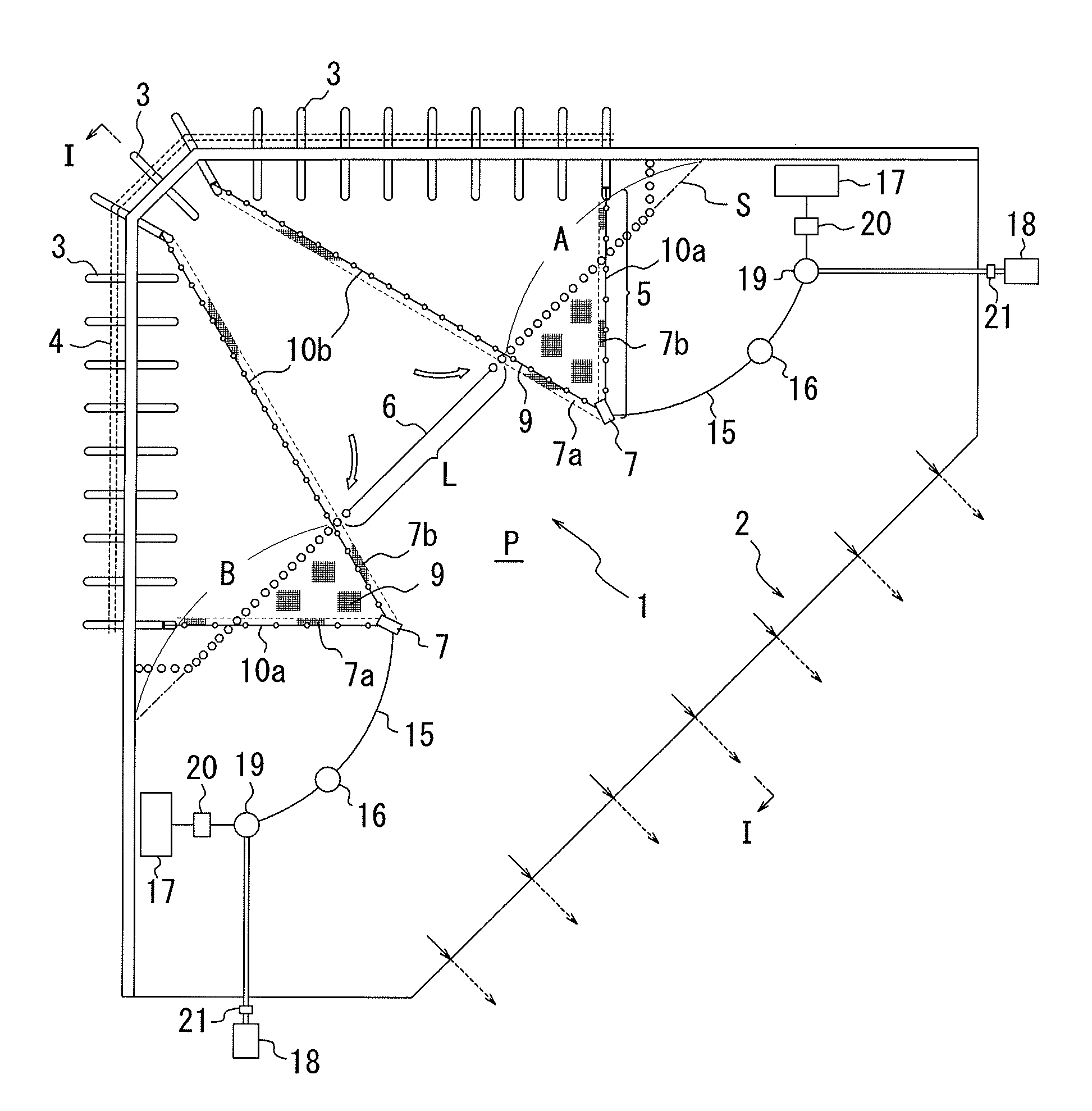

Provided is foreign-object offshore processing system, including foreign-object inflow prevention devices configured to prevent inflow of foreign object into water intake and provided at interval. Each device includes: collecting pontoon serving as inlet of foreign object and provided to float on sea surface of pool defined by curtain wall, the pool being for drawing cooling sea water from sea toward water intake; bottom net spreading toward sea bottom on upstream side of water intake channel in triangular shape with collecting pontoon as vertex; longitudinal net fixed to two floating chains in suspended manner to spread out in surface area of sea, the two floating chains extending on sea surface from collecting pontoon in correspondence with two sides extending from vertex of triangular shape forming bottom net; and lateral net spreading between bottom net and at least portion of longitudinal net, wherein horizontal net cover covers interval between adjacent devices.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- E03B Class
- 168 Applications Filed
- 101 Patents Issued To-Date
- 60.12 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E03B Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 5, 2027 |
