System for aiding horseback riders in maintaining balance
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 29, 2016
Issued Date -
N/A
app pub date -
Aug 6, 2012
filing date -
Aug 5, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

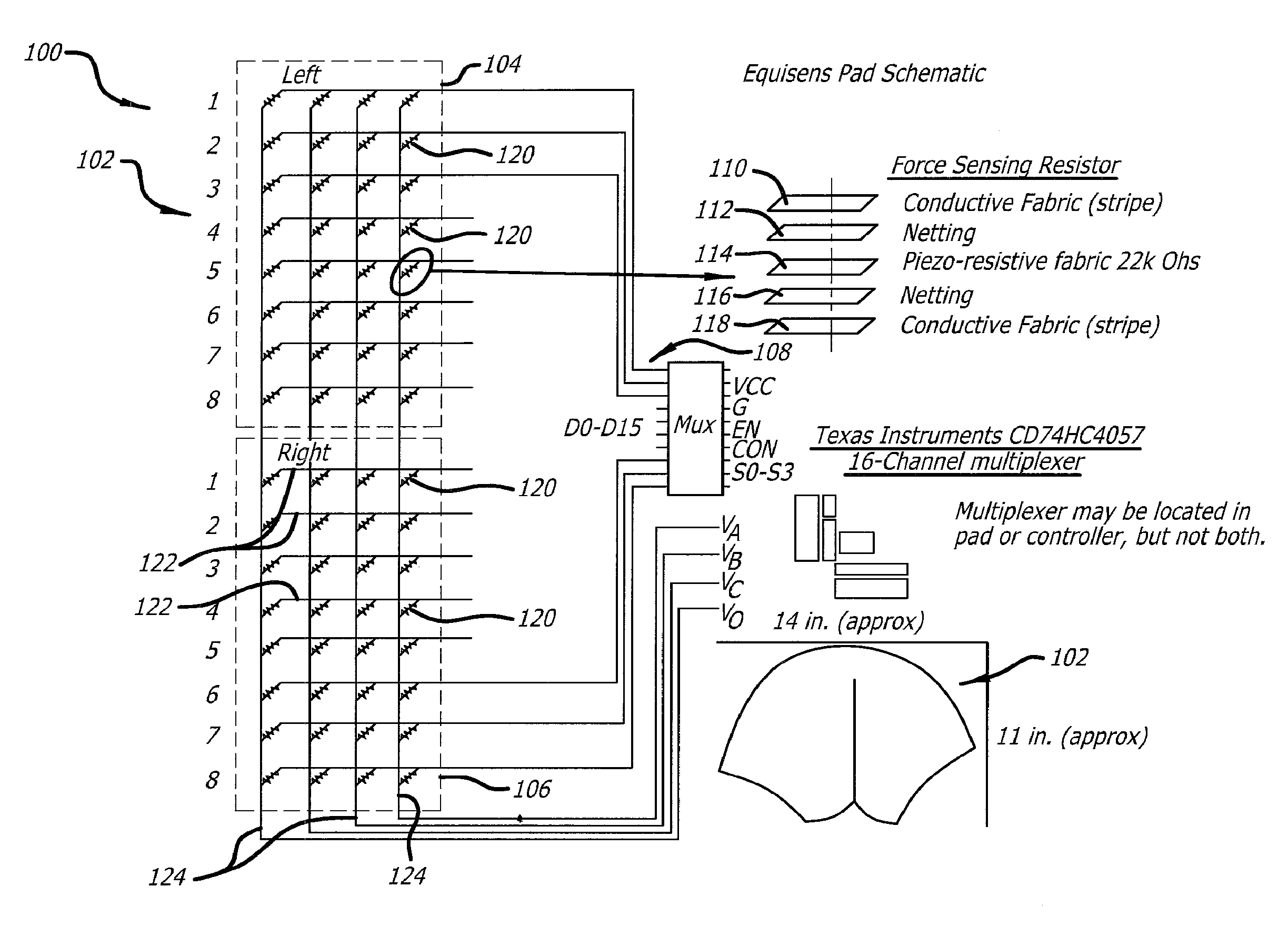

System is provided for aiding a horseback rider in maintaining balance while riding, includes sensor pad positioned between rider and saddle, pad/blanket worn by the horse during riding. Sensor pad includes sensors for measuring force exerted by the rider on the horse at individual measuring points. Controller configured for receiving force data from the sensor pad, includes a microprocessor continuously polling each sensor in the sensor pad for force data, calibrating each measurement based on an initial value, aggregating measurements from sensors on a left side and a right side of the sensor pad over a predetermined time interval, and calculating the differences between measurements on the right side and left side of the sensor pad. Power supply, electronic circuitry and alert mechanism receive signal from controller and notify rider when rider is off-balance based on calculated differences between measurements on right side and left side of sensor pad.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| EP | A1 | EP2739369 | Aug 06, 2012 |
| WO | A1 | WO2013022862 | Aug 06, 2012 |
| CA | A1 | CA2844332 | Aug 06, 2012 |
International Classification(s)
- 2012 Application Filing Year
- B68B Class
- 5 Applications Filed
- 5 Patents Issued To-Date
- 100 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B68B Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 29, 2027 |
