Ink fountain apparatus and method of adjusting ink flow for a flexographic printing apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 29, 2016
Grant Date -
Sep 18, 2014
app pub date -
Mar 12, 2014
filing date -
Mar 13, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

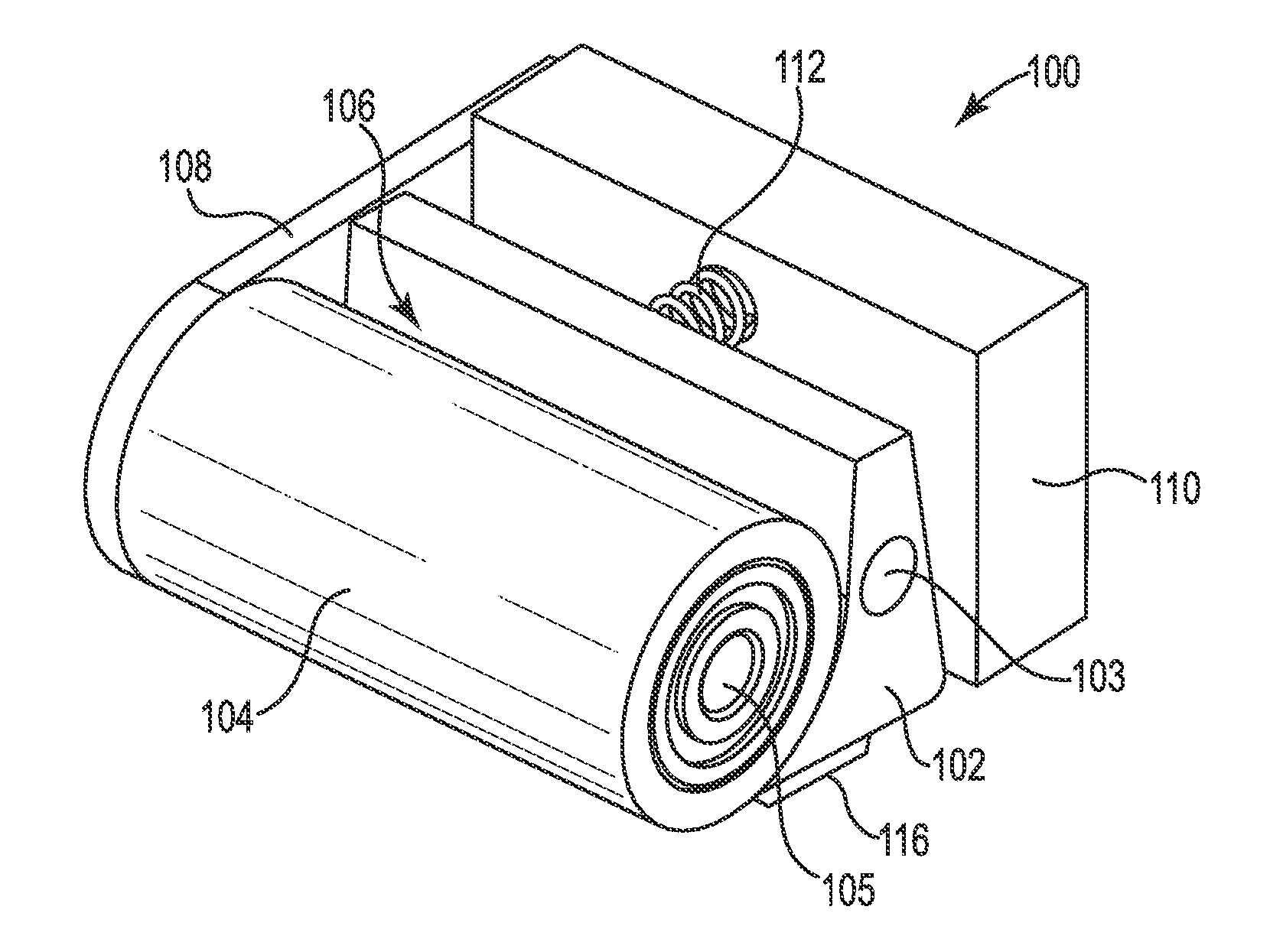

An ink fountain apparatus, method of method of adjusting printing characteristics in flexographic printing and a printing press system are disclosed. The apparatus may include a side plate, a roller disposed adjacent a first end of the plate, a back plate disposed adjacent a second opposing end of the side plate and a throttle disposed between the roller and the back plate. The throttle is mounted to the side plate and includes a back surface facing towards the back plate and a front surface facing towards the roller. The front surface includes a curved portion forming a tapering gap between the roller and the front surface of the throttle. A position controller is coupled to the throttle to selectively move the curved portion towards and away from the roller to adjust the volume of ink being transferred to the outer surface of the roller.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B41F Class
- 276 Applications Filed
- 234 Patents Issued To-Date
- 84.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B41F Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 29, 2027 |
