Cheese slicer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 29, 2016
Grant Date -
Oct 22, 2015
app pub date -
Apr 18, 2014
filing date -
Apr 18, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

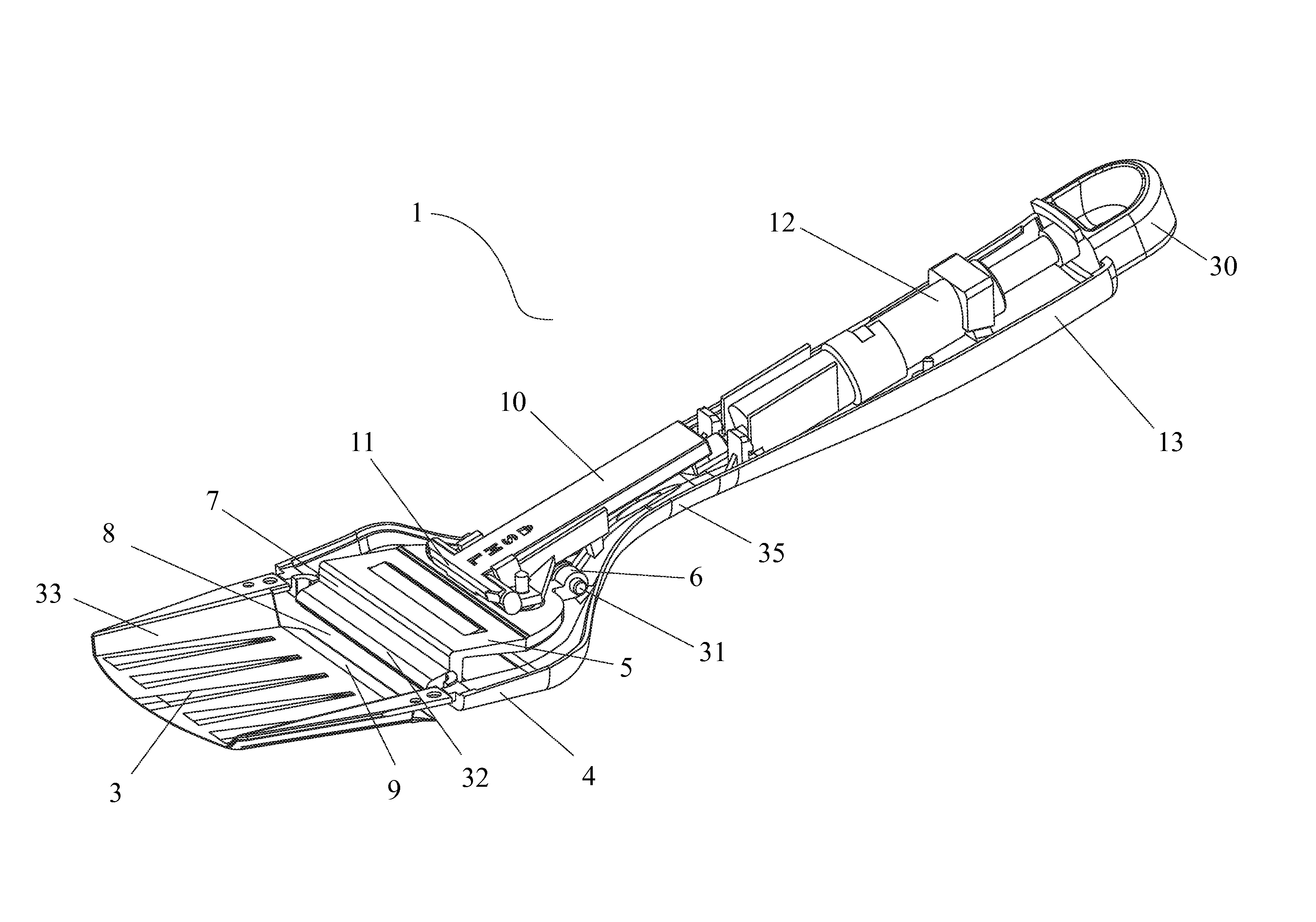

The present invention provides a cheese slicer adjustable for slicing cheese in variable thicknesses, comprising a handle; a guiding plate pivotally connected to the handle; a slicing plate having a slicing blade, wherein the slicing blade and the guiding plate together define a gap as slice thickness; a linkage movably resting against the guiding plate so that the movement of the linkage enables the guiding plate to pivot around the handle relative to the slicing blade thereby to provide variable slice thickness for the item to be sliced; an actuator assembly in operative connection with the linkage to move the linkage on the guiding plate. The cheese slicer of the present invention further comprises an indicating mechanism to clearly indicate the selected thickness of the sliced cheese.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B26B Class
- 250 Applications Filed
- 219 Patents Issued To-Date
- 87.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- B26B Class
- 14.34 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 29, 2027 |
