Apparatus for collecting a tubular box in a flattened configuration from a store, for opening-out the tubular box and for transferring the tubular box towards a receiving station of the tubular box
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 15, 2016
Grant Date -
Jul 25, 2013
app pub date -
Dec 27, 2012
filing date -
Jan 19, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

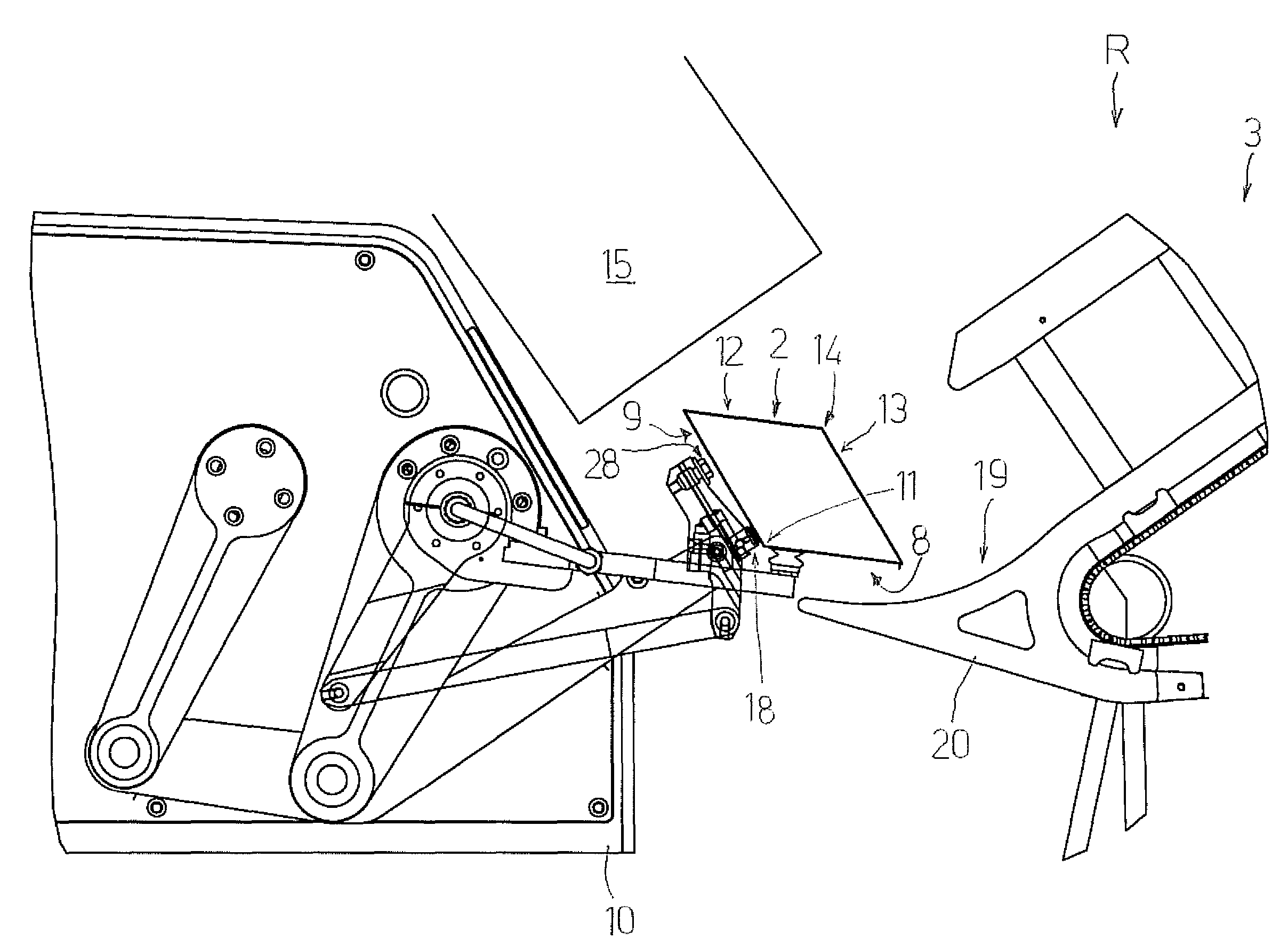

An apparatus for collecting a flattened tubular box, for opening-out and transferring the tubular box towards a receiving station has a first member hinged to a frame, bearing first aspirating means. Second, third, and fourth hinged members and the frame forming a four-bar linkage. A fifth member, hinged to the fourth member, bears second aspirating means. An abutting member is arranged between the first member and the receiving station inferiorly of the tubular box. The apparatus is being designed such that when the tubular box is in the folding position, a second wall of the box can be intercepted by the second aspirating means and folded progressively with respect to the first wall, the first aspirating means disengage the first wall, and the box moved by the second aspirating means up to rest on the abutting member with a consequent complete opening-out of the tubular box.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B31B Class
- 217 Applications Filed
- 125 Patents Issued To-Date
- 57.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B31B Class
- 30.81 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 15, 2027 |
