Column structure for an absorption column
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 15, 2016
Grant Date -
Dec 5, 2013
app pub date -
Nov 23, 2011
filing date -
Nov 24, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

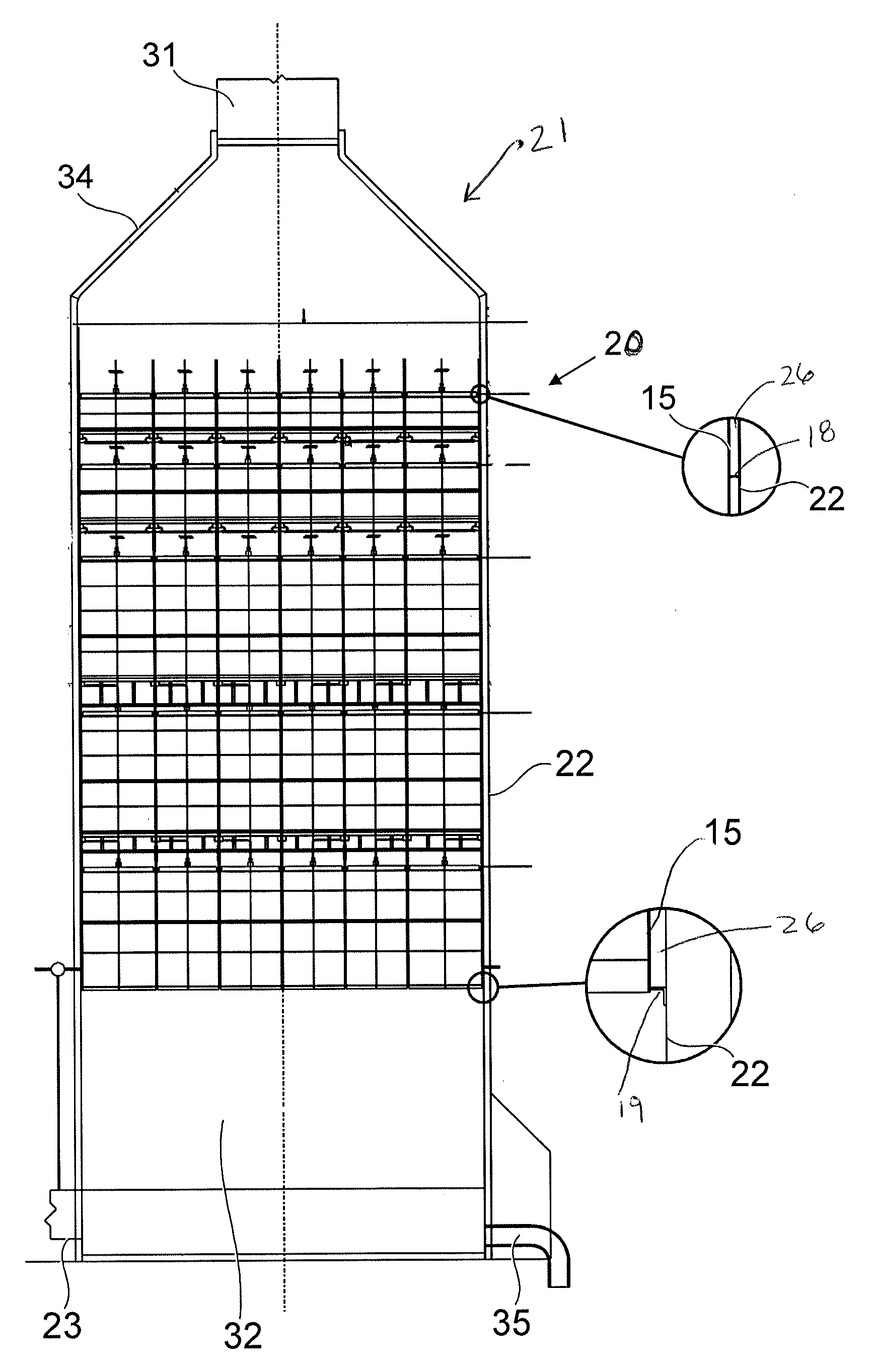

A column structure is described for the containment of high surface area packing and absorbent liquid reagent for the removal of a target gas from a gas stream. The column structure comprises a plurality of vessel column modules each having an elongate upright wall structure, each column module comprises a plurality of vertically disposed sub-modules, the modules being disposed together alongside one another in two dimensional array to constitute collectively the column structure. A column top support structure is located in the vicinity of the upper part of a column structure so assembled and each column module is mechanically supported from the column top support structure. A method of assembly of such a column and to a method of removal of a target gas from a gas phase using such a column are also described.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B01D Class
- 20.19 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 15, 2027 |
