Antenna installations
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 8, 2016
Grant Date -
Jul 24, 2014
app pub date -
Sep 5, 2012
filing date -
Sep 5, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

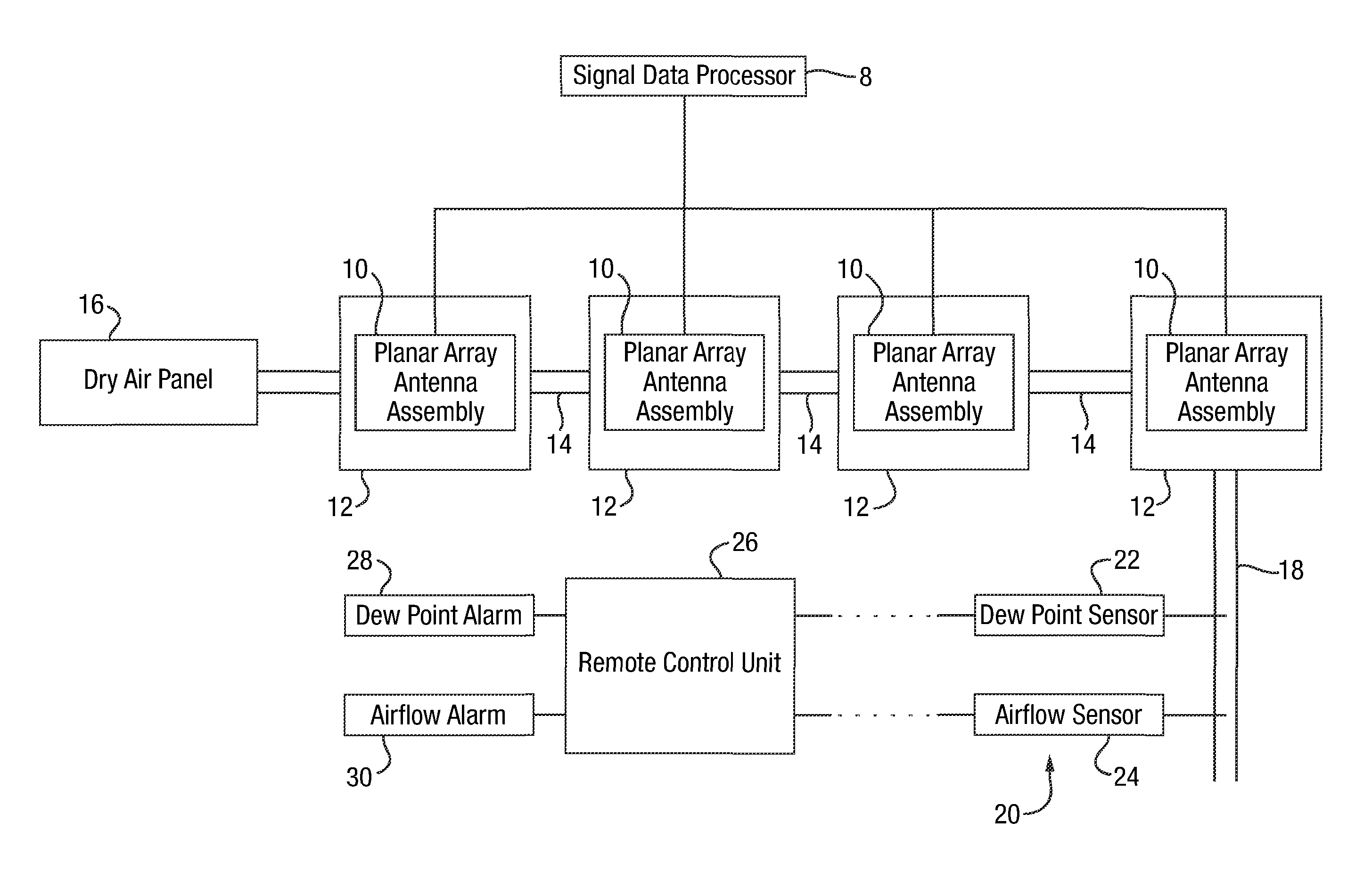

An antenna installation comprises a plurality of antenna assemblies (10) mounted in respective enclosures (12). The enclosures are interconnected by flow connections (14) allowing passage of dry air supplied from a dry air panel (16). Having passed through all the enclosures, the dry air exhausts through a dry air return (18). The dew point of the air in the dry air return is detected by a dew point sensor (22). An air flow sensor (24) is disposed downstream of the dew point sensor and signals alarm if the air flow falls below a preset threshold.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G08B Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 8, 2027 |
