Chromatography column distribution system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 8, 2016
Grant Date -
Jun 11, 2015
app pub date -
Feb 18, 2015
filing date -
Sep 23, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

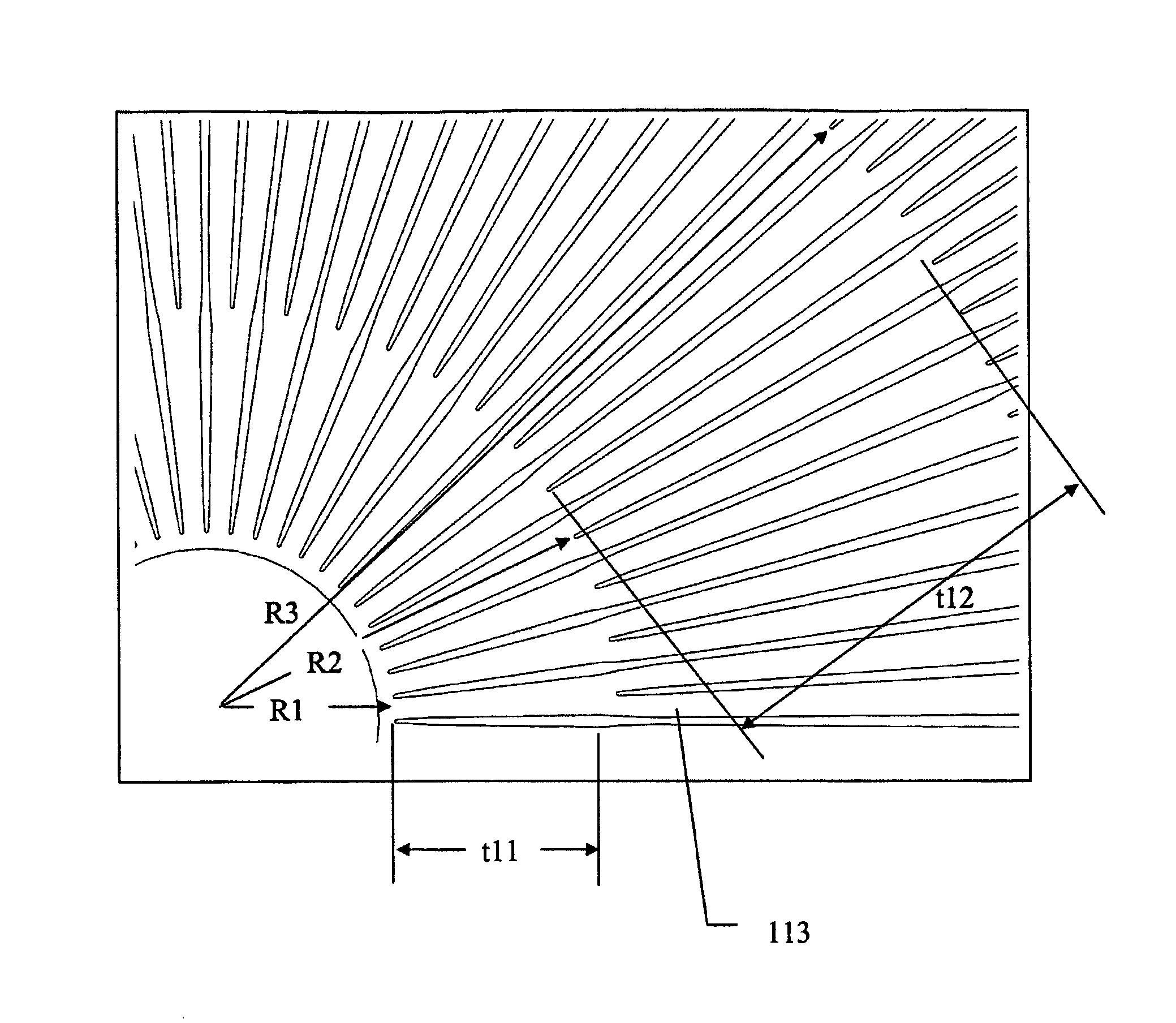

A chromatography column distribution system includes a set of first bed support ribs extending radially from an inner, first radial position near the centre of the plate to an outer radial position nearer to the periphery of the plate and at least one set of intermediate bed support ribs starting at an intermediate radial position and extending to an outer radial position nearer to the periphery of the plate. Channels are formed between adjacent bed support ribs. The desired local effective channel height varies in accordance with a predetermined formula from the first radial position to the outer radial position. The transverse cross-sectional areas of the ribs or the channels are adapted such that the actual local effective channel height is within 15% of the desired local effective channel height over portions of the distribution system situated between the first radial position and the outer radial position. The length of the portions correspond to at least 80% of the distance between the first and outer radial position and the outer radial position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G01N Class
- 11310 Applications Filed
- 8345 Patents Issued To-Date
- 73.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G01N Class
- 31.44 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 8, 2027 |
