Rotary distribution apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 8, 2016
Grant Date -
May 29, 2014
app pub date -
Jun 22, 2012
filing date -
Jun 27, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

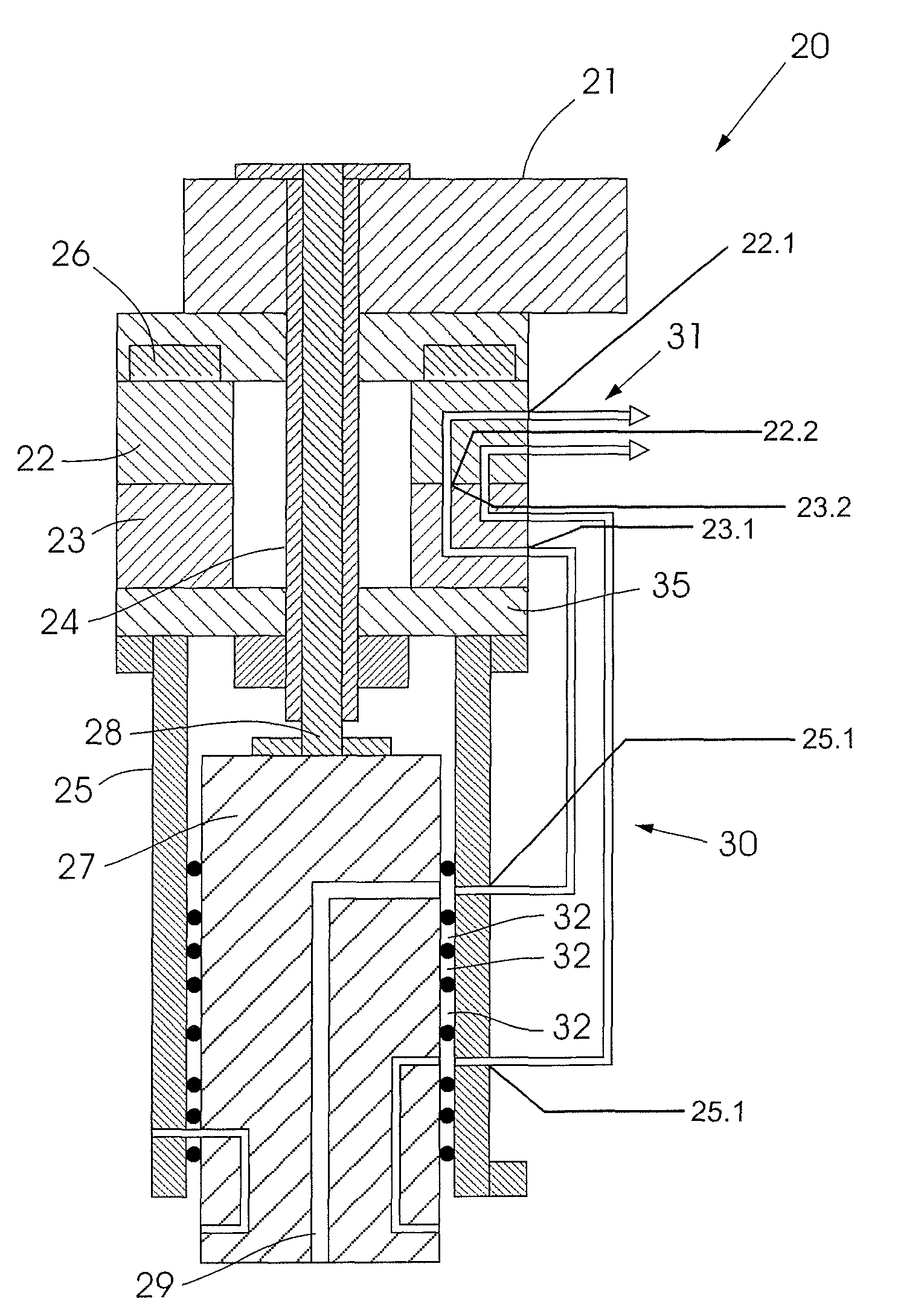

A rotary distribution apparatus includes a stationary, cylindrical inner core (27), and a rotatable, cylindrical outer shell (25) disposed about the inner core with the inner core (27) and the outer shell defining a plurality of annular fluid distribution chambers therebetween. The apparatus furthermore includes a rotatable indexing disc (23) having a plurality of flow passages provided therethrough, connection ports of which are in flow communication with ports in the outer shell (25), and a stationary indexing disc (22) having a plurality of flow passages provided therethrough, connection ports of which are in flow communication with suitable process vessels. The rotary distribution apparatus includes a driving arrangement that comprises a stationary shaft (28) to which the stationary core (27) is secured and a rotatable sleeve (24) rotatable about the stationary shaft (28), the rotatable sleeve (24) driving the rotatable outer shell (25) and the rotatable indexing disc (23).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F16K Class
- 1344 Applications Filed
- 1061 Patents Issued To-Date
- 78.95 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16K Class
- 21.26 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 8, 2027 |
