Modular electronic brake valve for air brakes vehicles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 8, 2016
Grant Date -
Dec 21, 2006
app pub date -
Jun 15, 2005
filing date -
Jun 15, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

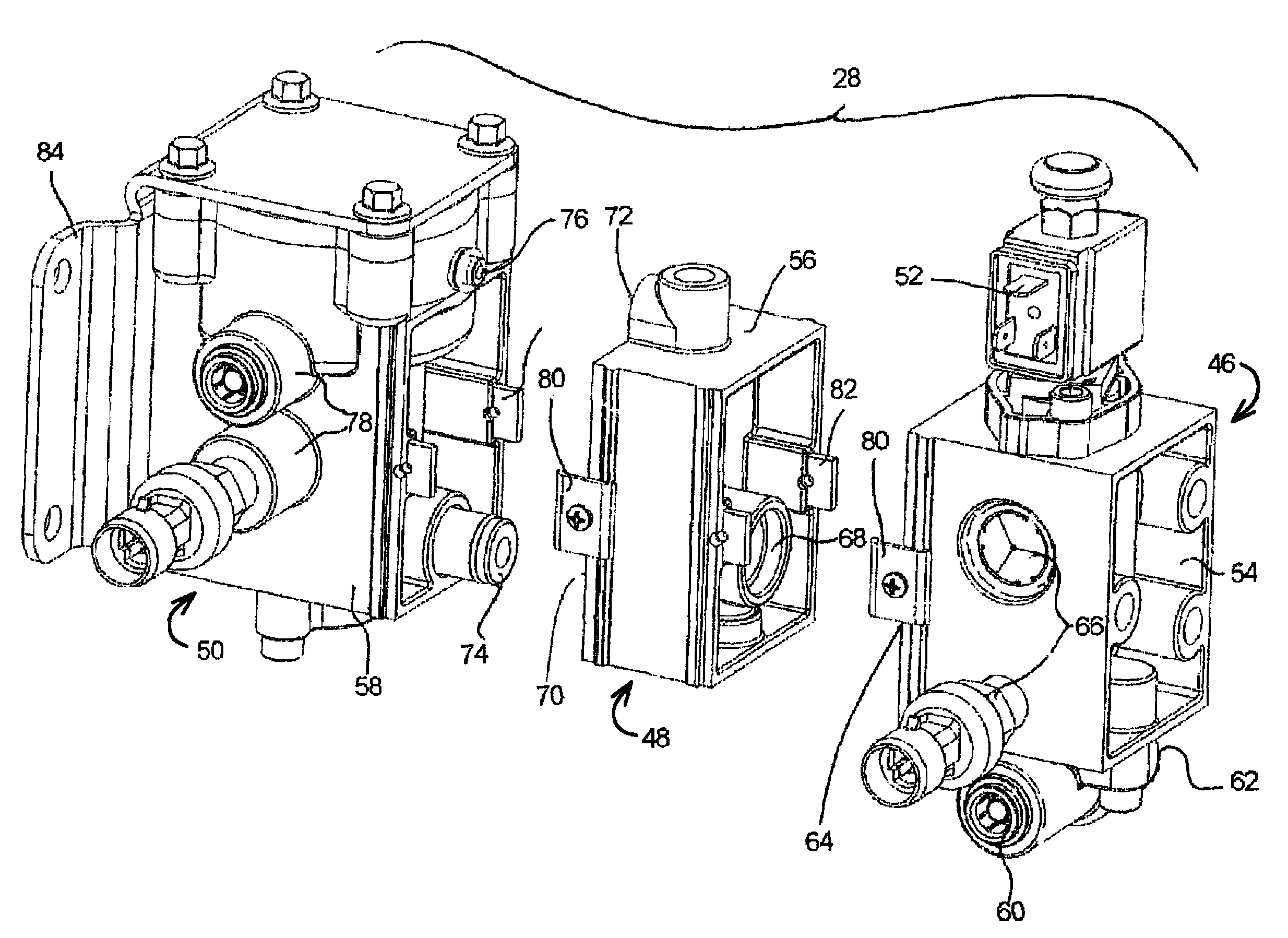

A vehicle brake system includes a source of fluid pressure adapted to supply a braking force to at least one brake actuator and a modular valve unit fluidly coupling the brake actuator to the source of fluid pressure. The modular valve unit includes a plurality of valve modules. Each of the plurality of valve modules includes a housing in which working elements of the valve module are contained and at least one port in the housing adapted to be an input port or an output port, the at least one port being adapted to cooperate with and be directly fluidly connected to at least one port of another of the plurality of valve modules, thereby obviating the need for tubing or piping. Each of the plurality of valve modules is self-contained and defines a stand-alone unit capable of operating independently of any other of the plurality of valve modules.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2005 Application Filing Year
- B60T Class
- 463 Applications Filed
- 258 Patents Issued To-Date
- 55.73 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60T Class
- 18.16 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 8, 2027 |
