Spinal cord stimulator system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 8, 2016
Grant Date -
Sep 18, 2014
app pub date -
Feb 5, 2014
filing date -
Feb 5, 2014
priority date (Note) -
Withdrawn
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

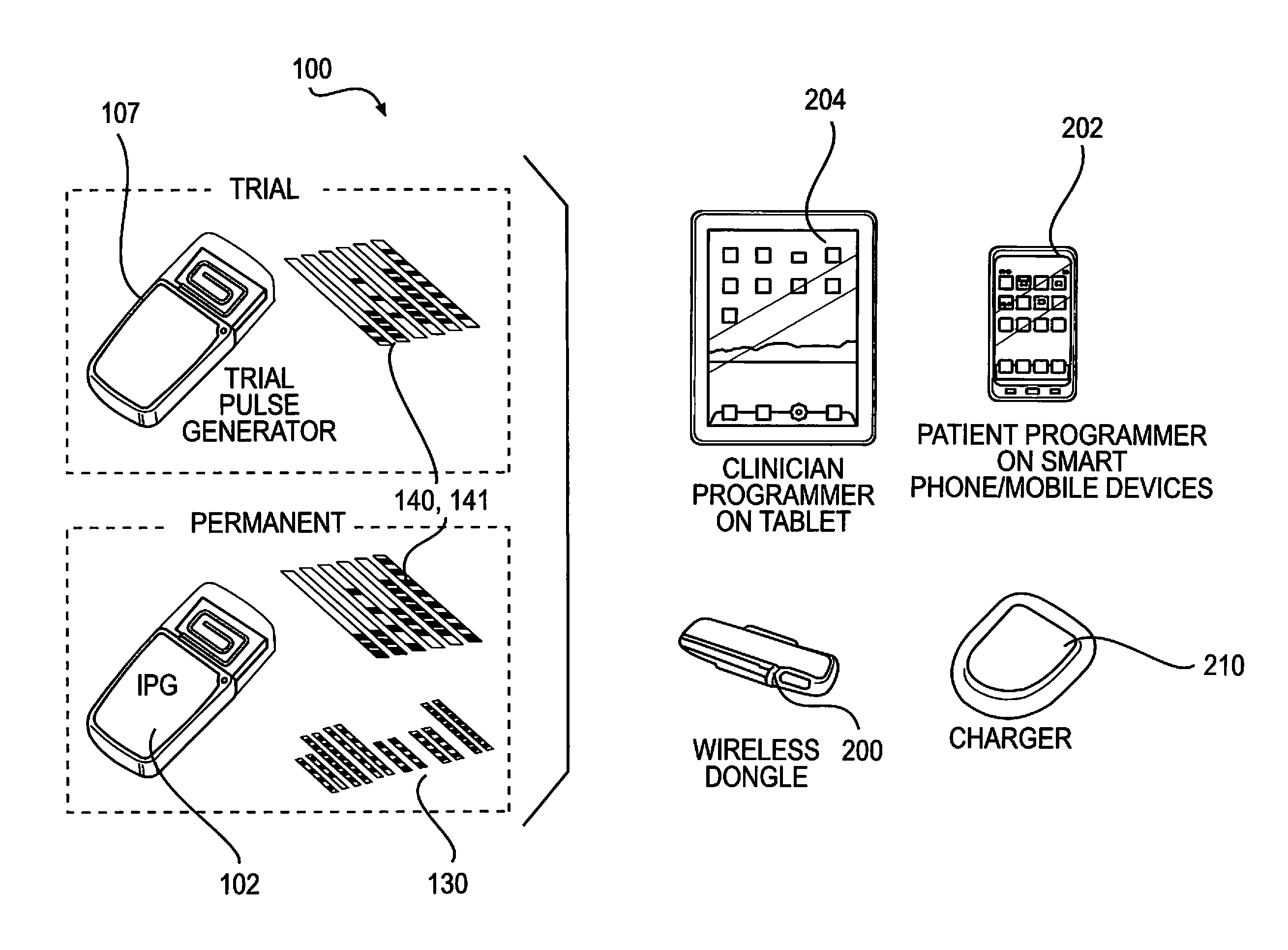

Spinal cord stimulation (SCS) system having a recharging system with self alignment, a system for mapping current fields using a completely wireless system, multiple independent electrode stimulation outsource, and IPG control through software on Smartphone/mobile device and tablet hardware during trial and permanent implants. SCS system can include multiple electrodes, multiple, independently programmable, stimulation channels within an implantable pulse generator (IPG) providing concurrent, but unique stimulation fields. SCS system can include a replenishable power source, rechargeable using transcutaneous power transmissions between antenna coil pairs. An external charger unit, having its own rechargeable battery, can charge the IPG replenishable power source. A real-time clock can provide an auto-run schedule for daily stimulation. A bi-directional telemetry link informs the patient or clinician the status of the system, including the state of charge of the IPG battery. Other processing circuitry in current IPG allows electrode impedance measurements to be made.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A61N Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 8, 2027 |
