Intake manifold
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 1, 2016
Issued Date -
N/A
app pub date -
Mar 3, 2014
filing date -
Mar 3, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

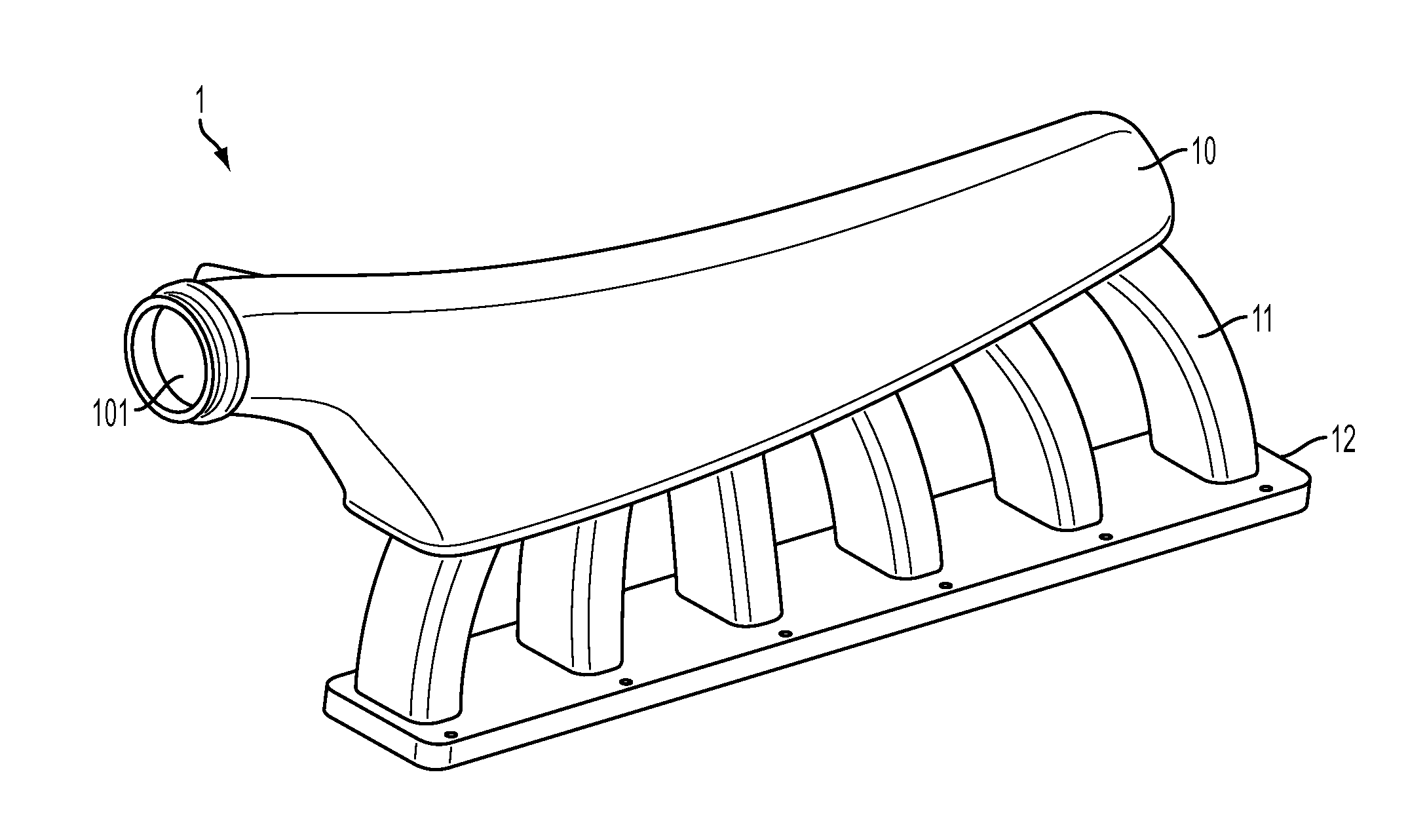

A bolt-on replacement intake manifold has an asymmetrical plenum with a first end including an inlet, a closed terminal end, a concave top surface and a convex bottom surface; a flange; and a plurality of runners extending from the bottom surface of the plenum and terminating at the flange. The plenum defines an interior space in flow communication with the runners. The bottom surface of the plenum is wider than the top surface. The plenum initially widens from the inlet to the first runner and then begins to narrow from the first runner toward the last runner adjacent to the closed terminal end. The runners are tapered, curved, and vary in length. The intake manifold causes air to exit each of the plurality of runners at substantially the same angle. The manifold balances airflow across each runner and increases swirl inside the cylinders enhancing fuel economy, power output, and torque.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F02M Class
- 1366 Applications Filed
- 1150 Patents Issued To-Date
- 84.19 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 16 Citation Count
- F02M Class
- 88.32 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 1, 2027 |
