Brake structure capable of adjusting a distance between two brake shoes of a bicycle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 1, 2016
Grant Date -
N/A
app pub date -
Sep 30, 2014
filing date -
Sep 30, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

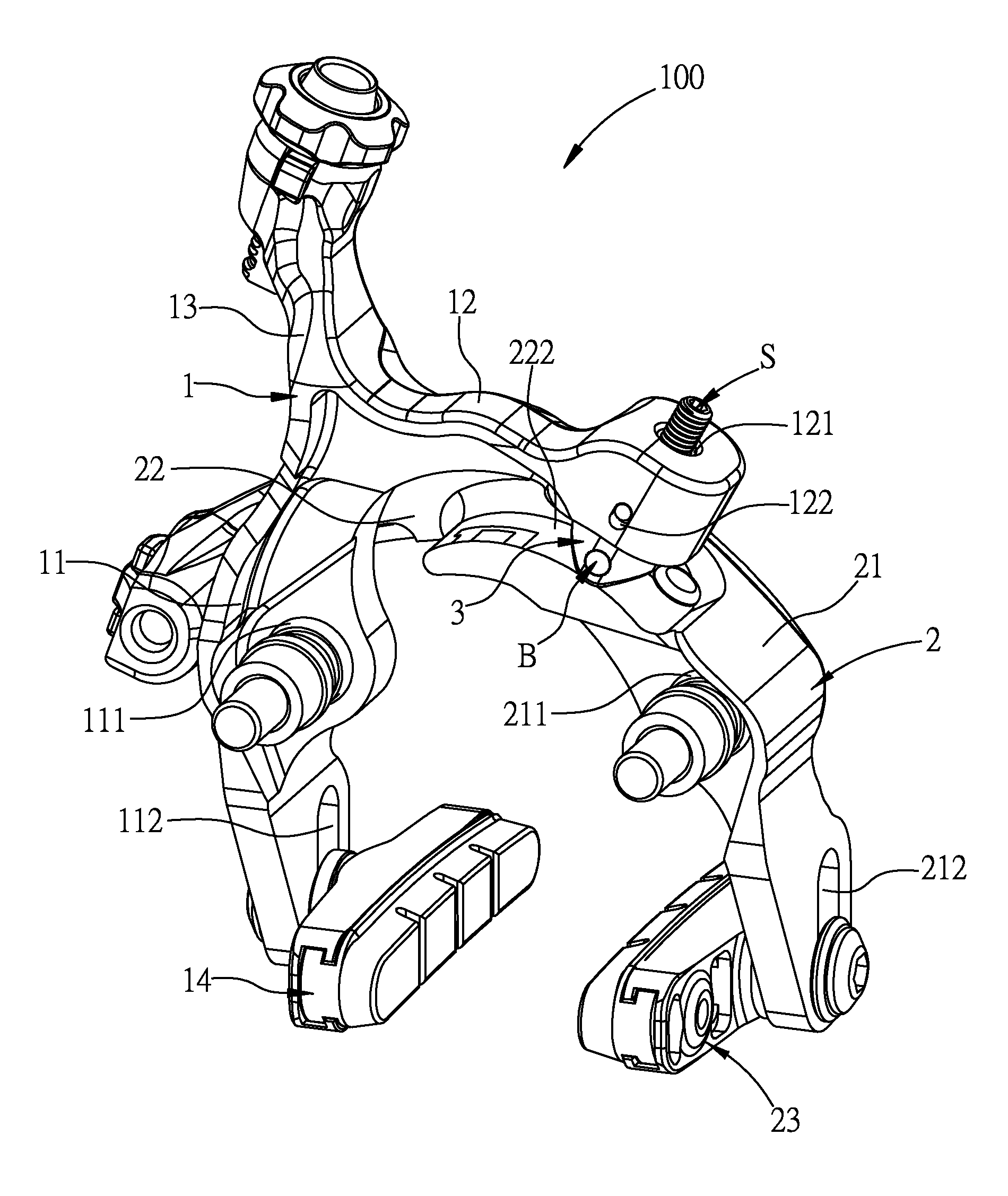

A brake structure capable of adjusting a distance between two brake shoes of a bicycle is disclosed. When the screw is screwed in the adjusting hole, the screw is against and pushing the push member, the concave portion of the push member is pushing the roller, and further the roller is rolling to push the horizontal wall to adjust a distance between the first brake shoe and the second brake shoe to be shorter. When the screw is screwed out of the adjusting hole, the push member is pushed back toward the bolt member, and further the horizontal wall is pushed back toward the push member to roll the roller to adjust the distance between the first brake shoe and the second brake shoe to be longer.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B62L Class
- 67 Applications Filed
- 54 Patents Issued To-Date
- 80.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B62L Class
- 28.57 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 1, 2027 |
