Rail road hopper car ridge fittings
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 1, 2016
Grant Date -
Nov 13, 2014
app pub date -
Dec 13, 2013
filing date -
Sep 8, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

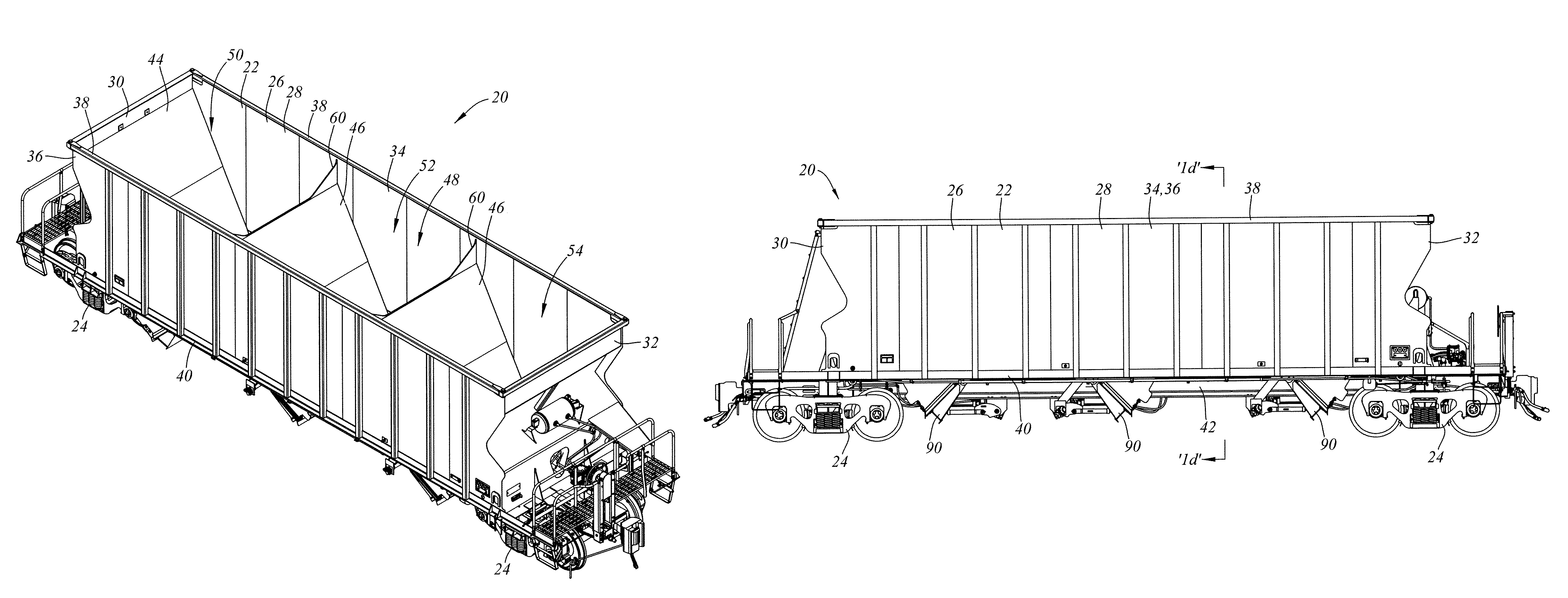

A hopper car discharge section may be wide at the top and narrow at the bottom. Outflow is controlled by movable closure members. The hopper car has a plurality of hoppers of which two hoppers share a common ridge assembly. The ridge assembly forms a common mating and fit up location for the upper margins of the slope sheets of two lengthwise adjacent hoppers. The ridge assembly includes an horizontal center section and two end plates that angle upwardly outboard toward the top chords of the sidewalls. The ridge assembly stands proud of the upper margin of the respective adjacent slope sheets. A gusset is mounted between the adjacent slope sheets below the ridge plate such that the slope sheets and gusset form a reinforcement tube running across the car, the end plates forming the stems of a vertical T-section attached to the sidewall and overlapping the top chord.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B61D Class
- 98 Applications Filed
- 90 Patents Issued To-Date
- 91.84 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B61D Class
- 27.17 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 1, 2027 |
