Connection piece
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 1, 2016
Grant Date -
Oct 6, 2011
app pub date -
Dec 14, 2009
filing date -
Dec 12, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

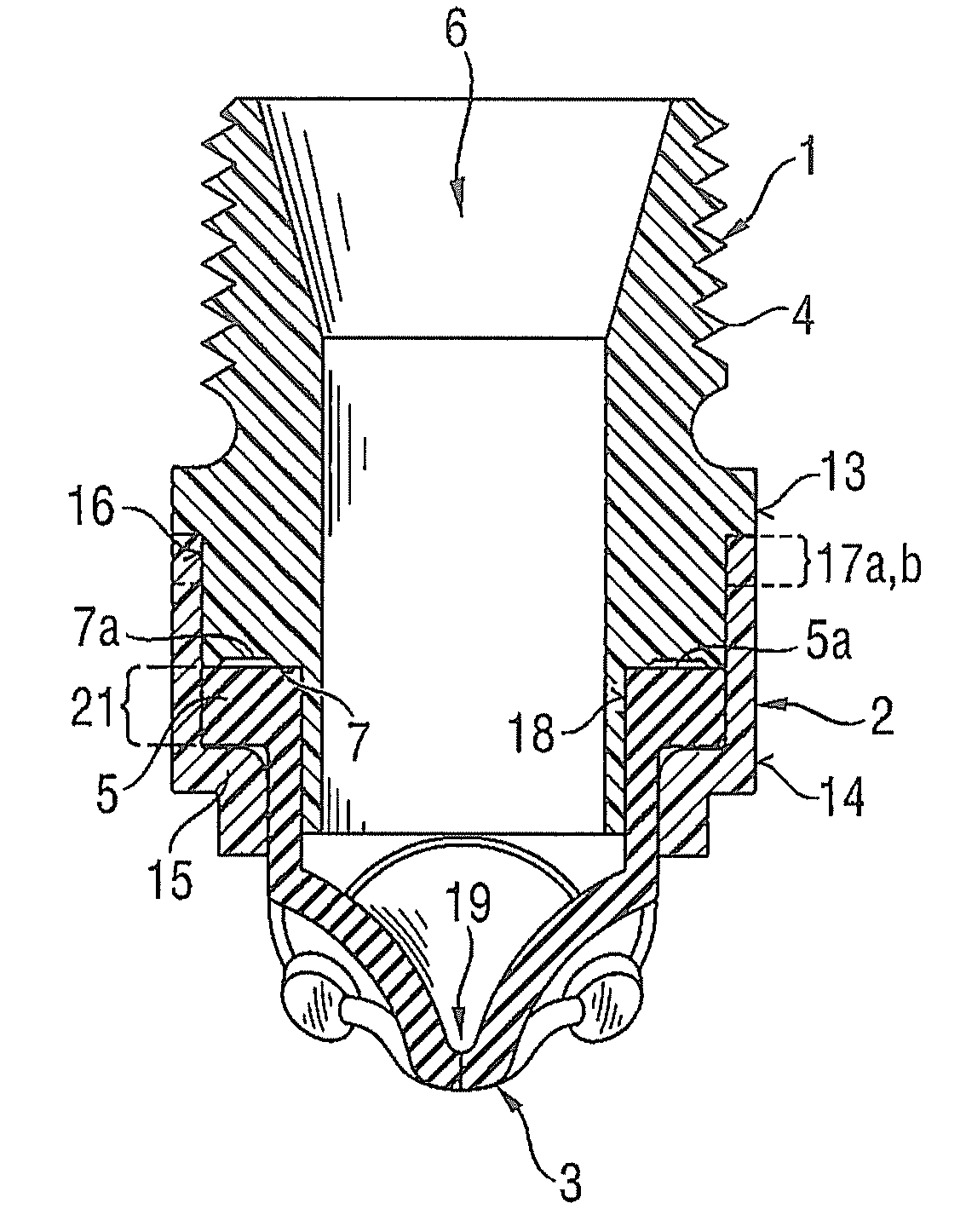

The aim of the invention is to be able to arrange or secure an elastic nozzle in a device, especially a casting machine, using simple design measures while allowing the nozzle to be quickly replaced in the device using simple mounting steps. Said aim is achieved by a connection piece (1) which is particularly suitable for securing an elastic nozzle (3) in a casting machine. The connection piece (1) preferably has a hollow cylindrical shape and includes a securing mechanism (4), especially a thread, at one end. A clamping unit (2) is connected to the connection piece (1). The connection piece (1) and/or the clamping unit (2) has/have a receptacle for the nozzle (3), and the nozzle (3) is connected to the connection piece (1).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2009 Application Filing Year
- F16L Class
- 1008 Applications Filed
- 656 Patents Issued To-Date
- 65.08 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16L Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 1, 2027 |
