Thin-film semiconductor optoelectronic device with textured front and/or back surface prepared from template layer and etching
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 23, 2016
Grant Date -
Nov 26, 2015
app pub date -
Aug 5, 2014
filing date -
Aug 5, 2014
priority date (Note) -
Withdrawn
status (Latency Note)
Importance
Calculated Rating
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

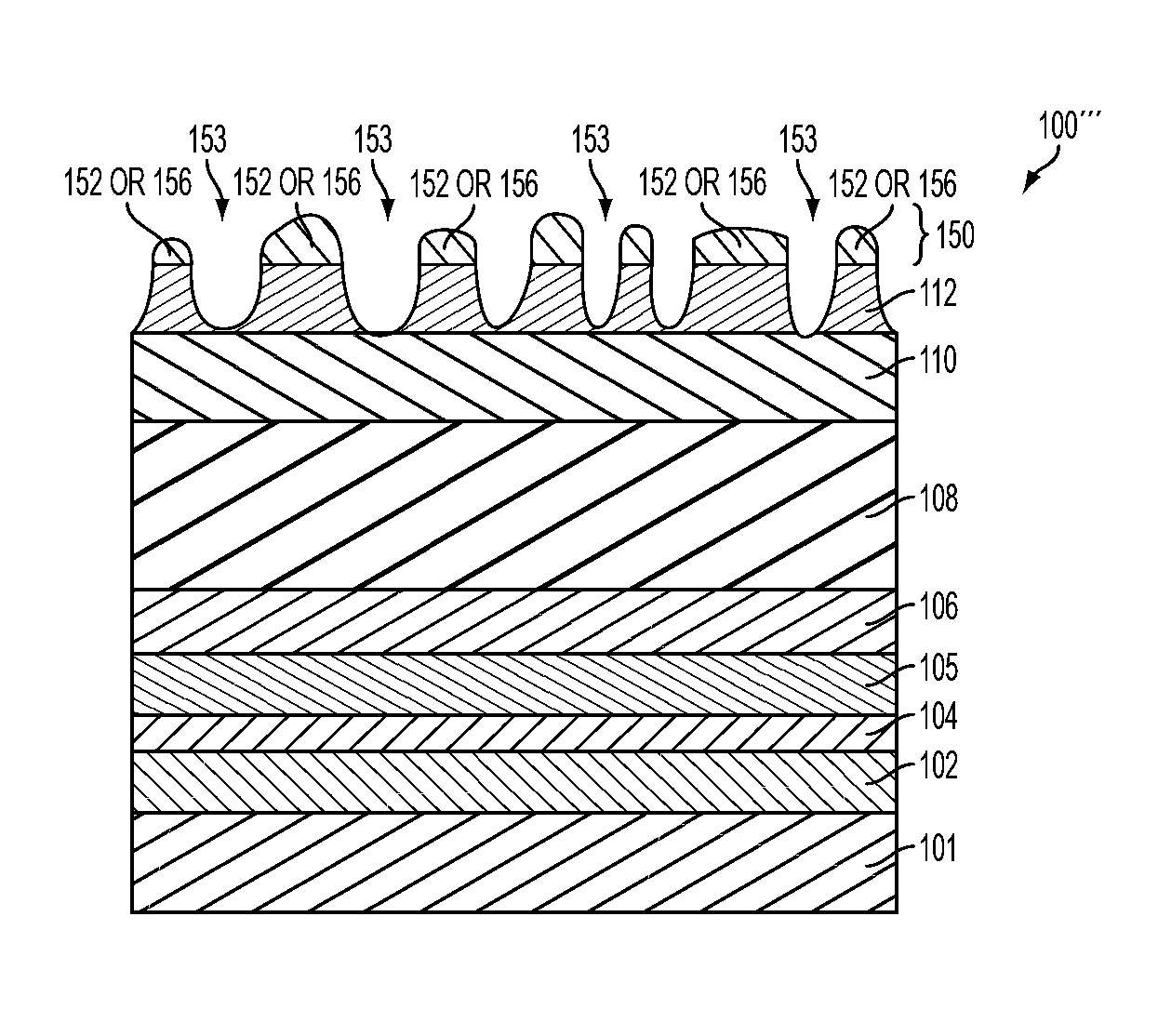

A method for providing a textured layer in an optoelectronic device is disclosed. The method includes depositing a template layer on a first layer. The template layer has significant inhomogeneity either in thickness or in composition, or both, including the possibility of forming one or more islands to provide at least one textured surface of the island layer. The method also includes exposing the template layer and the first layer to an etching process to create or alter at least one textured surface. The altered at least one textured surface is operative to cause scattering of light.
