Compensation of defective beamlets in a charged-particle multi-beam exposure tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 23, 2016
Issued Date -
N/A
app pub date -
Feb 25, 2015
filing date -
Feb 28, 2014
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

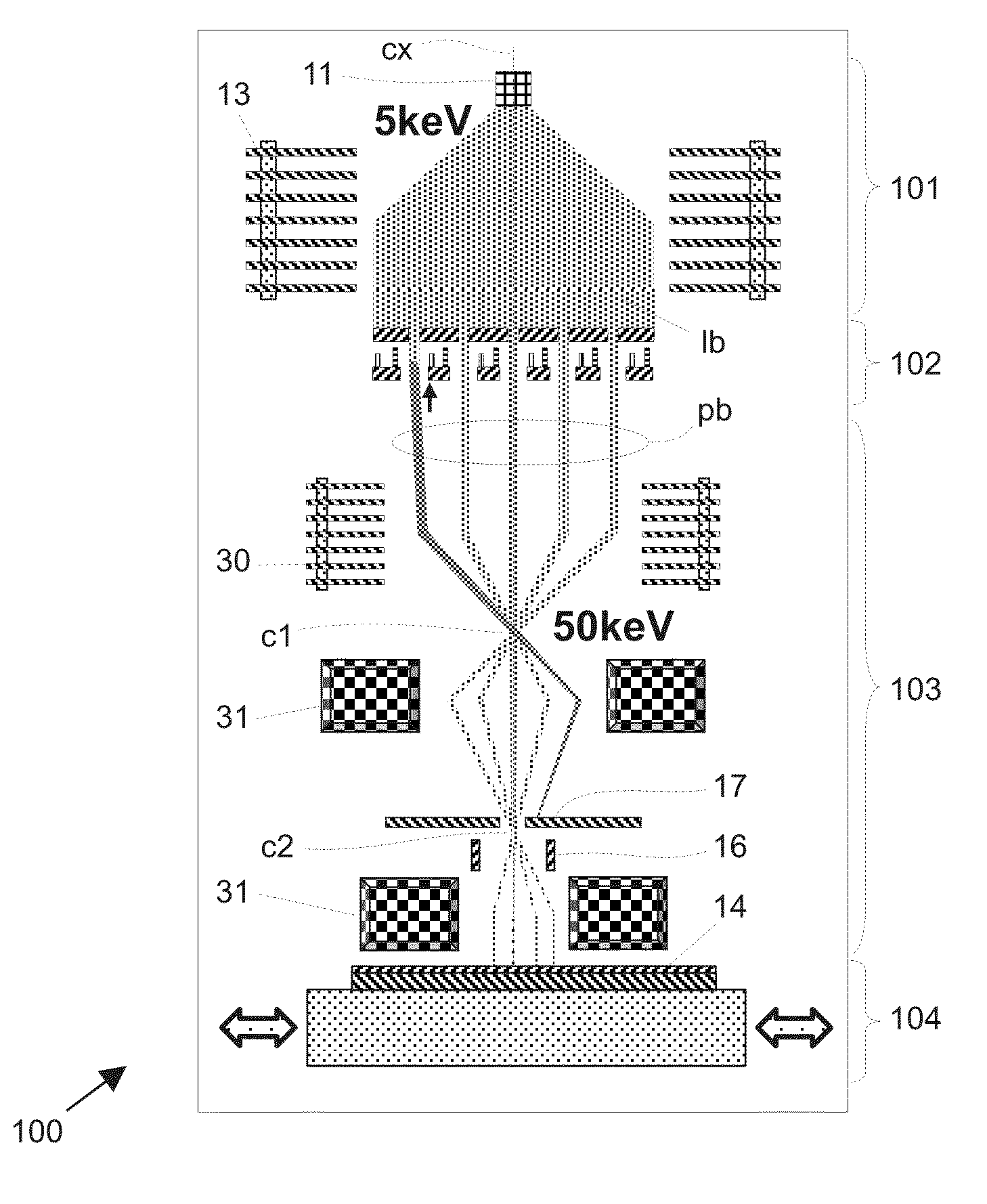

An exposure pattern is computed which is used for exposing a desired pattern on a target by means of a blanking aperture array in a particle-optical lithography apparatus which has a finite number of defects, said desired pattern being composed of a multitude of image elements within an image area on the target: A list of defective blanking apertures is provided, comprising information about the type of defect of the defective blanking apertures; from the desired pattern a nominal exposure pattern is calculated as a raster graphics over the image elements disregarding the defective blanking apertures; the “compromised” image elements (1105) are determined which are exposed by aperture images of defective blanking apertures; for each compromised element (1105), a set of neighboring image elements is selected as “correction elements” (1104); for each compromised element, corrected dose values are calculated for the correction elements, said corrected dose values minimizing an error functional of the deviation of the dose distribution including the defects from the nominal dose distribution, under the constraint that each of the corrected dose values falls within the allowed doses; and a corrected exposure pattern (1103) is generated by substituting the corrected dose values for the nominal dose values at the correction elements.
