Method and control device for operating a gasoline engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 23, 2016
Grant Date -
Nov 7, 2013
app pub date -
Nov 14, 2011
filing date -
Nov 30, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

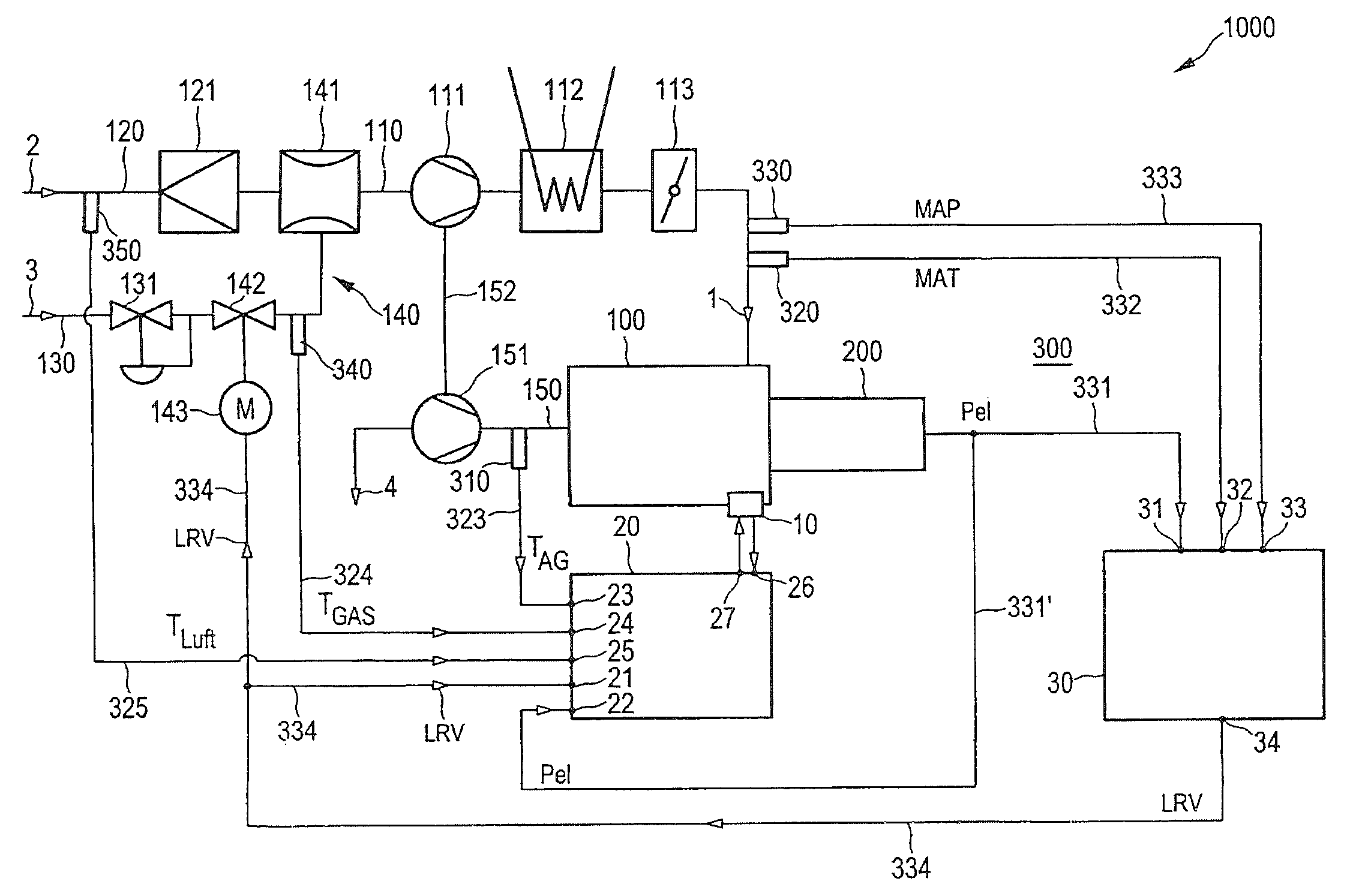

The disclosure relates to a method for operating a spark ignition gas engine, with fuel gas in the form of biogas by setting an ignition time (ZZP) of the spark ignition gas engine. The method comprises to following steps: mixing of air and fuel gas to form a combustible gas mixture in a mixing arrangement, feeding in and igniting the combustible gas mixture in the combustion chamber while setting an ignition time (ZZP) and burning the combustible gas mixture while discharging exhaust gas from the combustion chamber. The method further comprises the steps of: detection of an exhaust gas temperature (T_AG) of the exhaust gas, predefining at least one reactor position (LRV) of a component of the mixing arrangement, setting the ignition time (ZZP) of the spark ignition gas engine as a function of the exhaust gas temperature (T_AG) and the reactor position (LRV). The reactor position (LRV) is predefined as a manipulated variable by a mixture controller.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- F02M Class
- 906 Applications Filed
- 766 Patents Issued To-Date
- 84.55 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F02M Class
- 14.53 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 23, 2027 |
