Riding toy
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 23, 2016
Grant Date -
Apr 11, 2013
app pub date -
Oct 4, 2012
filing date -
Oct 5, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

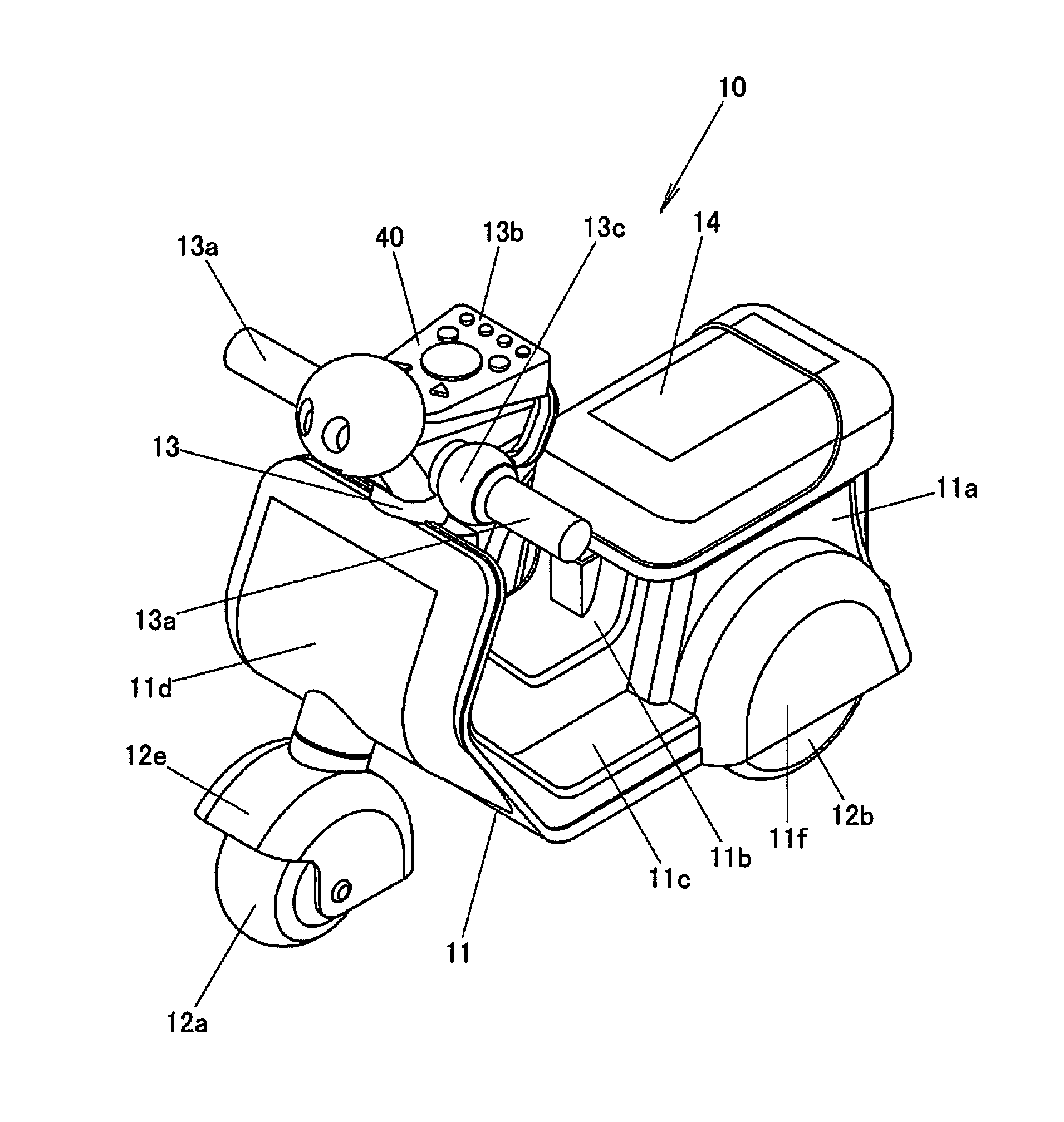

A riding toy, free from maintenance work like battery replacement and able to urge a rider to take exercise while preventing the rider from getting tired thereof, has one front wheel and two rear wheels that are provided rotatably on a body, a generating motor linked with the rear wheels via a power transmission mechanism, a rectifier bridge circuit rectifying an output current from the generating motor, a storage unit storing a direct current from the rectifier bridge circuit, button switches of a button group on the body or a handlebar, an output unit on the handlebar including a sound emitting device or a light emitting device and a control unit causing the light emitting device or the sound emitting device of the output unit to perform a predetermined operation in response to operation of the button switches based on a current supplied from the storage unit.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B62J Class
- 164 Applications Filed
- 143 Patents Issued To-Date
- 87.20 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B62J Class
- 10.99 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 23, 2027 |
