Increased efficiency strainer system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 23, 2016
Grant Date -
Apr 14, 2011
app pub date -
Jul 13, 2010
filing date -
Oct 13, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

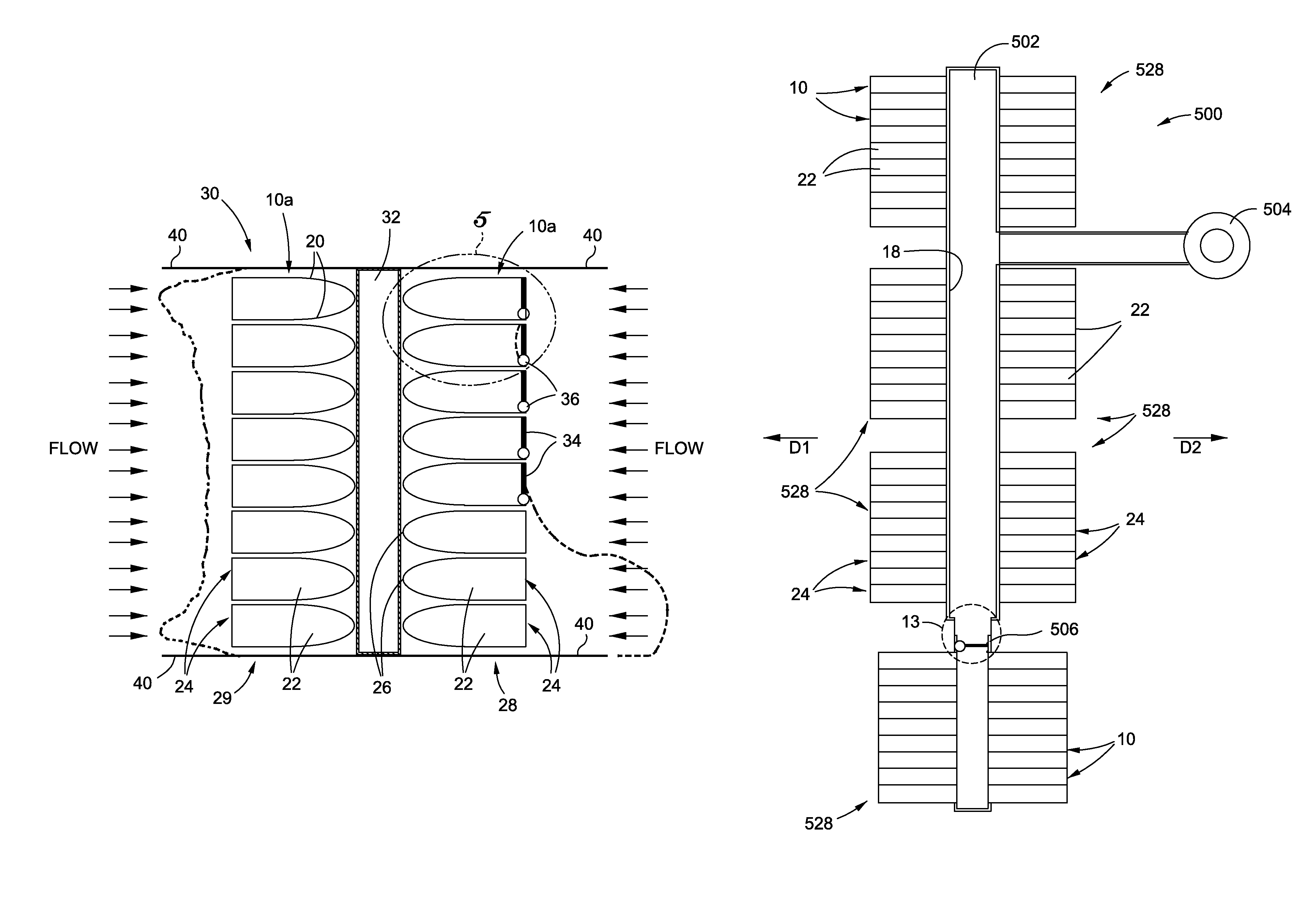

In accordance with the present invention, there is provided a strainer system comprising a plurality of strainer modules, each of which comprises multiple cassettes or cartridges assembled together in a prescribed arrangement. In the strainer system constructed in accordance with the present invention, the “clean” sides of the strainer modules are fluidly connected to each other by a plenum duct which also has a suction pump fluidly coupled thereto. Integrated into the plenum duct is a pressure released membrane (PRM) which is positioned so as to effectively isolate one of the strainer modules from the remaining active strainer modules included in the strainer system. The pressure released membrane is uniquely configured so as to facilitate the activation of the isolated strainer module when pressure across the plenum duct increases beyond a prescribed threshold.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- G21C Class
- 216 Applications Filed
- 190 Patents Issued To-Date
- 87.97 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G21C Class
- 31.41 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 23, 2027 |
