Cradle-type vehicle frame and canopy structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 16, 2016
Grant Date -
Oct 16, 2014
app pub date -
Jul 8, 2011
filing date -
Mar 4, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

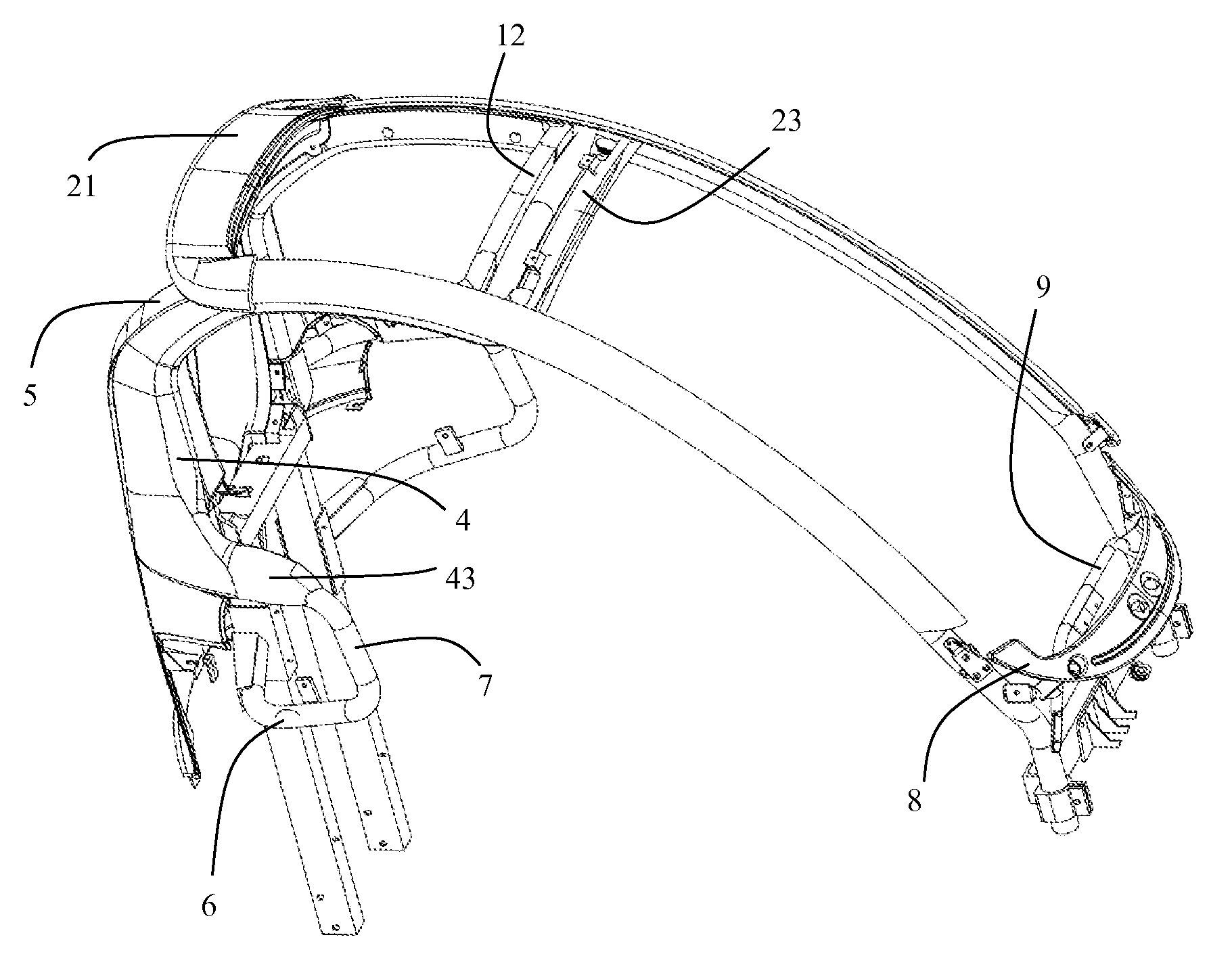

A canopy structure comprising a framework which includes a pair of spacedly disposed, curved tubes, a connecting member disposed between the respective forward ends of the two tubes, and a cross-member connectedly disposed between the two tubes at the highest point thereof. A forward horizontal beam is mounted on the cross-member and a rear horizontal beam is mounted at a position between the two tubes and to the rear of the forward horizontal beam. An adhesive strip is disposed upon each tube by enveloping means, and forward and rear glass panels are fixedly arranged on the canopy structure by means of said adhesive strips and by the forward and rear horizontal beams respectively. Also disclosed are a canopy assembly structure using a fixed column to fixedly connect one component having a metallic spacer with spacing holes to another component having mounting holes, and a cradle-type vehicle frame having a backrest framework.
