Locking mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 16, 2016
Grant Date -
Mar 13, 2014
app pub date -
Aug 15, 2013
filing date -
Sep 7, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

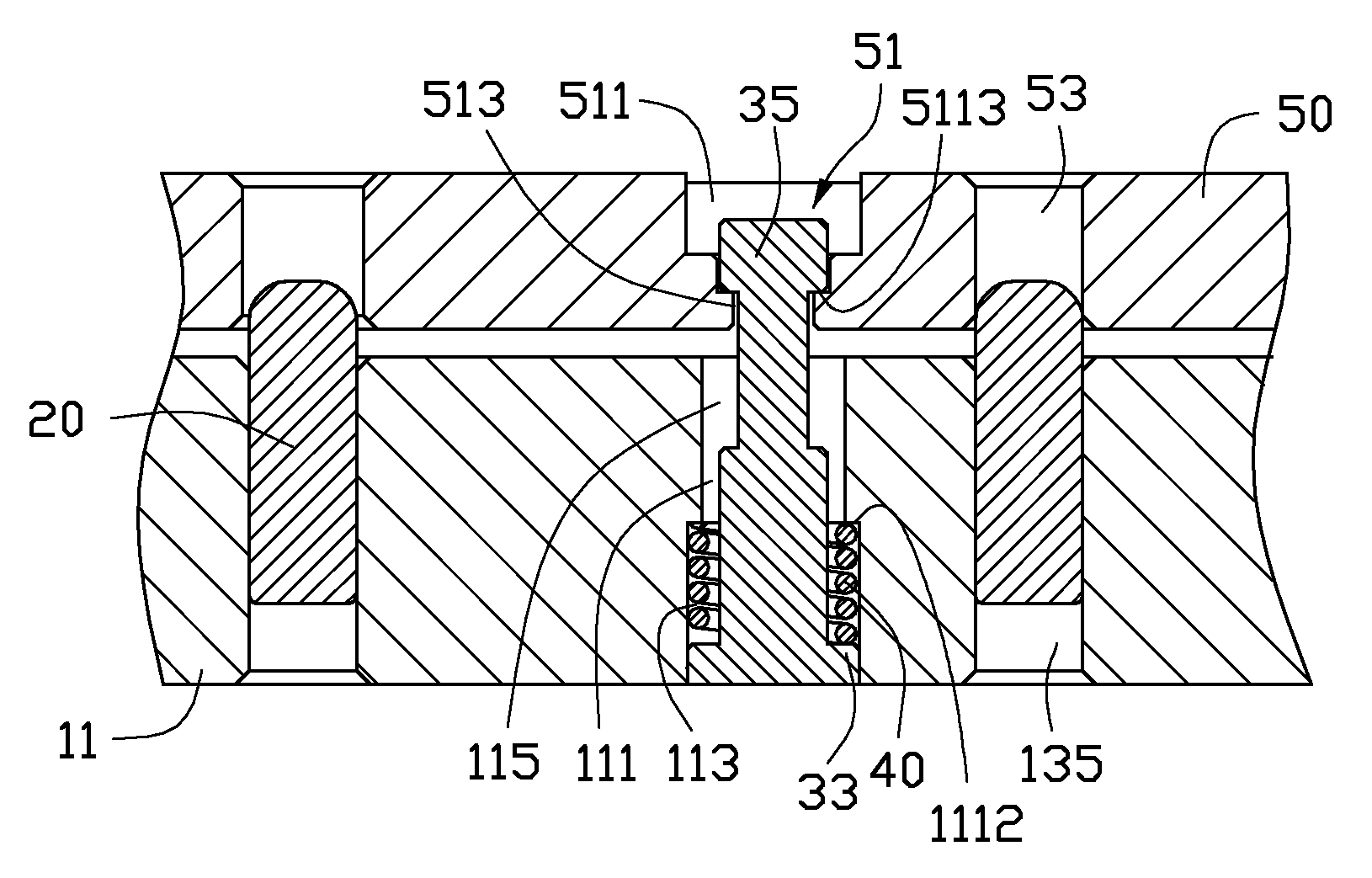

A locking mechanism, for fixing and positioning a workpiece, includes a base, a locking member, a retaining plate, and an elastic member. The base defines a through mounting hole. The locking member comprises a main body, a blocking portion, and a latching portion. The blocking portion and the latching portion are respectively formed on opposite ends of the main body. The retaining plate is mounted on the base by the at least one locking member, and defines a through first opening corresponding to the mounting hole. The main body passes through the mounting hole and the first opening, the elastic member resists against the base and the blocking portion, such that the latching portion is engaged with and latched with the retaining plate by an elastic force of the elastic member.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B23Q Class
- 473 Applications Filed
- 407 Patents Issued To-Date
- 86.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B23Q Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 16, 2027 |
