Apparatus for measuring the scattered light and method of testing a reception optics
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 9, 2016
Grant Date -
Apr 16, 2015
app pub date -
Oct 10, 2014
filing date -
Oct 11, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

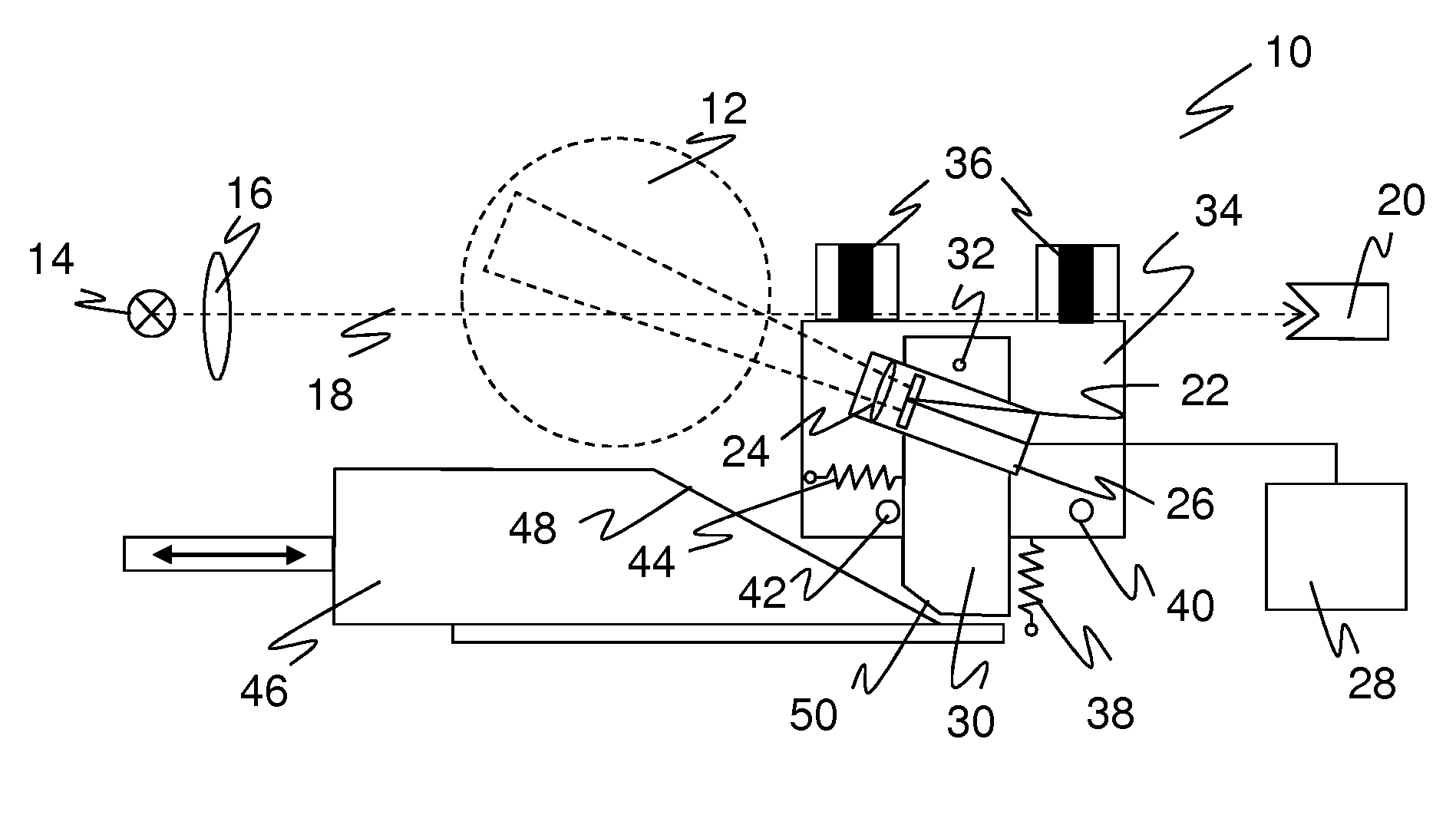

An apparatus for measuring light scatter, the apparatus having a light transmitter and reception optics for transmitting and detecting a light beam scattered in a measured zone, respectively, wherein an adjustment unit changes between a measuring mode wherein the optical axes of the light transmitter and the reception optics stand at an angle with respect to one another and intersect in the measured zone and a test mode wherein the optical axes of the light transmitter and the reception optics are parallel, wherein the light beam successively sweeps over the reception optics. The reception optics is rotatably held at a displaceable rotary axle, wherein the adjustment unit first rotates the reception optics about the rotary axle in the test mode until the optical axis of the reception optics is parallel with the optical axis of the light transmitter and then displaces the rotatable axle together with the reception optics.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01N Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 9, 2027 |
