Digital temperature determination using a radiometrically calibrated and a non-calibrated digital thermal imager
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 9, 2016
Grant Date -
Jan 21, 2016
app pub date -
Jul 17, 2014
filing date -
Jul 17, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

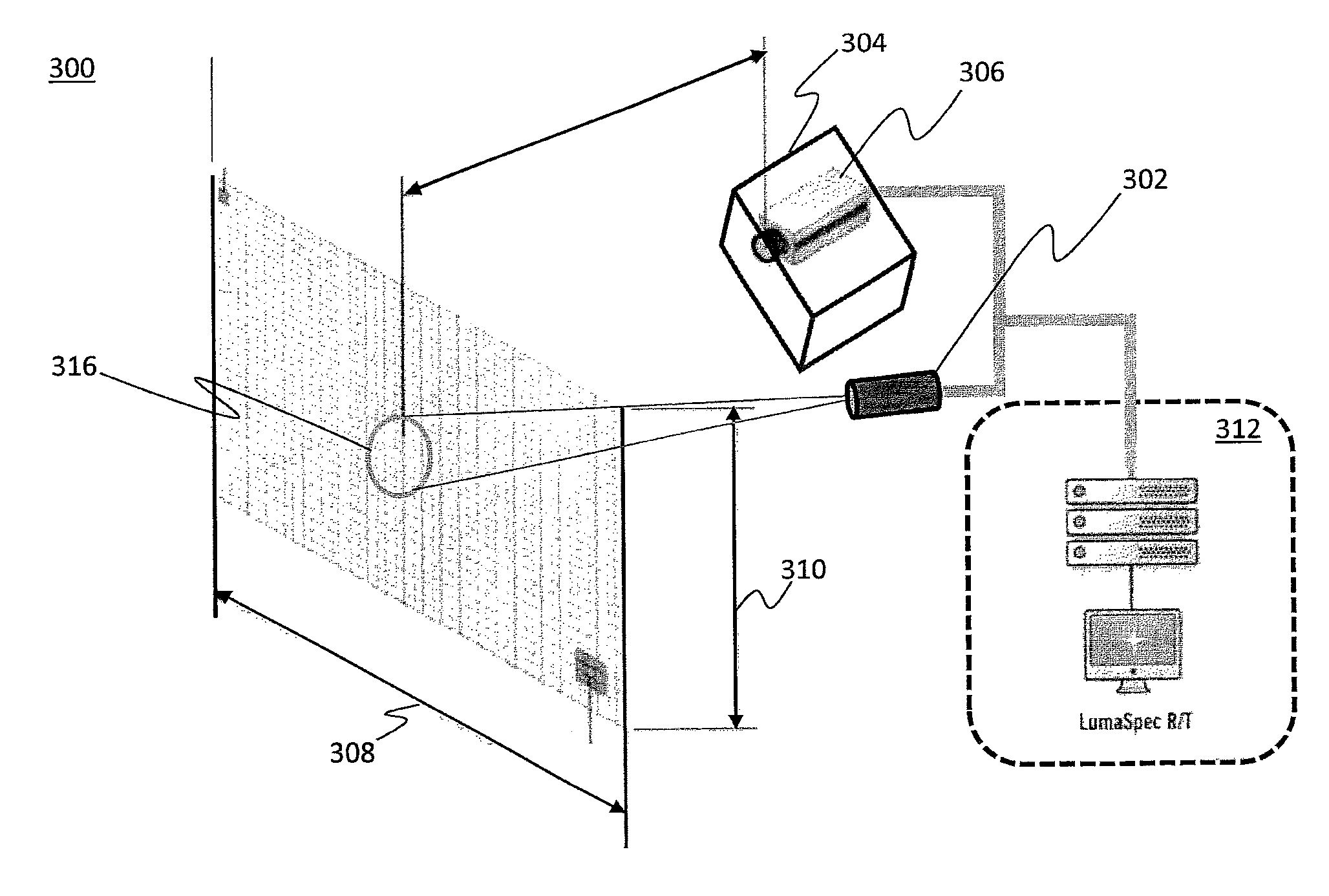

A method, system, and non-transitory computer readable medium storing a plurality of computer executable instructions for calibrating an uncalibrated thermal imager is provided. The system includes a calibrated pyrometer for determining a first temperature of a Region of Interest under a first condition, and an uncalibrated thermal imager for determining a first average count value over the region of interest under the first condition and for determining a second average count value over the region of interest under a second condition. A temperature sensor for determining a second temperature of the region of interest under a second condition is also provided. Control electronics determine a Planck function that intersects the points (first temperature, first average count value) and (second temperature, second average count value). The uncalibrated thermal imager is calibrated using the Planck function.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01J Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 9, 2027 |
