Suspension system with a floating axle lock
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 9, 2016
Grant Date -
Aug 27, 2015
app pub date -
May 15, 2008
filing date -
May 15, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

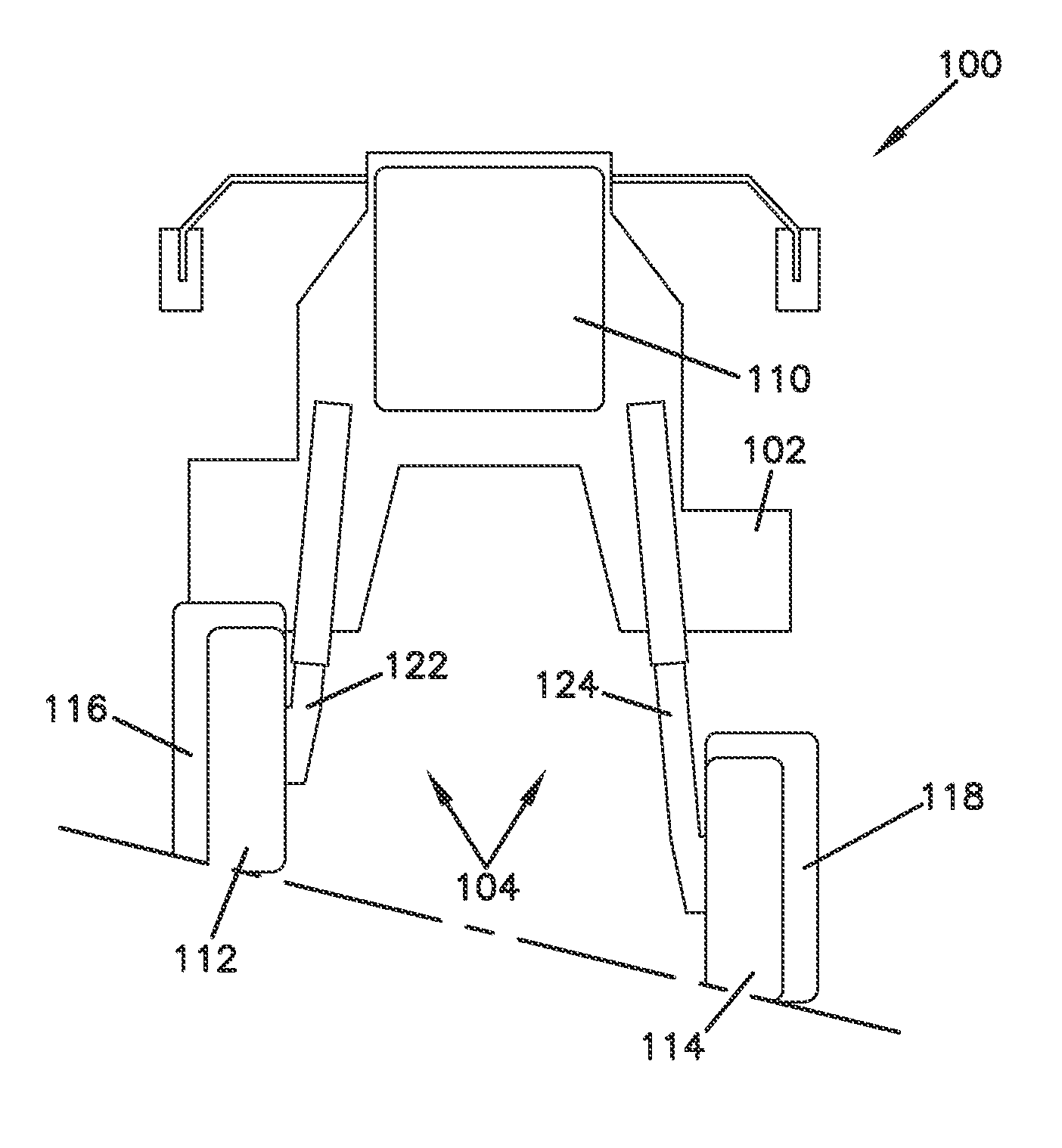

A suspension system for a vehicle includes a right front wheel, a left front wheel, a right rear wheel and a left rear wheel. A suspension system for the vehicle includes a first cylinder supporting the vehicle at the right front wheel in fluid communication with a second cylinder supporting the vehicle at the left front wheel, wherein the first and second cylinders form a virtual articulated front axle. The suspension system also includes a third cylinder supporting the vehicle at the right rear wheel and a fourth cylinder supporting the vehicle at the left rear wheel. The suspension system includes two spool valves in fluid communication with the first and second cylinders and intermediate the first and second cylinders. When one of the rear wheels is unweighted, an associate one of the spool valves closes and fluid flow between the first and second cylinders is blocked to create a virtual locked axle.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2008 Application Filing Year
- B60G Class
- 285 Applications Filed
- 187 Patents Issued To-Date
- 65.62 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60G Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 9, 2027 |
