Drill hammer and/or impact hammer having free convection cooling
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 9, 2016
Grant Date -
May 16, 2013
app pub date -
Jan 13, 2011
filing date -
Jan 15, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

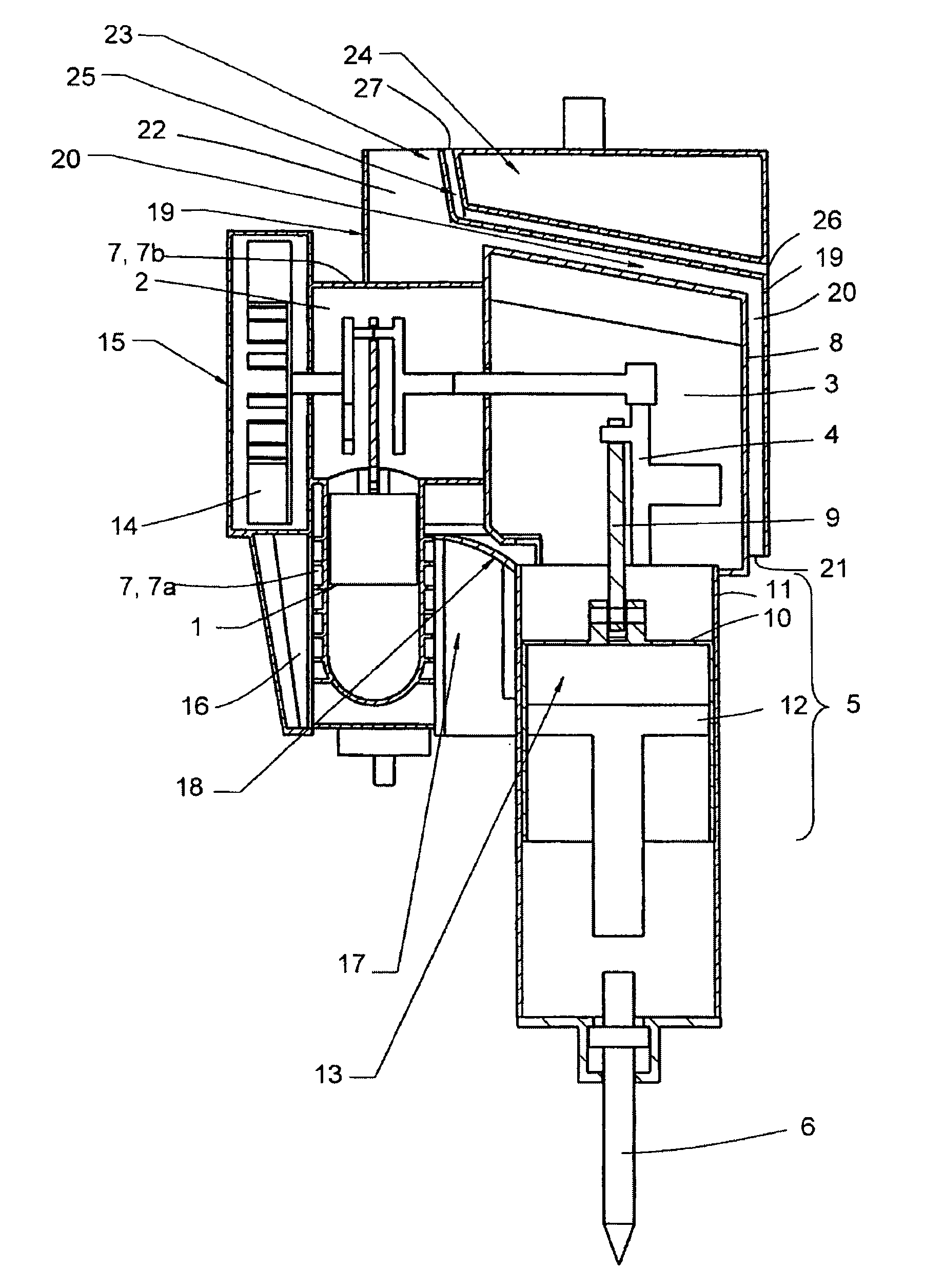

The invention relates to a percussion tool having an internal combustion engine and a hammer mechanism that can be driven by the internal combustion engine by means of a transmission. A part of the engine housing, the transmission housing, or the impact hammer mechanism housing is enclosed by a cover. The cover is spaced at a distance from the remainder of the machine, so that a gap is present between the cover and the remainder of the machine. Cooling air can flow into the gap at the lower face of the cover and flow back out via a flue and an opening. The components beneath the cover are thereby effectively cooled, even without an additional cooling air blower.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- B25D Class
- 98 Applications Filed
- 82 Patents Issued To-Date
- 83.68 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B25D Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 9, 2027 |
