Substrate processing system and substrate transferring method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 2, 2016
Grant Date -
Feb 28, 2013
app pub date -
Feb 17, 2011
filing date -
Feb 19, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

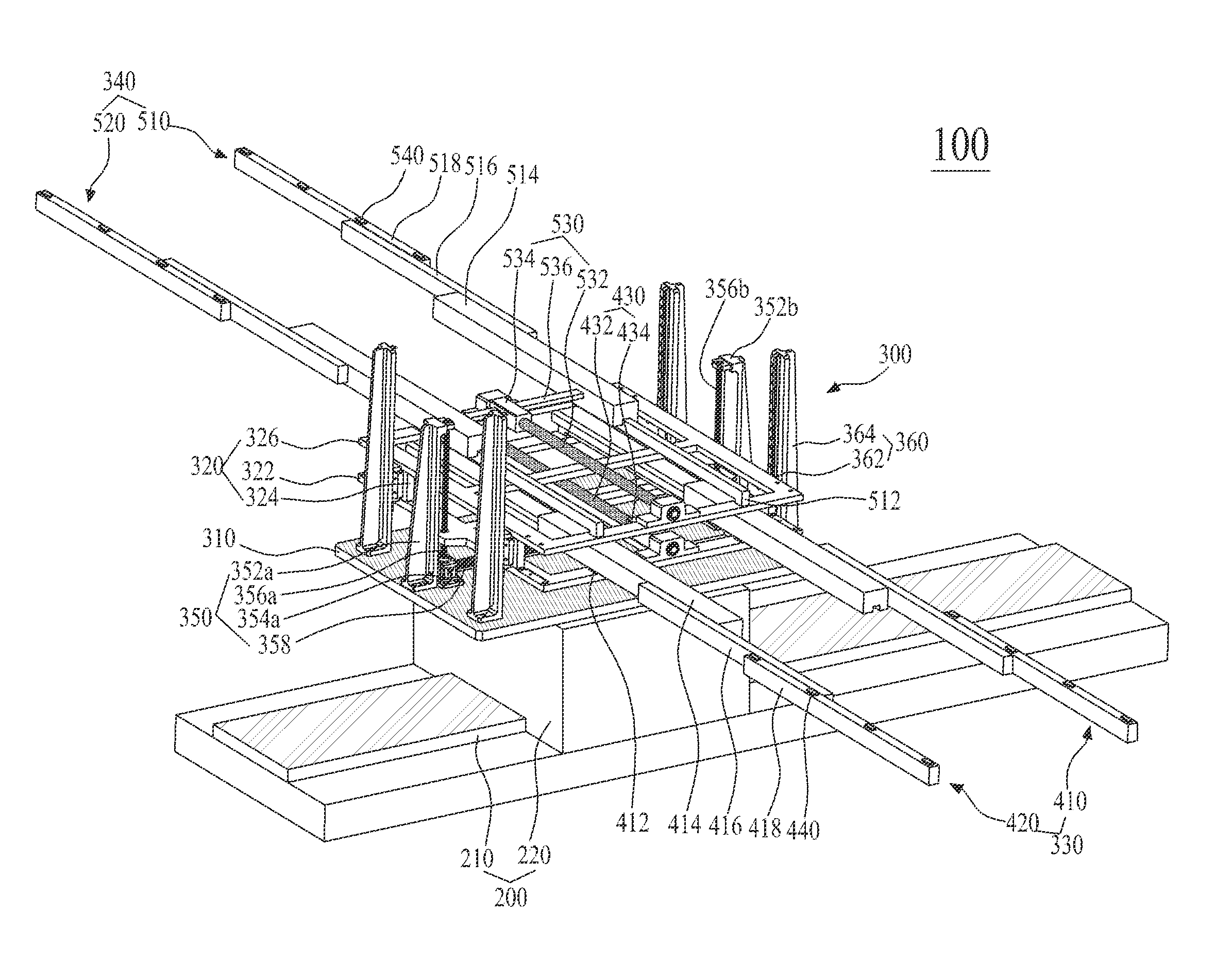

A substrate processing system and substrate transferring method is capable of improving substrate-transferring efficiency by transferring a substrate bi-directionally through a substrate transferring device between two rows of processing chambers, and transferring the substrate to a precise position by rotating the substrate transferring device. The processing system includes a transfer chamber, a bi-directional substrate transferring device; and processing chambers which apply a semiconductor-manufacturing process to the substrate. The processing chambers are linearly arranged along two confronting rows, and the transfer chamber is between the two rows of processing chambers. The substrate transferring device includes a moving unit inside the transfer chamber; a bi-directional substrate transferring unit in the moving unit, that transfers the substrate to the processing chamber through a bi-directional sliding movement; and a rotating unit between the moving unit and the bi-directional substrate transferring unit, that rotates the bi-directional substrate transferring unit at a predetermined angle.
First Claim
Family
International Classification(s)
- 2011 Application Filing Year
- H01L Class
- 19146 Applications Filed
- 15997 Patents Issued To-Date
- 83.56 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H01L Class
- 13.47 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 2, 2027 |
