Apparatus and method for the insertion of films in tablet presses
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 2, 2016
Grant Date -
May 7, 2015
app pub date -
May 16, 2014
filing date -
May 16, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

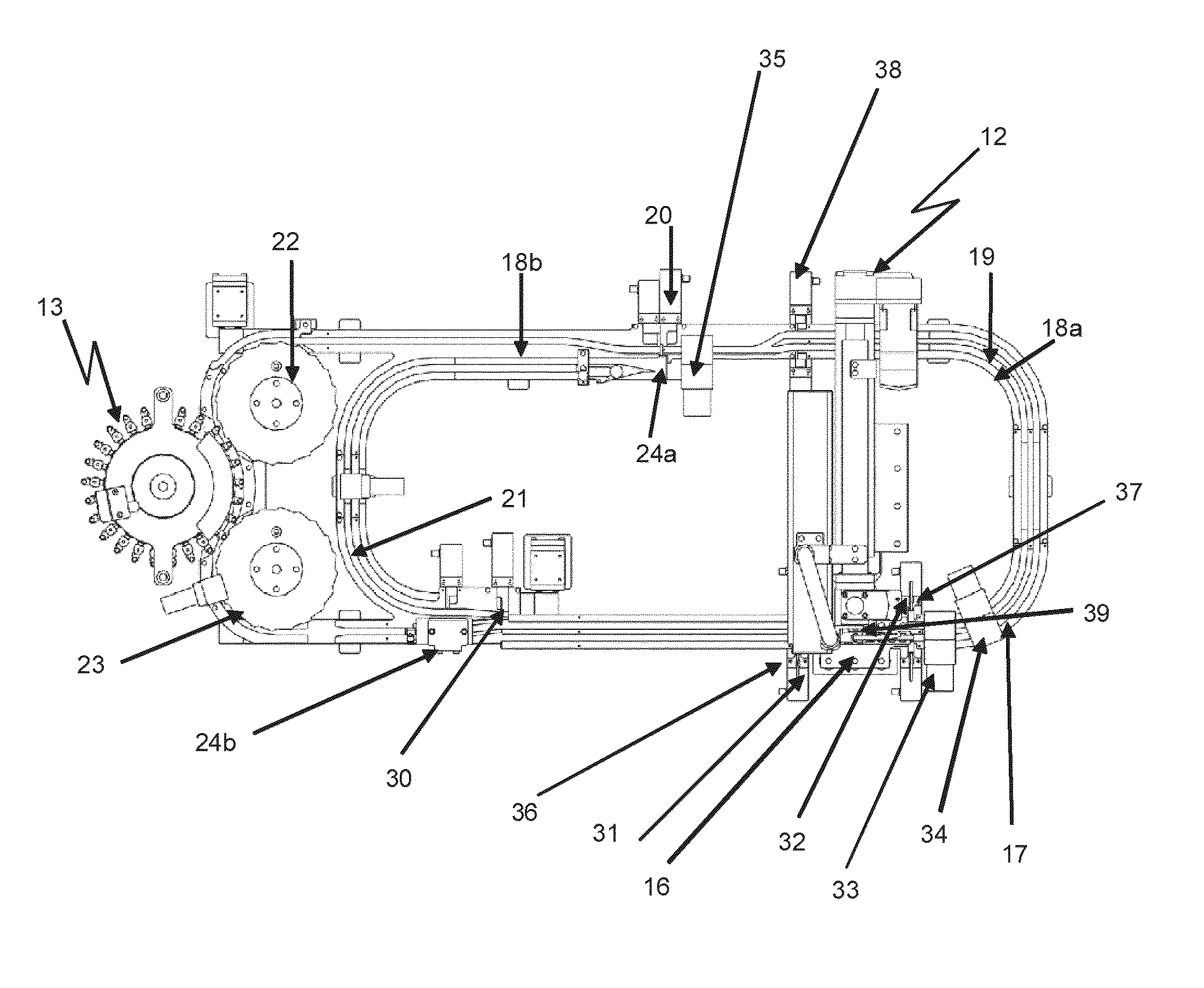

The invention relates to a device for transferring, depositing and positioning films that are used as cores in coating-core tablets, in matrices of tablet presses, said device comprising at least three modules, a. module 1 (11) comprising at least one storage unit that contains the films, and/or at least one supply unit that supplies the films for transfer by a second module, b. module 2 (12) comprising at least one transfer unit, at least one conveyor belt (17) and at least one intake wheel (22), c. module 3 (13) comprising at least one controllable vacuum head (25) which comprises a removal device that removes the films from the carriers (28) of module 2 (12) using a vacuum and deposits them in the matrices of the tablet press (14).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B30B Class
- 181 Applications Filed
- 159 Patents Issued To-Date
- 87.85 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B30B Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 2, 2027 |
