Machine tools and methods of operation thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 2, 2016
Grant Date -
Nov 1, 2012
app pub date -
Dec 20, 2010
filing date -
Dec 22, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

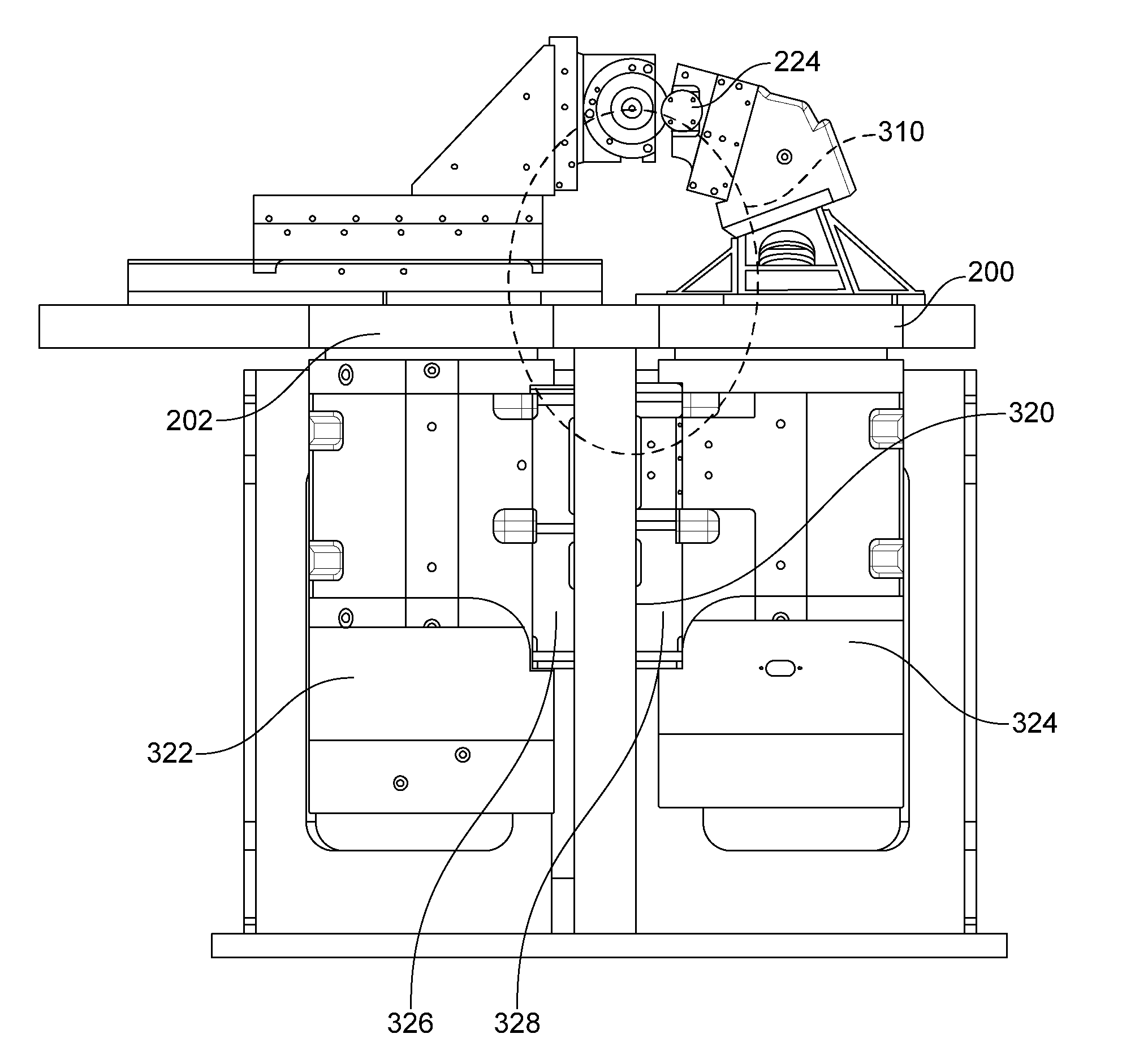

A machine tool is provided which comprises a machine base; a first support provided on a first rotational machine axis, the first rotational axis being mounted on the base in a fixed position relative to the base; a second support provided on a second rotational machine axis, the second rotational axis being mounted on the base in a fixed position relative to the base, wherein the axis of rotation of the second rotational axis is parallel to and spaced laterally from the axis of rotation of the first rotational axis. A mount is carried by a support arm on the second support, with the support arm being moveable relative to the second support about a rotary axis. A control arrangement is operable to control the orientation of the first support relative to the axis of rotation of the first rotational axis, and the orientation of the mount relative to the axis of rotation of the second rotational axis and its rotational position about the rotary axis, so as to govern the position and orientation of the first support and the mount relative to each other. Combination of motion about three rotational axes in this way facilitates versatile and accurate control of the relative orientations of the first support and the mount on the second support. The machine base may include a central support located between the machine axes, with the machine axes mounted onto opposite sides of the support.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- B24B Class
- 467 Applications Filed
- 325 Patents Issued To-Date
- 69.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B24B Class
- 20.18 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 2, 2027 |
