Channel steering for implementing coexistence of multiple homogeneous radios
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
Jan 26, 2016
Issued Date -
N/A
app pub date -
Nov 25, 2013
filing date -
Nov 25, 2013
priority date (Note) -
Withdrawn
status (Latency Note)
Importance
Abstract

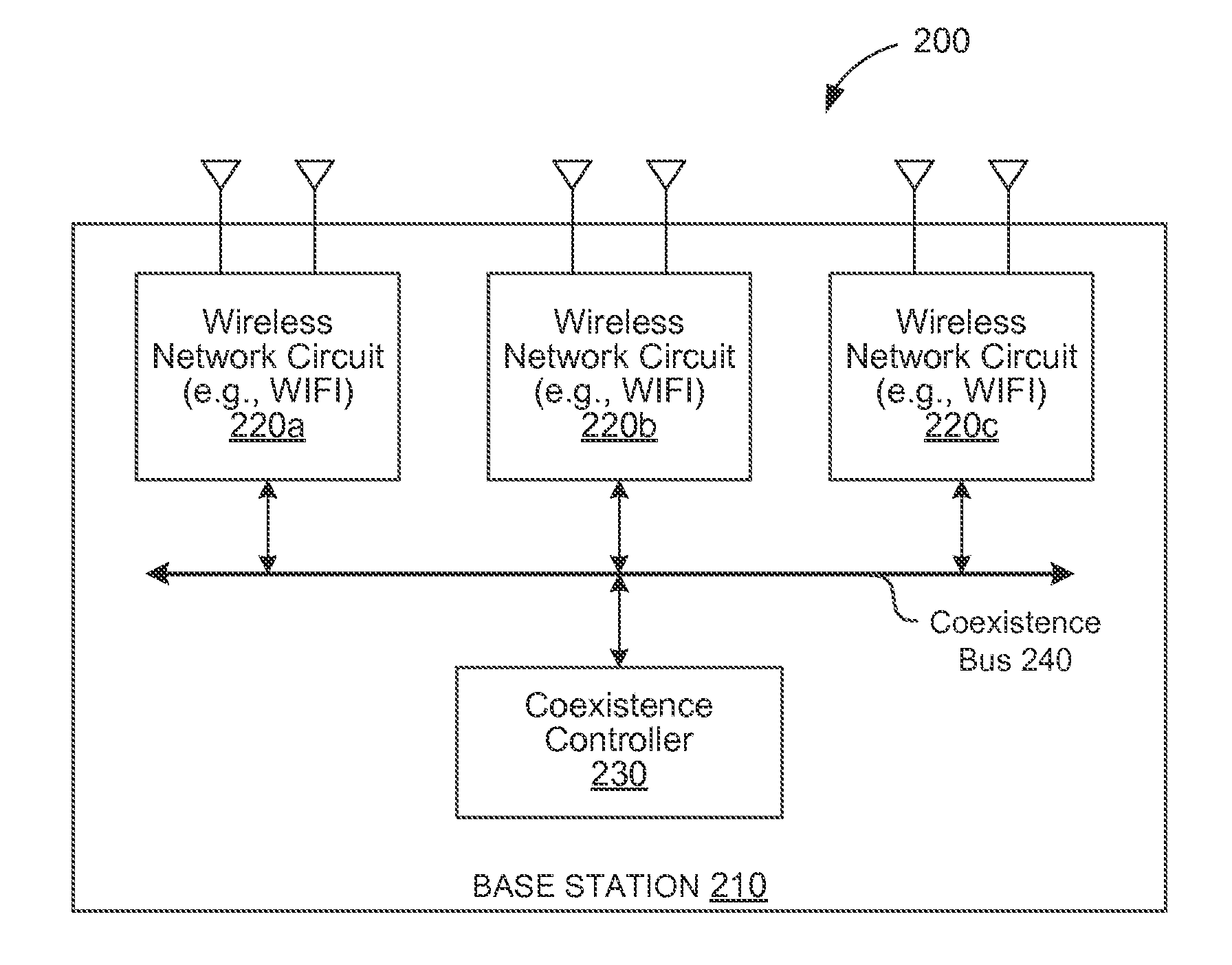

Techniques are disclosed for controlling, in a network device, multiple radio circuits operating in a same or similar frequency band and in close physical proximity. In some embodiments, the radio circuits operate on the same network protocol. The network device can include a coexistence controller coupled to the network circuits. According to some embodiments, the network circuits are each assigned a priority, and the coexistence controller can control operations between the network circuits by selectively adjusting one or more transmission operating parameters of a respective network circuit based on a plurality of operating criteria, which include each network circuit's priority. Among other benefits, the embodiments disclosed herein can increase wireless network bandwidth and reduce mobile device power consumption by providing coordination among the radio circuits so that the transmitting and receiving operations are performed in a way that they do not interfere with their respective antennas.
