Brake lever reach adjustment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 26, 2016
Grant Date -
Dec 10, 2015
app pub date -
Jun 10, 2014
filing date -
Jun 10, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

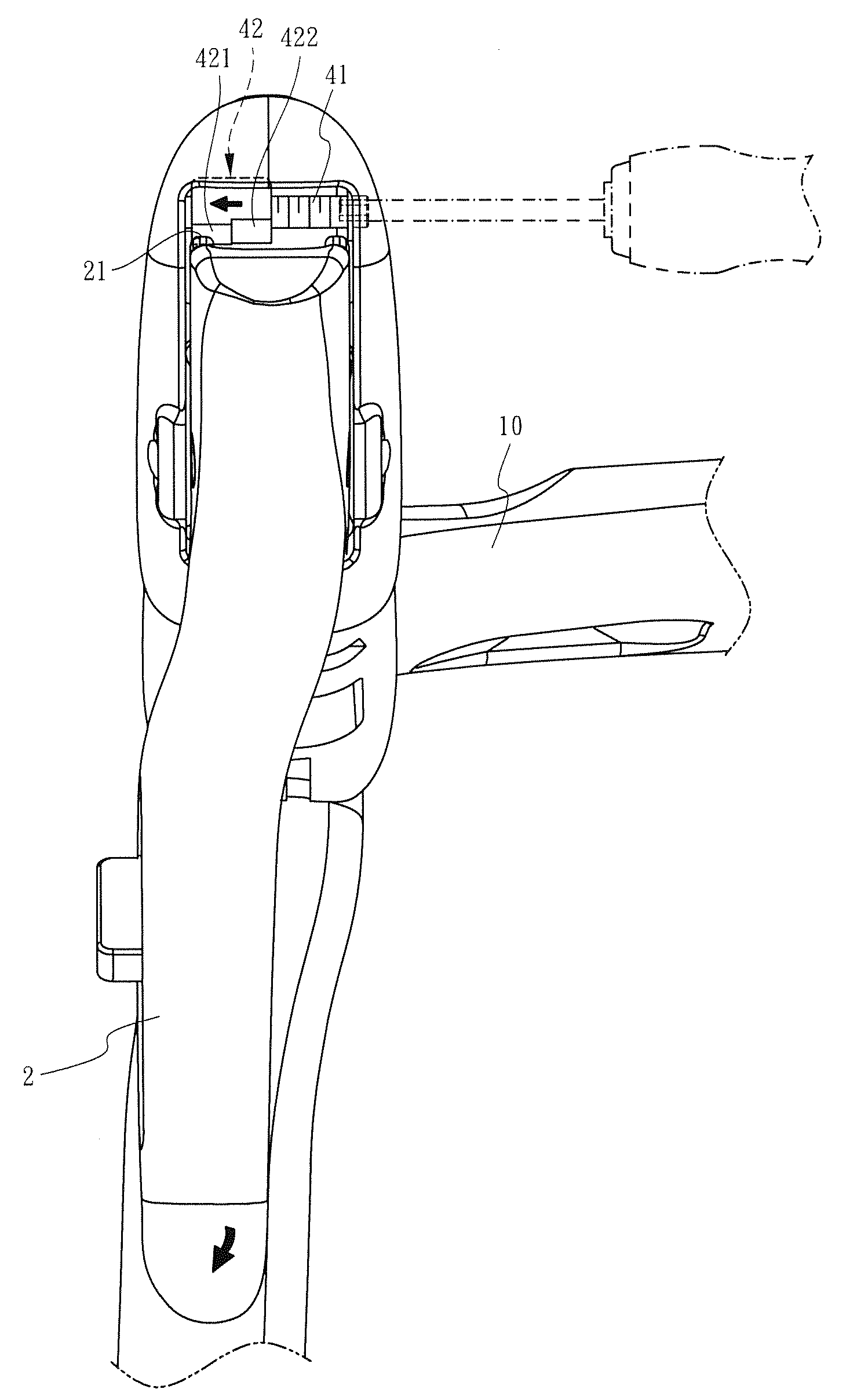

A brake lever reach adjustment includes a bracket, a brake lever and a reach adjusting assembly. The bracket to be mounted to a handlebar has a cavity therein. The brake lever is pivotally connected to the bracket, and defines two opposite wings. The reach adjusting assembly is disposed in the cavity of the bracket. The reach adjusting assembly has a lead screw and a movable block mounted about the lead screw. Specifically, the movable block selectively supports one of the two wings or is positioned between the two wings to adjust a position of the brake lever relative to the handlebar.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2014 Application Filing Year
- B62L Class
- 67 Applications Filed
- 54 Patents Issued To-Date
- 80.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B62L Class
- 28.57 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 26, 2027 |
