Implant extraction tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 26, 2016
Grant Date -
Jul 14, 2011
app pub date -
Jun 18, 2009
filing date -
Jun 20, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

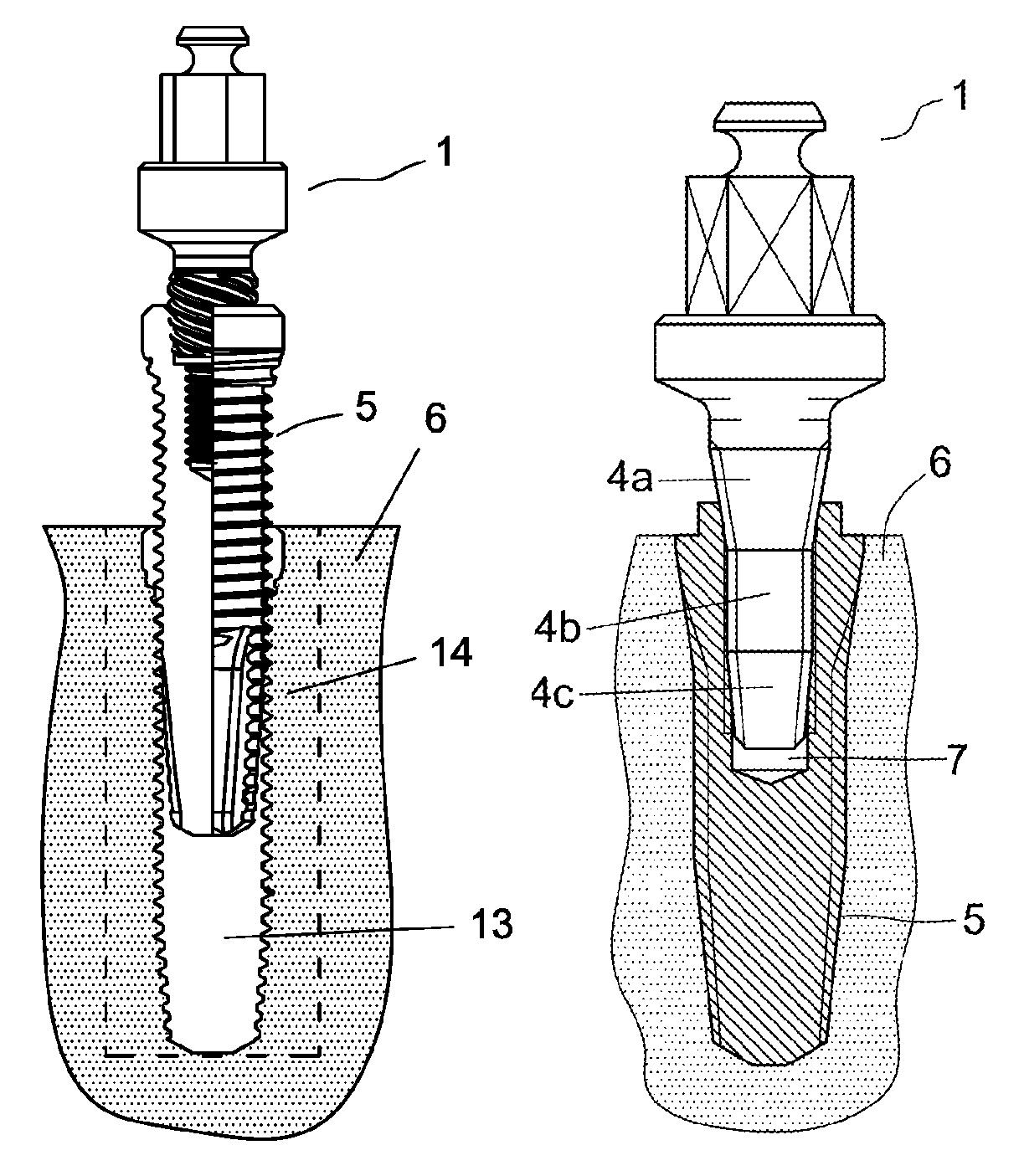

Implant removal tool (1) which allows removing an implant (5) from a patient's bone (6). The implant removal tool (1) comprises a head (2), to which a torque-providing system is attached, and a threaded body (4) preferably with a decreasing diameter. The threaded body (4) preferably has a thread to the left and is intended to be threaded into the hole (7) of the implant (5). The extraction of the implant (5) is relatively simple to carry out, removing the implant (5) in an almost clean manner and leaving a very small cavity (13) in the patient's bone (6). Therefore, the implant removal tool (1) according to the invention makes the removal of an implant (5) a far less traumatic procedure for the patient.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A61F Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 26, 2027 |
