Plasma-catalyzed, thermally-integrated reformer for fuel cell systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 19, 2016
Issued Date -
N/A
app pub date -
Apr 1, 2014
filing date -
May 8, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

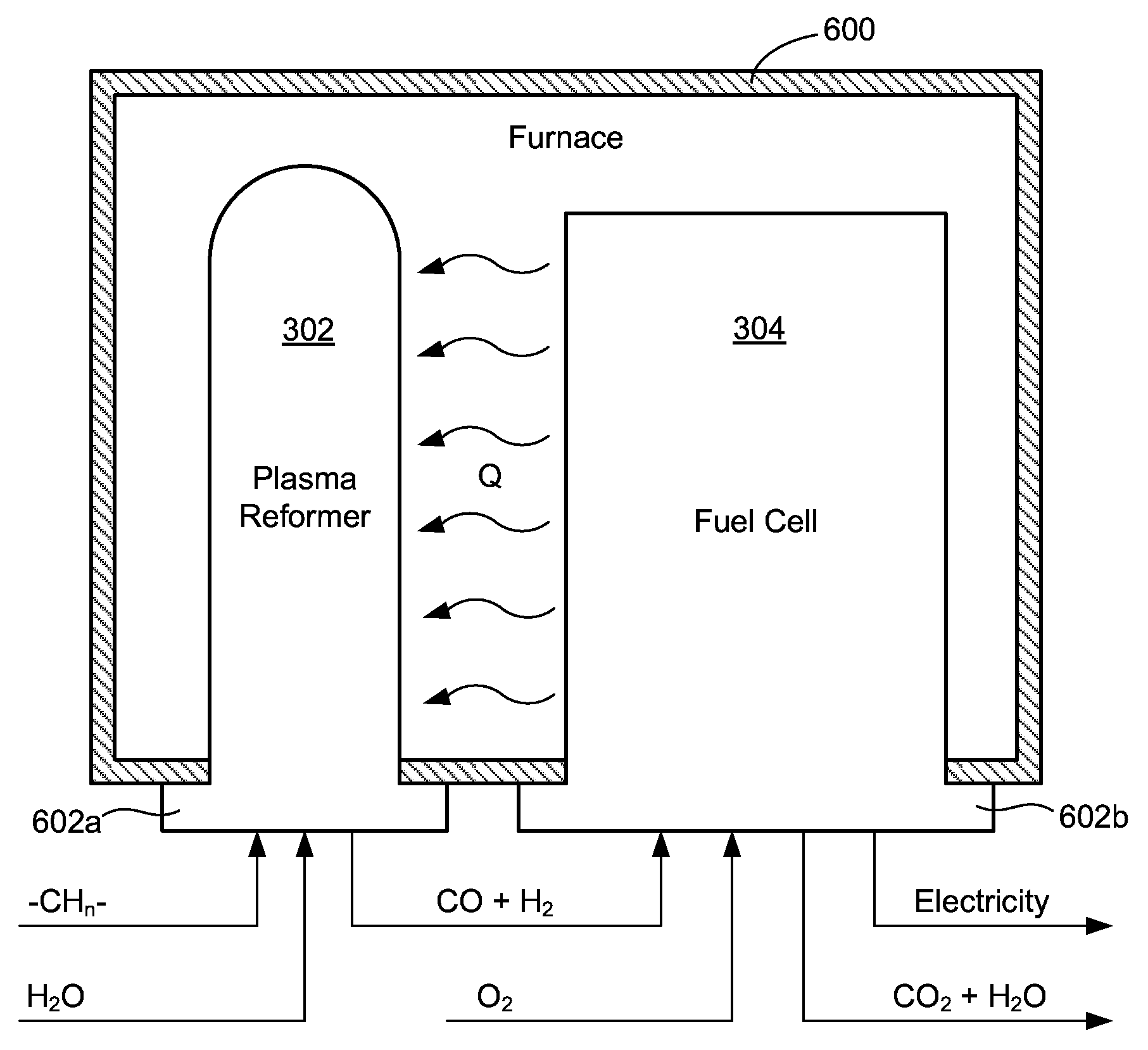

A reformer is disclosed in one embodiment of the invention as including a channel to convey a preheated plurality of reactants containing both a feedstock fuel and an oxidant. A plasma generator is provided to apply an electrical potential to the reactants sufficient to ionize one or more of the reactants. These ionized reactants are then conveyed to a reaction zone where they are chemically transformed into synthesis gas containing a mixture of hydrogen and carbon monoxide. A heat transfer mechanism is used to transfer heat from an external heat source to the reformer to provide the heat of reformation.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- C01B Class
- 1554 Applications Filed
- 1323 Patents Issued To-Date
- 85.14 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C01B Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 19, 2027 |
