Tamping pick
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 19, 2016
Grant Date -
Dec 12, 2013
app pub date -
Mar 1, 2012
filing date -
Mar 28, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

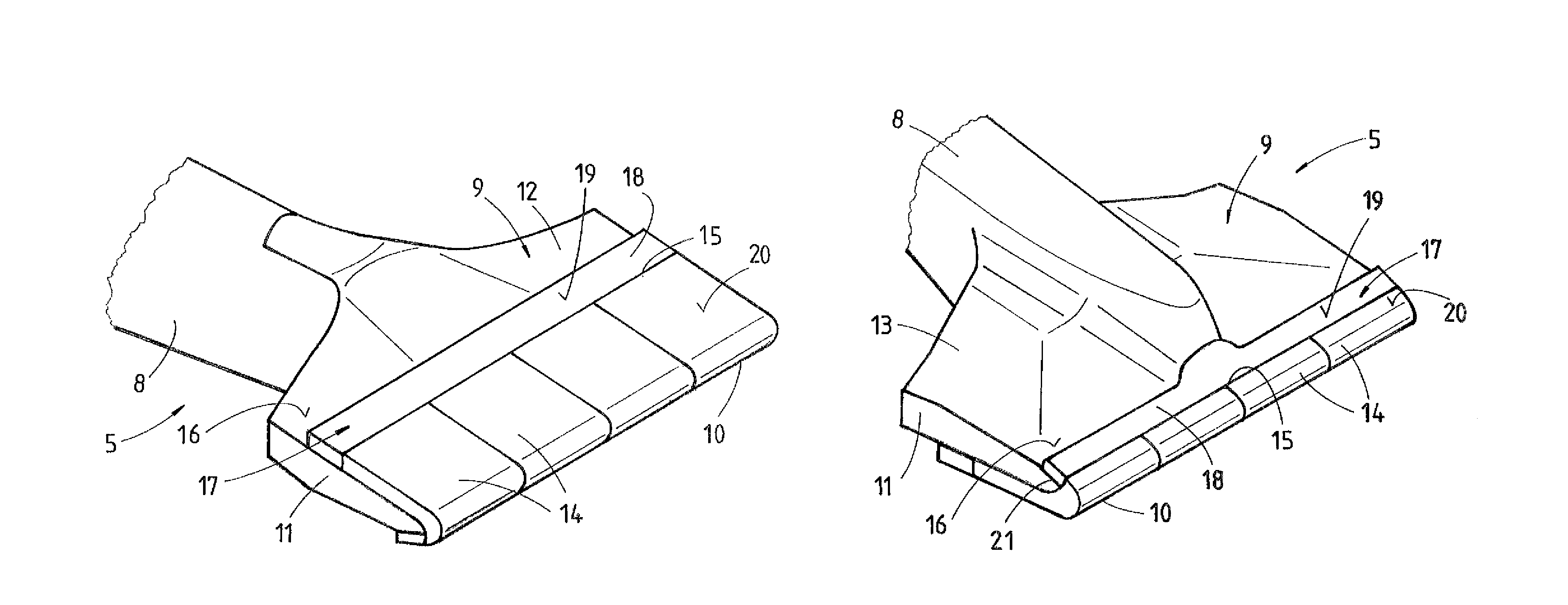

A tamping tine (5) for a tamping machine consists of a tine shaft (8) and, positioned at the lower end thereof, a tine pad (9) having a pad bottom edge (10) spaced from the tine shaft (8). The tine pad (9) has pad side surfaces (11), spaced from one another in the direction of the pad bottom edge (10) and extending perpendicularly to the same, each of which connect a pad front side (12) to a pad rear side of the tine pad (9). Hardened metal plates (14) for increasing the abrasion resistance are fastened to the tine pad (9). The hardened metal plates (14) situated side by side along the pad bottom edge (10) form a common boundary line (15) both on the pad front side (12) as well as on the pad rear side. Armoring (17) in the shape of a build-up welding, standing out from a plane (16) of the pad front- or -rear side, is provided adjoining each boundary line (15).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- E01B Class
- 104 Applications Filed
- 89 Patents Issued To-Date
- 85.58 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- E01B Class
- 33.77 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 19, 2027 |
