Spindle/tool combination for a machine tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 19, 2016
Grant Date -
Jun 13, 2013
app pub date -
Feb 8, 2013
filing date -
Aug 9, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

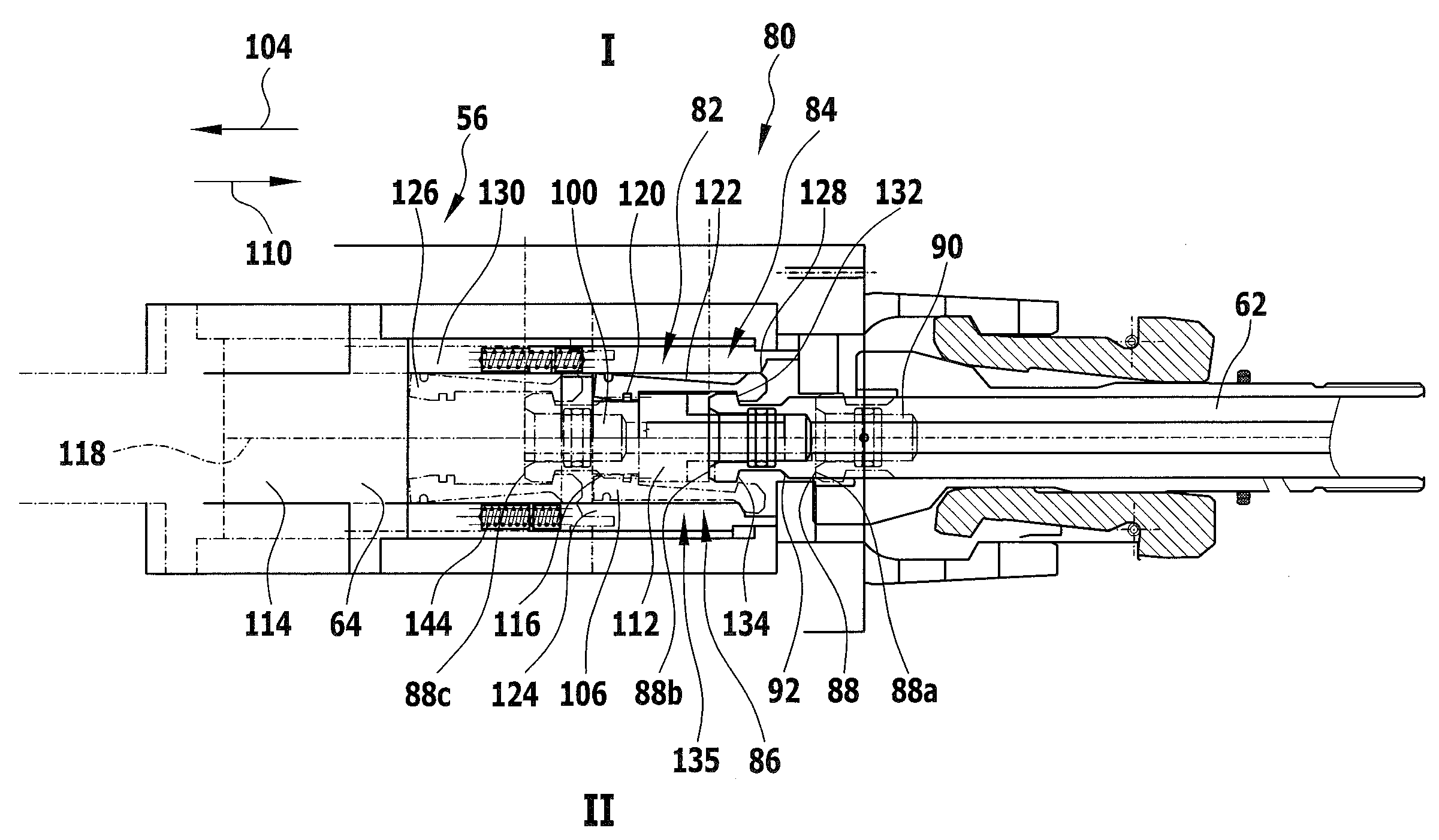

A spindle/tool combination for a machine tool is provided, including a tool, a spindle, on which the tool can be releasably fixed and by means of which the tool can be rotated, wherein the tool has at least one linearly movable rod and the spindle comprises a loading device, which acts on the at least one linearly movable rod of the tool, and a pull/push coupling device, by means of which the at least one rod of the tool can be coupled to the loading device, the at least one rod being actuable by means of the loading device by pushing and pulling when coupled, wherein the pull/push coupling device comprises a clamping jaw and the clamping jaw is arranged in the tool.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B23Q Class
- 473 Applications Filed
- 407 Patents Issued To-Date
- 86.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B23Q Class
- 0 % this patent is cited more than
- 9 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 19, 2027 |
